Custom Cut Gorilla Glass Anti Glare Cover Glass

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Cover glass for touch screens

Appearance

Flat Tempered

Standard

GB/T 9963-1998

Thickness

0.5-19mm

Technics

Chemical Tempered

Raw Materials

Gorilla/AGC/Dragontail/Panda Glass

Surface Treatment

AG/AF/AR Coating

Hardness

>7H

Transmittance

>91%

Trademark

OEM

Anti-Glare (AG) Glass Overview

AG glass, also known as anti-glare glass, features a surface treated on one or both sides to form fine concave and convex particles. This achieves a multi-angle diffuse reflection effect, reducing the incident light reflection rate from 8% to below 2%, eliminating glare problems and improving visual comfort.

Main applications include vehicle displays, TV splicing walls, LCD displays, touch screens, industrial instruments, and picture frame displays.

Types of AG Processes

Spraying AG: Spraying a layer of optical astigmatism particles on the glass surface to achieve anti-reflection and anti-glare effects.
AG Coating: Utilizing atomization coating technology to cover the surface with materials that selectively combine, absorb, and deflect light.
Acid Etched AG: A chemical reaction process using a mixed acid (HF acid) that transforms the glass surface into a matte diffuse surface. This is the most common process in deep processing.

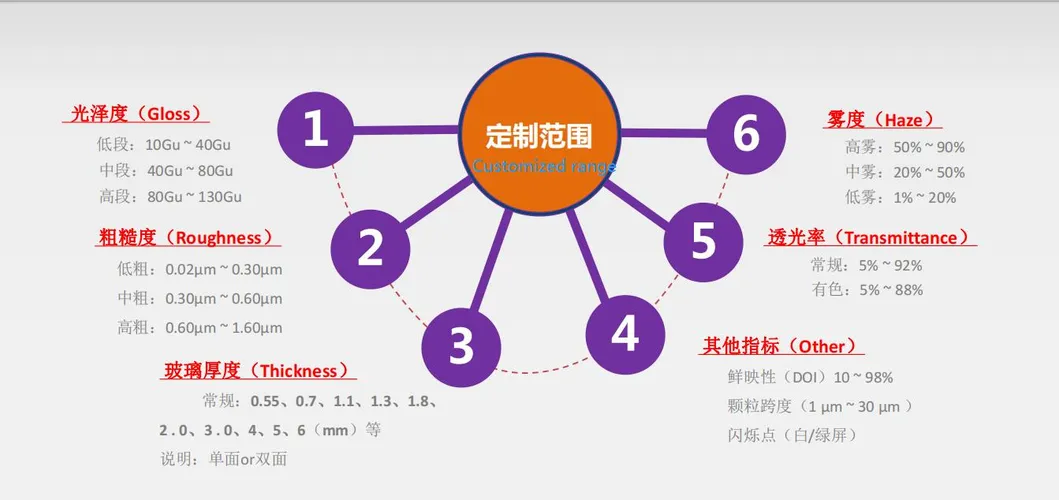

Parameters of AG Glass

Single side AG coating
Gloss	35±10	50±10	70±10	95±10	110±10
Roughness	0.18	0.15	0.12	0.09	0.07
Haze	17	11	4.7	3	2
Transmittance	>89%	>89%	>89%	>89%	>89%

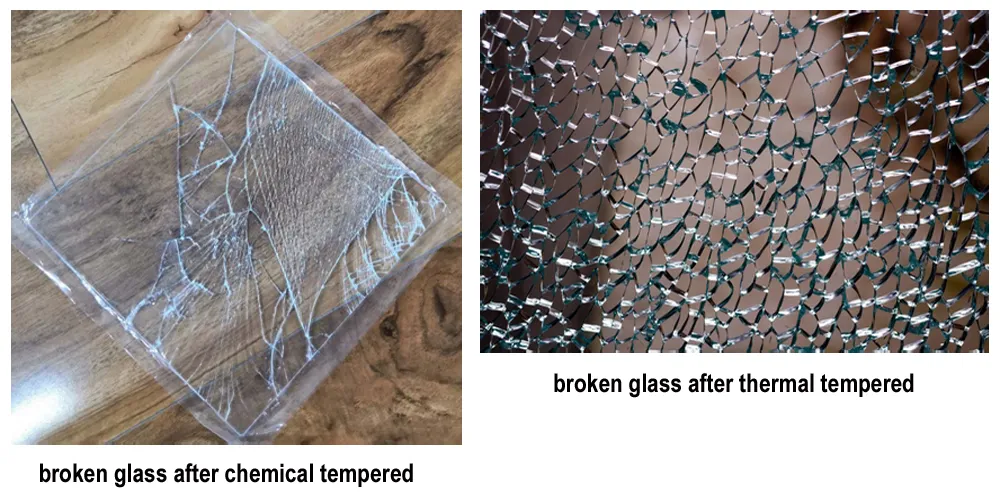

Tempered Glass Attributes

Safety Performance: Breaks into small, harmless fragments with obtuse angles.
Enhanced Strength: Four times stronger than ordinary glass.
Heat Stability: Can withstand temperature changes of approximately 200°C.
Impact Resistance: Excellent anti-curve and anti-impact intensity.

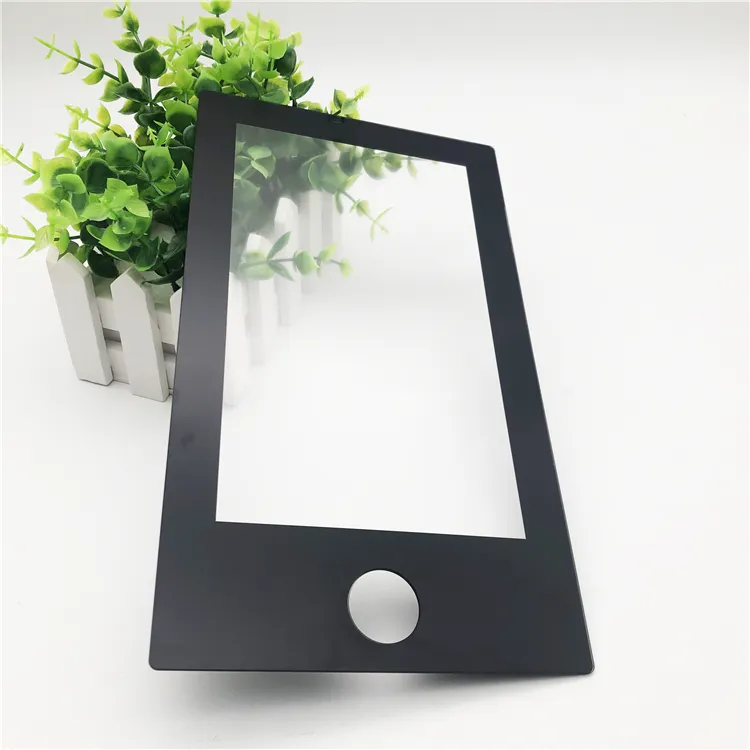

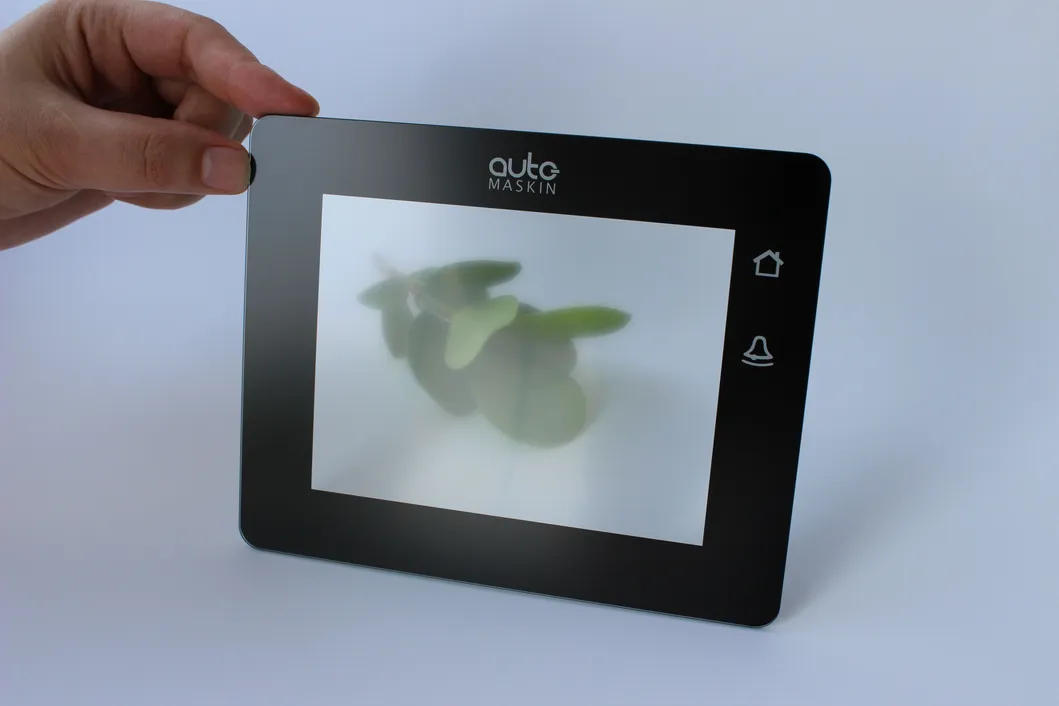

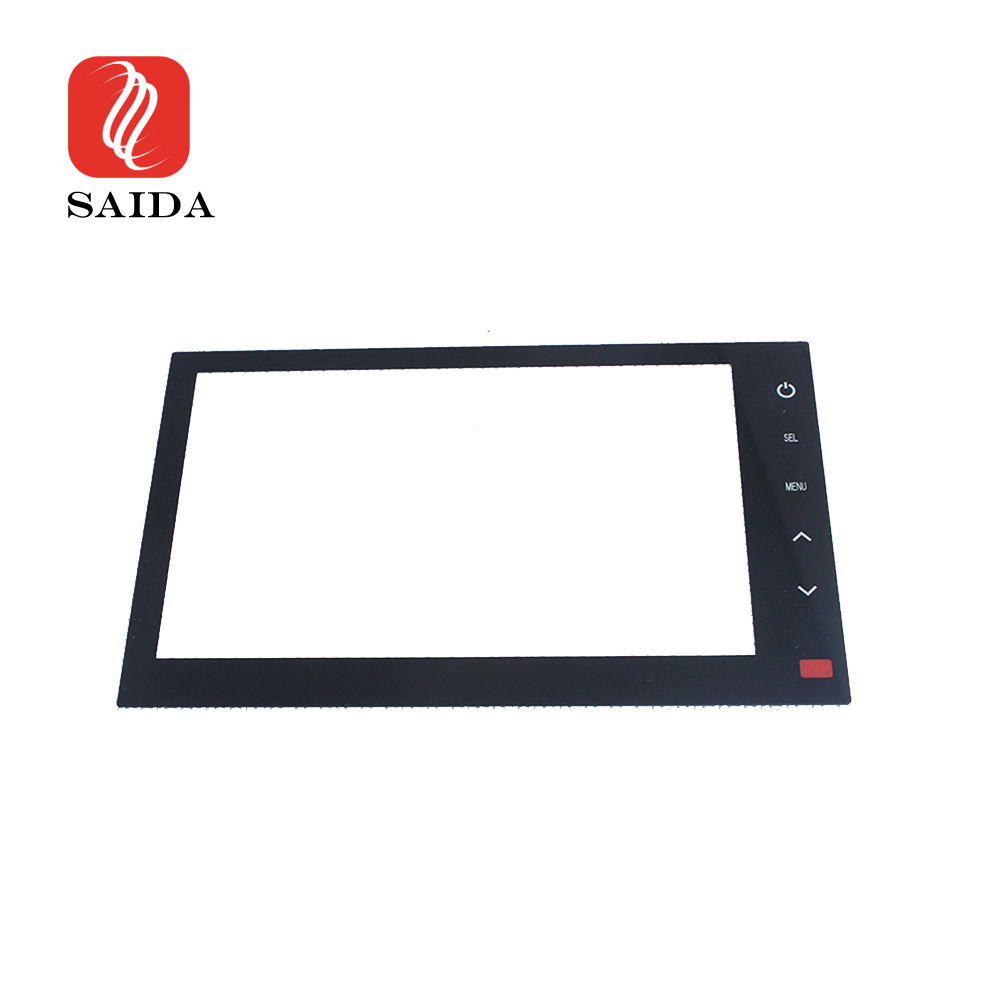

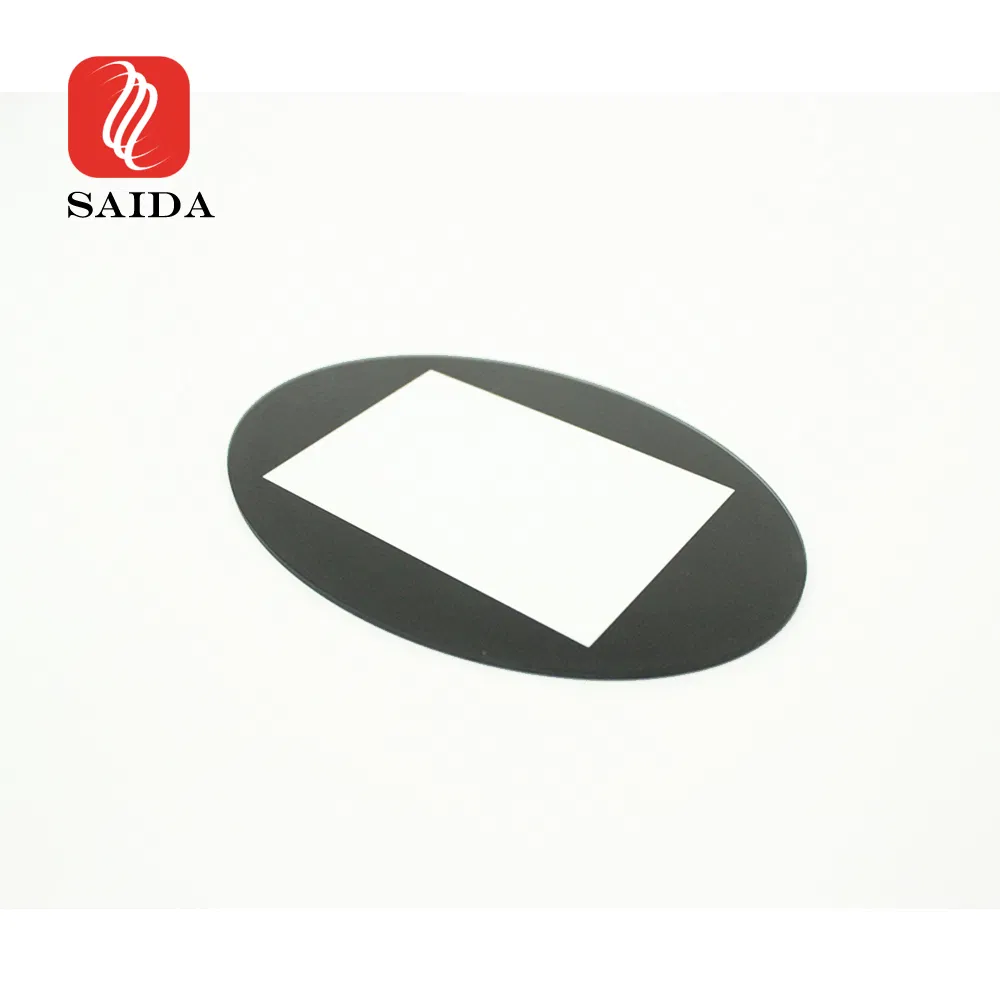

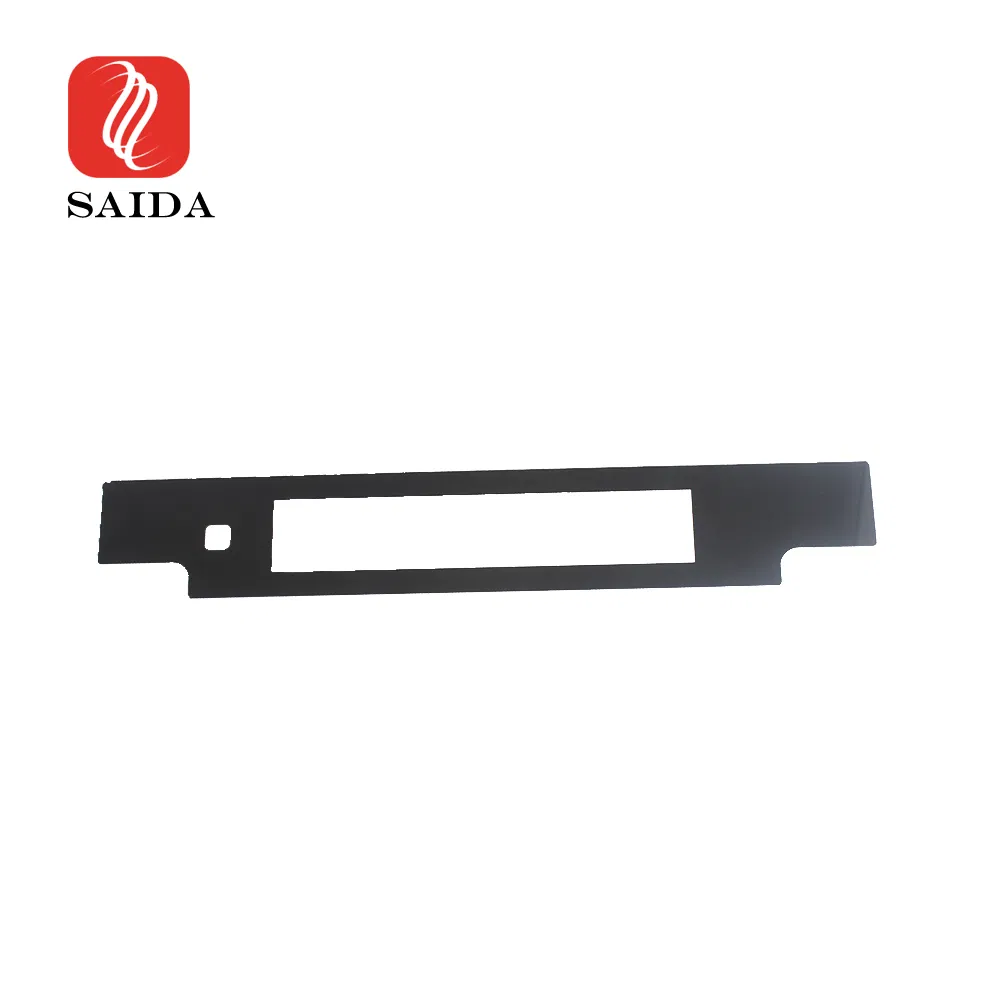

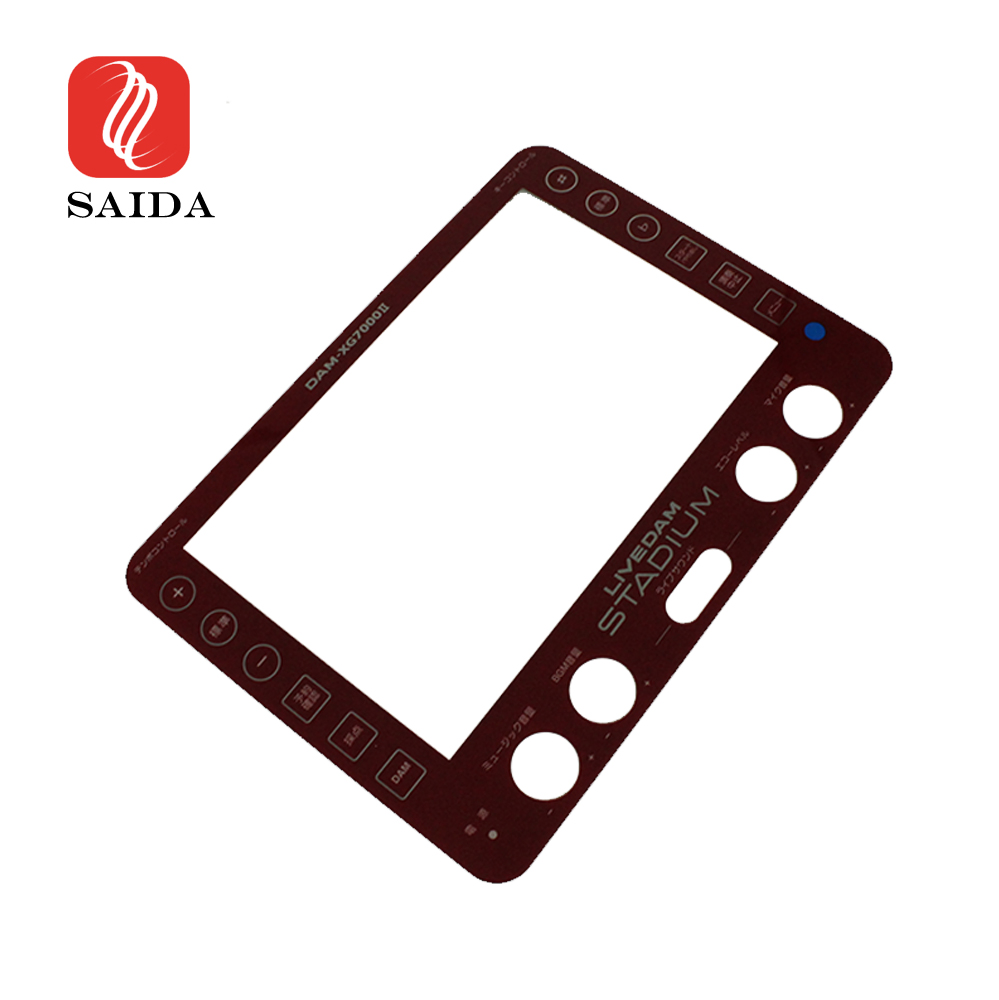

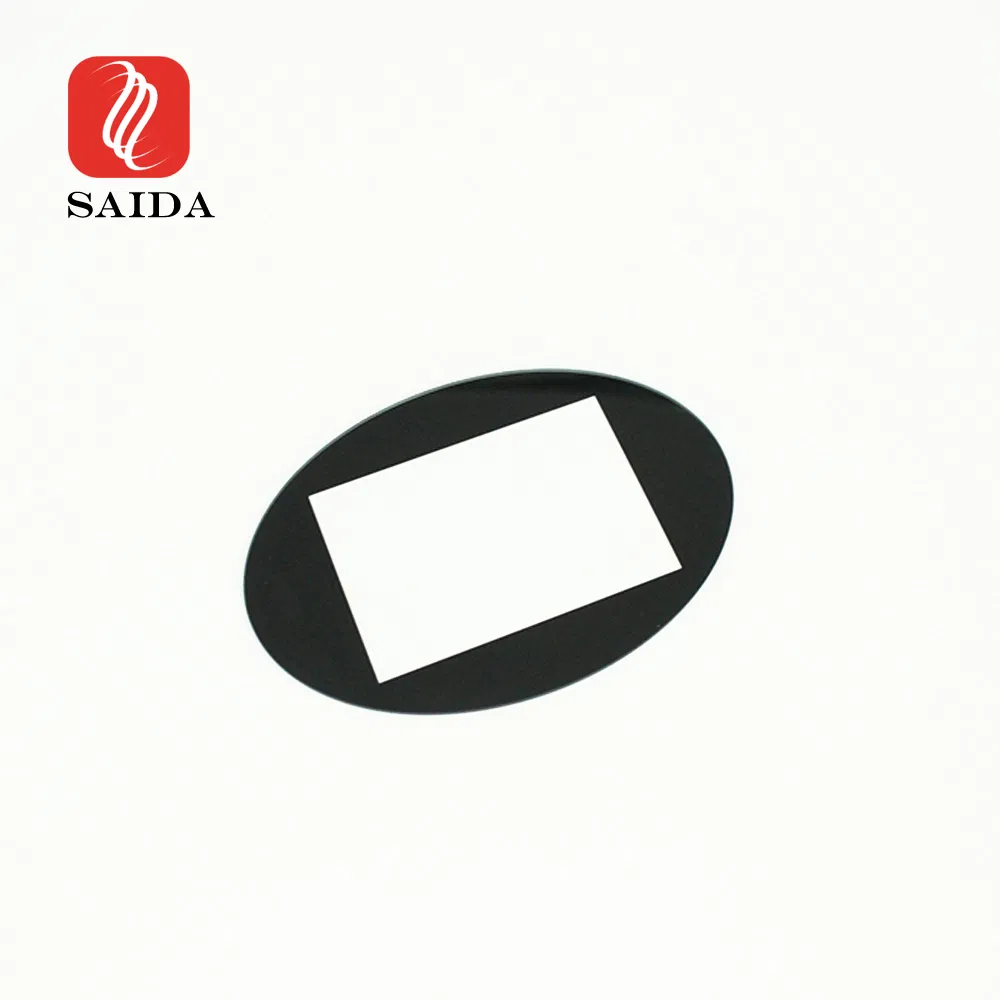

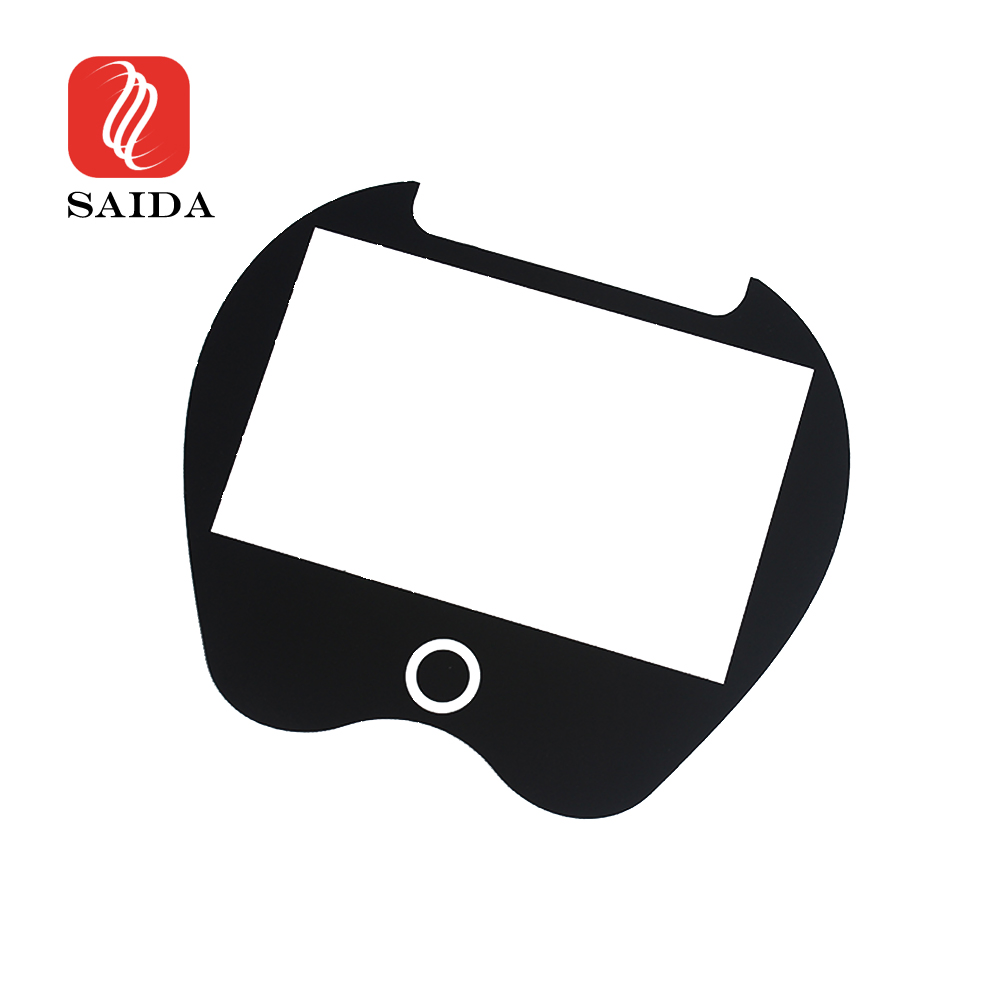

Product Showcase

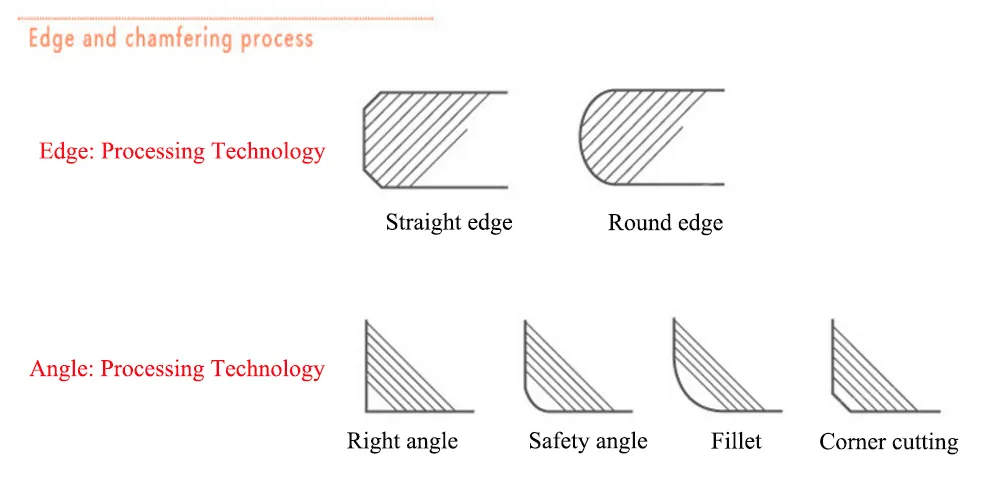

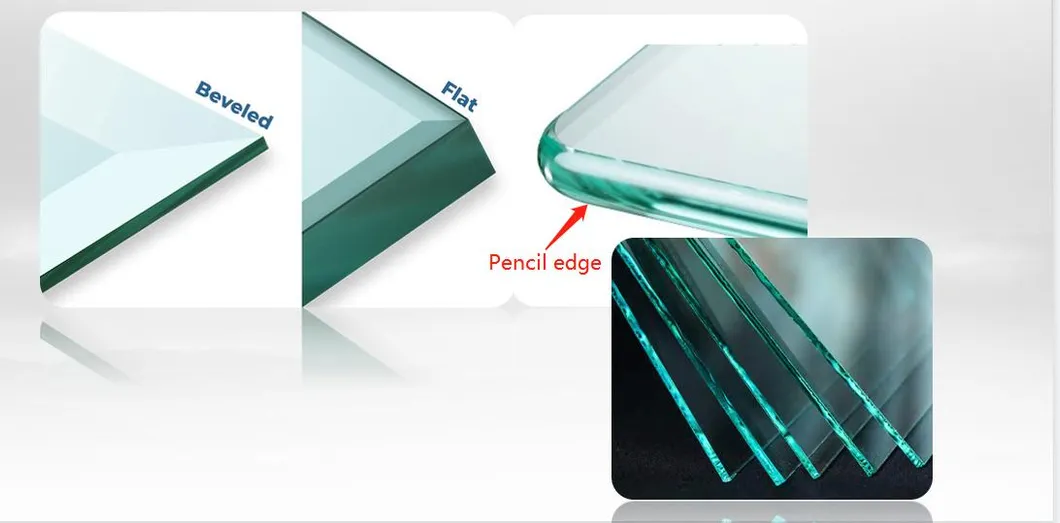

Edge and Chamfering Process

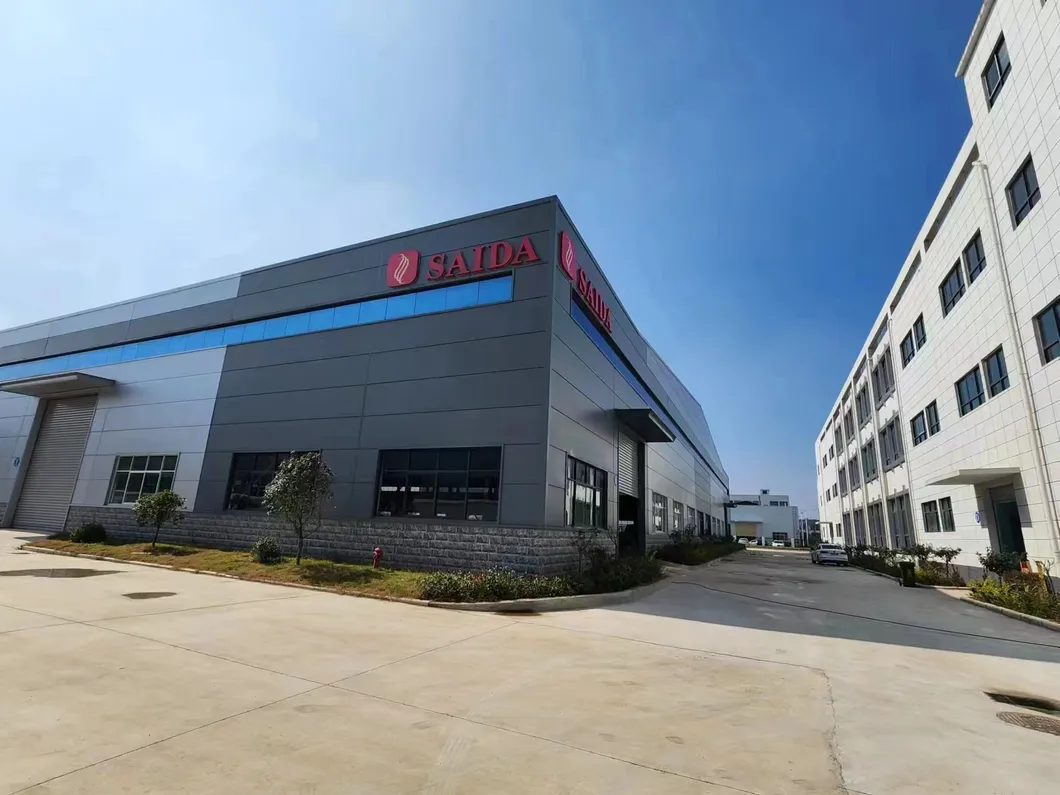

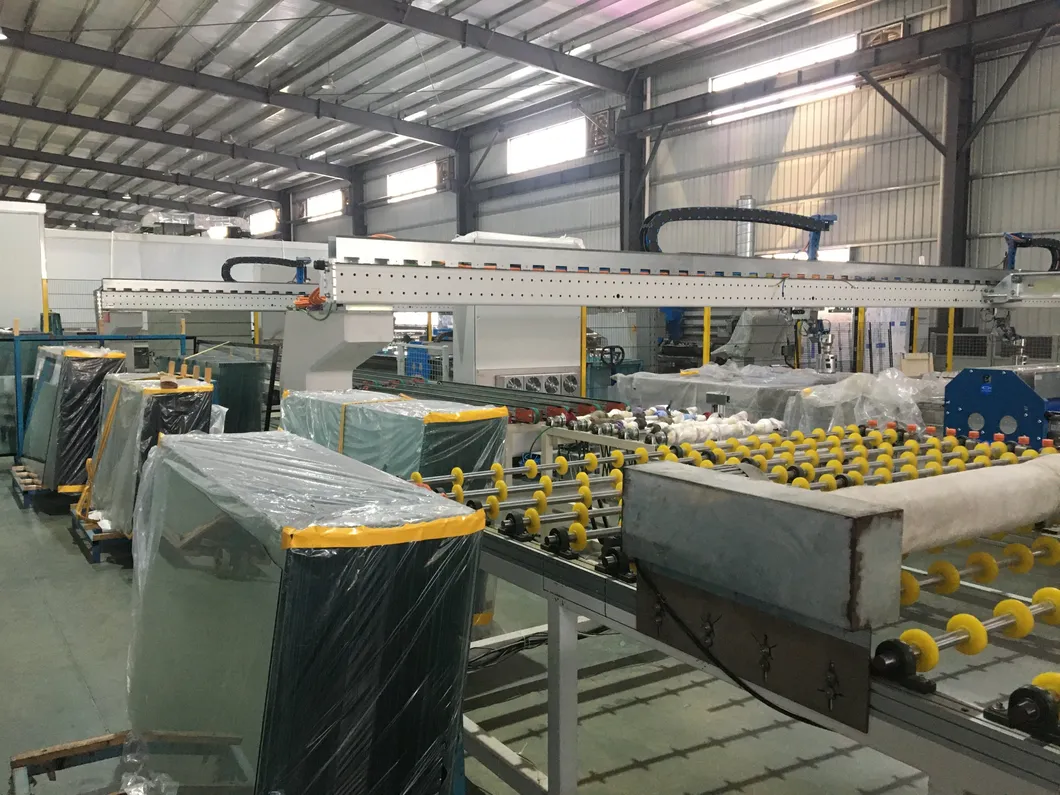

Manufacturing & Packaging

Specialized in the manufacture and export of glass deep-processing for 10 years. Facilities provide high-quality cover glass for touch screens, industrial devices, smart equipment, and home appliances.

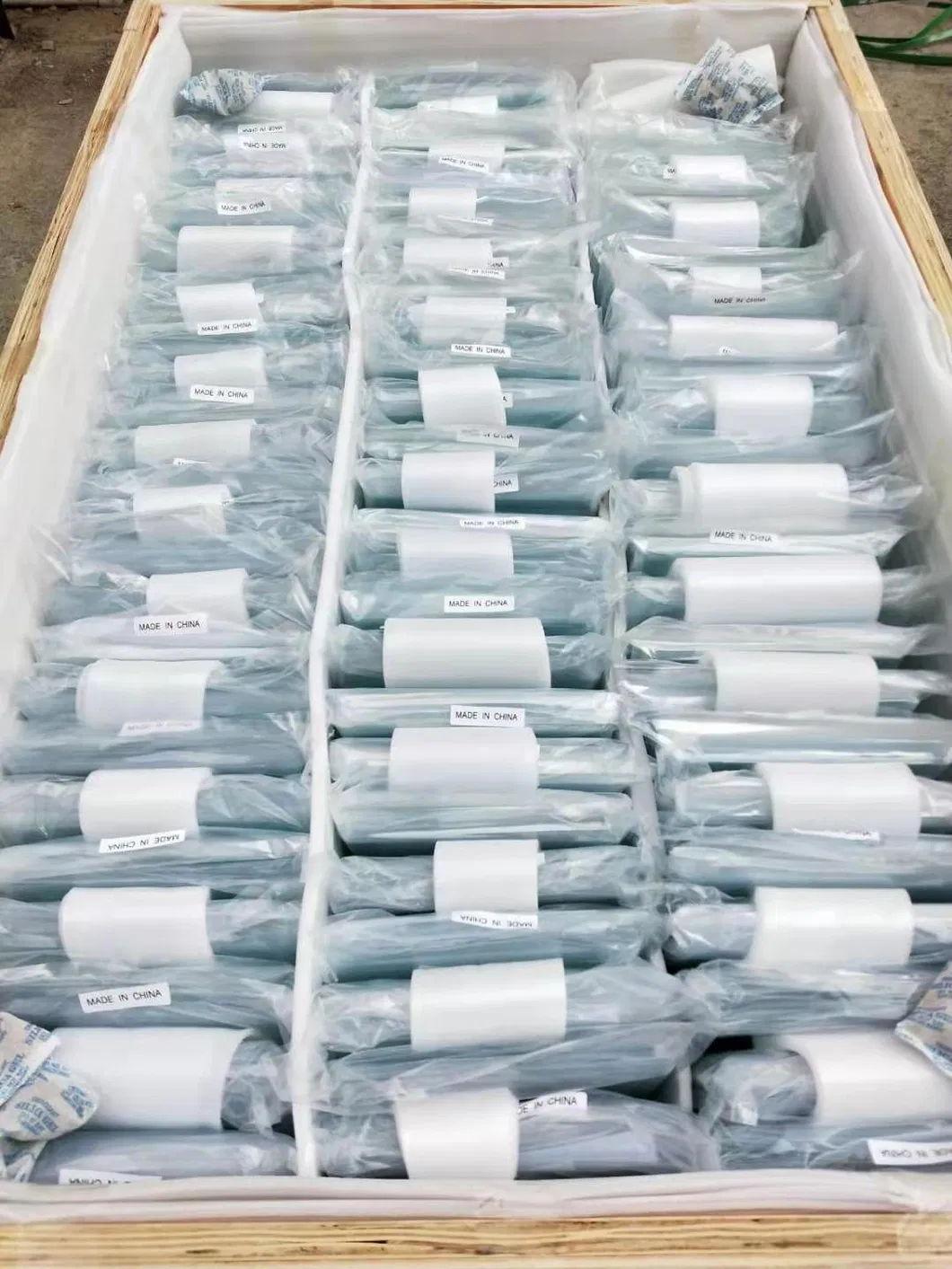

Packaging Details: Each glass unit uses double-sided protective film, packed in craft paper, and secured within a sturdy wooden crate for safe transport.

Frequently Asked Questions

1. What is the primary benefit of Anti-Glare (AG) glass? AG glass reduces light reflection from 8% to below 2%, eliminating glare and significantly improving visual comfort for screen users.

2. How does tempered glass improve safety? When tempered glass breaks, it shatters into small, blunt fragments rather than sharp shards, making it harmless to the human body.

3. What glass raw materials are available? We utilize high-quality brands including Gorilla Glass, AGC, Dragontail, and Panda Glass depending on specific requirements.

4. Can the glass be customized for specific shapes and sizes? Yes, we support square, round, and irregular graphics. Dimensions and thickness are customized according to customer drawings.

5. What surface treatments can be applied? We offer AG (Anti-Glare), AR (Anti-Reflective), and AF (Anti-Fingerprint) coatings to enhance glass functionality.

6. What is the typical lead time for samples? The approximate sample production time is 10 days, allowing for custom design and precision processing.
