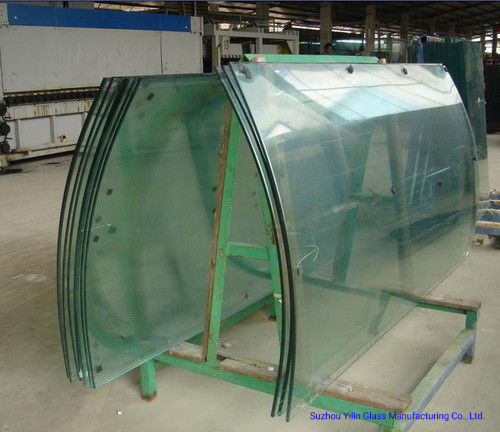

Tempered Insulated Noise-Proof Sandwich Glass Sound Reduction Acoustic Glass Laminated PVB Acoustic Insulation Glass

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
l75
Type
Laminating Glass
Shape
Flat / Curved
Structure
Solid
Layer Type
Bullet-Resistant / Acoustic
Function
Anti Punch, Noise Proof, Safety
Intermediate Film
PVB or SGP
Color
Green, Grey, Blue, Opaque, Clear
Production
Dry Laminated Glass
Capability
2000 Sq.M Per Day
HS Code
70072900

Acoustic & Noise Proof Laminated Glass

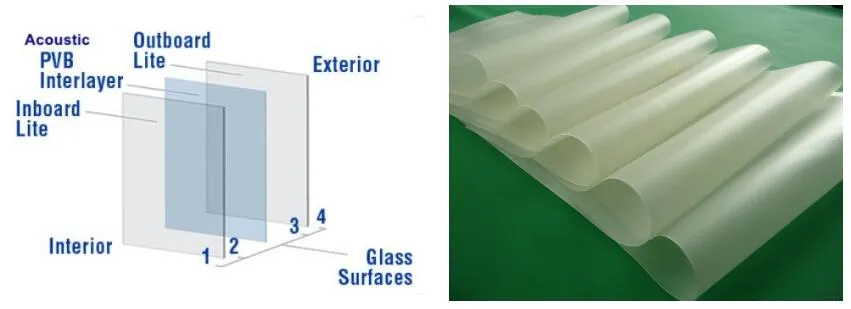

Acoustic Insulation Glass

We utilize specialized PVB acoustic films from leading brands like Kuraray and Trosifol. This monolayer film technology provides outstanding sound protection properties while maintaining all the advantages of conventional safety glass.

Technical Performance: This PVB is designed with acoustic dampening properties, specifically targeting frequencies between 1500 and 5000 Hz, significantly reducing noise transmission compared to standard monolithic glass.

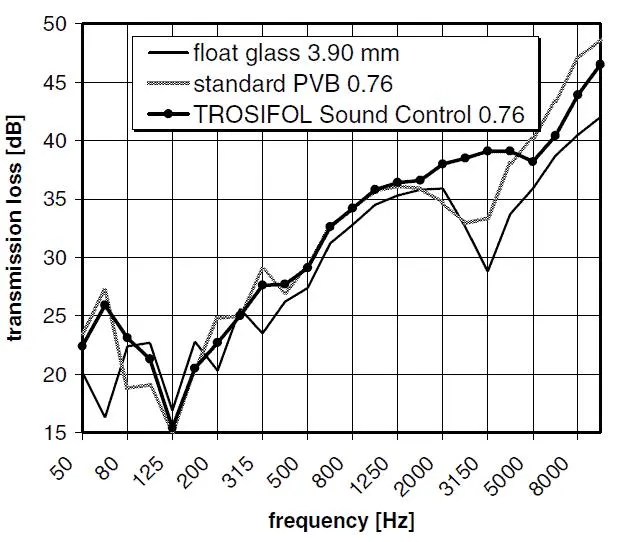

Sound Protection Comparison

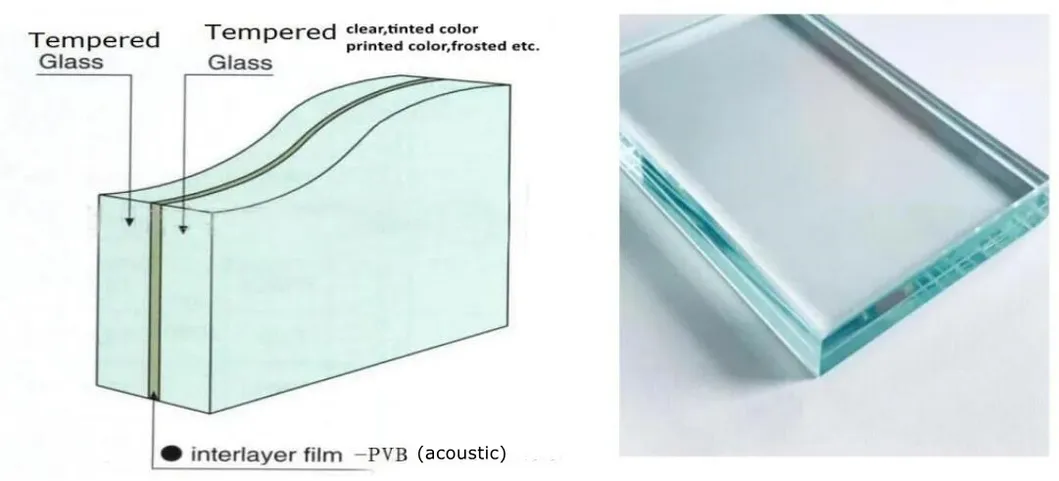

Safety Glass Impact

Detailed Specifications

Feature Details
Glass Thickness3+3, 4+4, 5+5, 6+6, 8+8, 10+10, 12+12, 5+5+12, 6+6+12 etc.
Acoustic PVB0.76mm, 1.14mm, 1.52mm, etc. (Kuraray, Trosifol, Dupont, Sekisui)
Glass ColorClear, Bronze, Grey, Green, Blue, Customized Patterns
Glass TypeRaw Float, Tempered, Reflective, Low-E, Nano Glass, Tinted
Max Size2440mm x 11000mm
ApplicationsWindows, Doors, Curtain Walls, Balustrades, Roofs, Partitions
Form TypeFlat or Bent/Curved available

Key Product Features

  • Extremely High Safety: The PVB interlayer withstands penetration from impact. Splinters adhere to the interlayer even if cracked, reducing injury risk.
  • Superior Sound Proofing: Specifically engineered to dampen noise and reduce Db levels for a quieter indoor environment.
  • Aesthetic Versatility: Available in various tints and patterns to harmonize with modern architectural demands.
  • UV Screening: Filters out ultraviolet rays, preventing furniture and interior decor from fading.
  • High Durability: Resists burglary, bursts, and provides high strength against mechanical shocks.

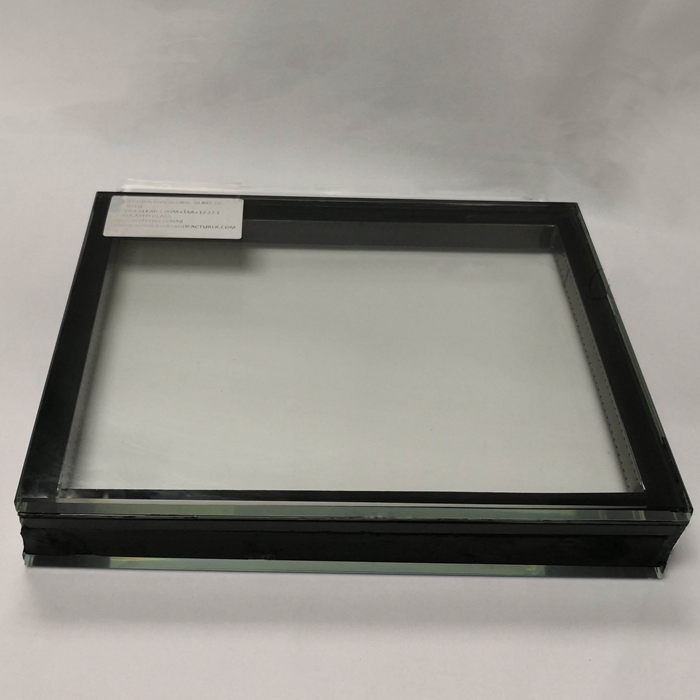

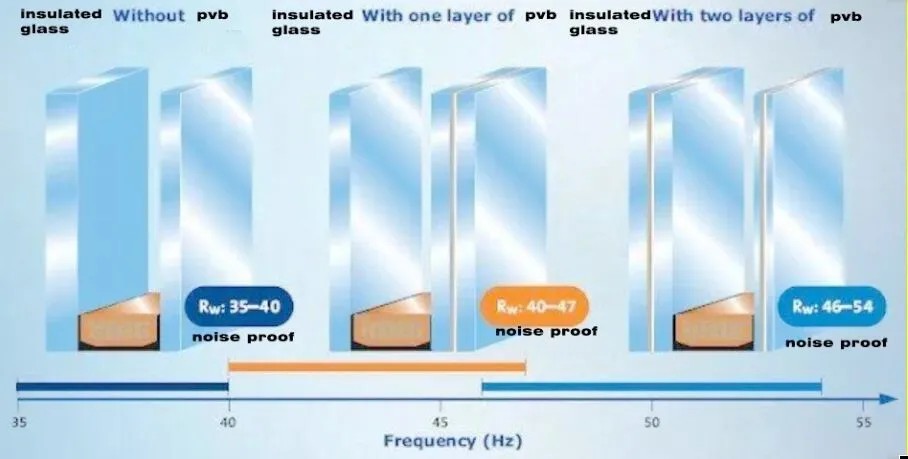

Insulated Acoustic Unit

Processing & Applications

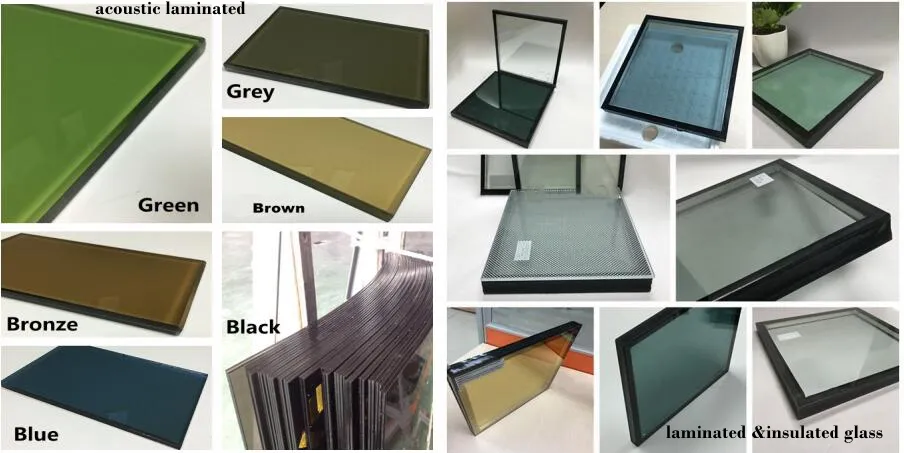

Product Processing

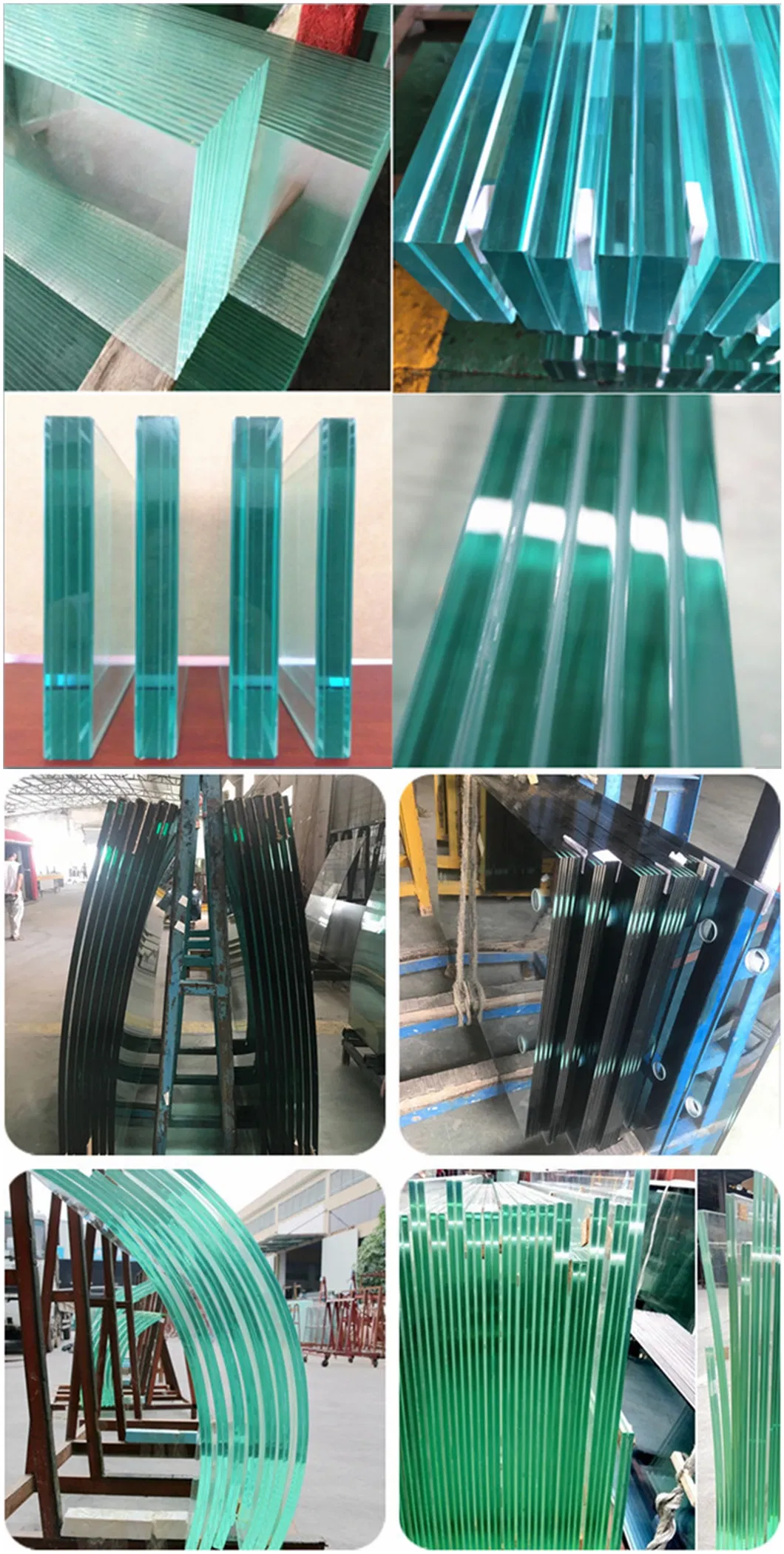

Manufacturing Line

Our glass solutions are widely used in: Schools, Homes, Offices, Healthcare facilities, Libraries, Hotels, Meeting Rooms, Airports, and Train Stations.

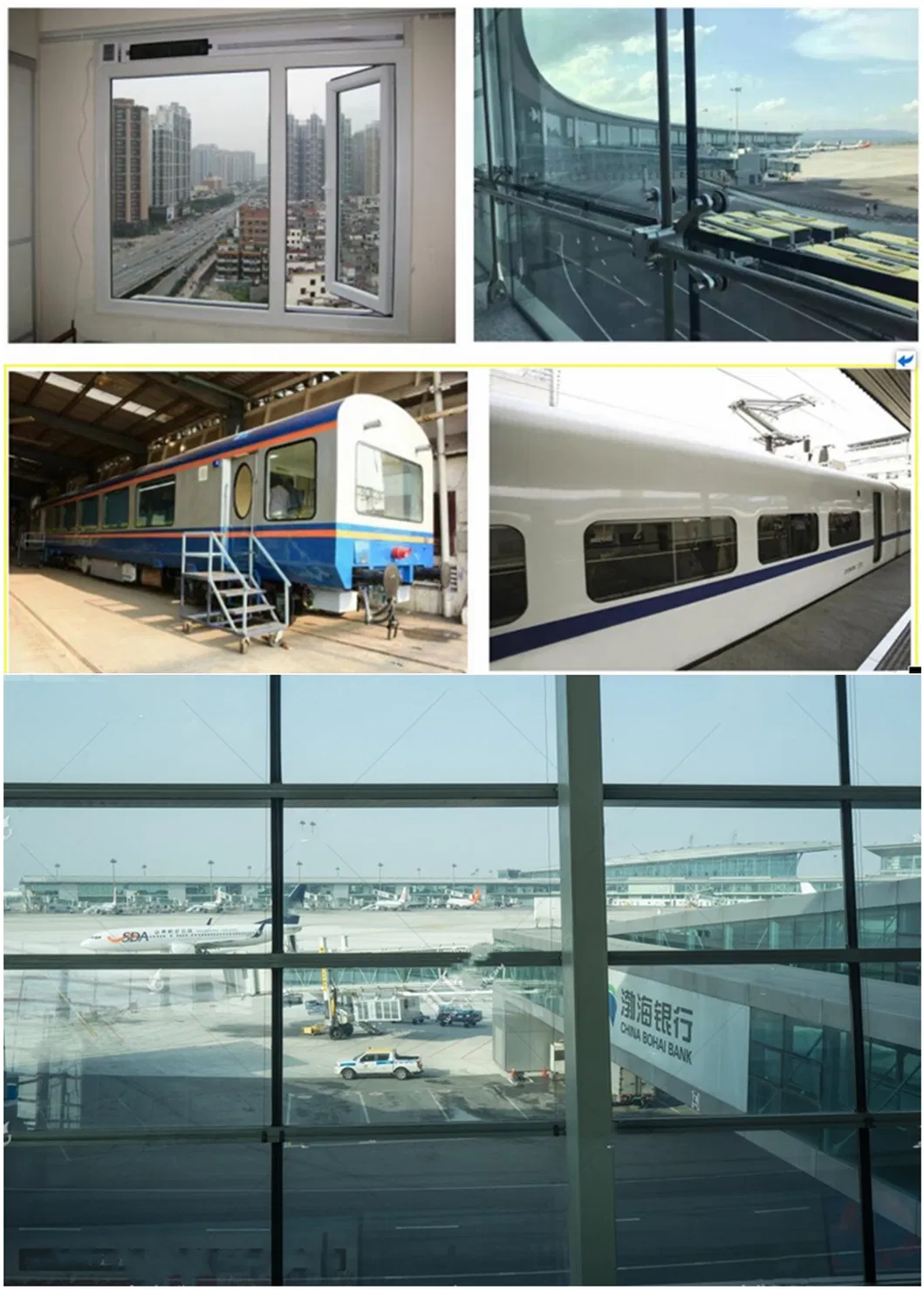

Project Case 1

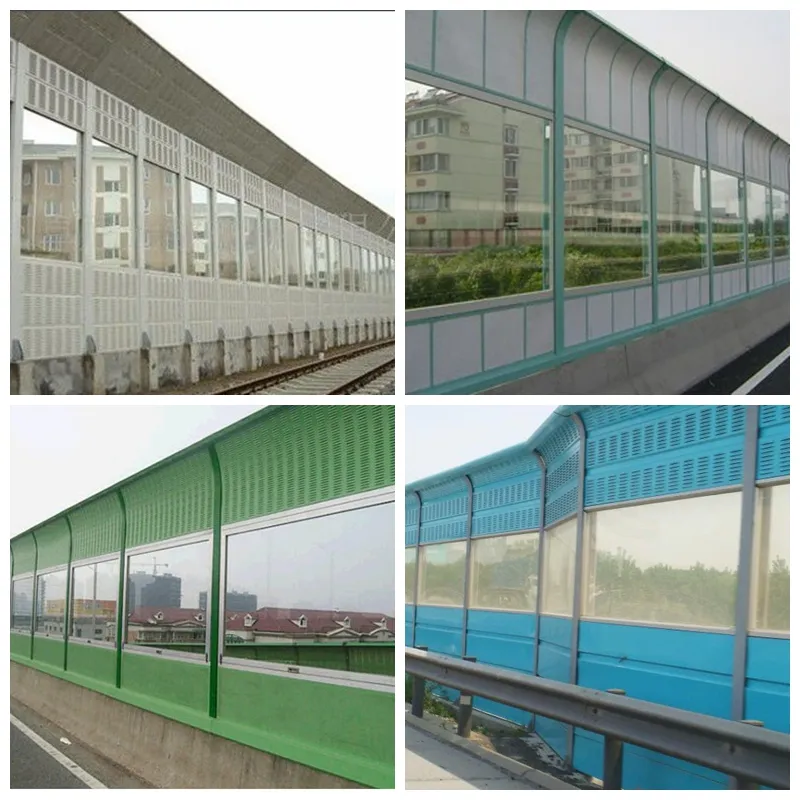

Project Case 2

Advanced Manufacturing

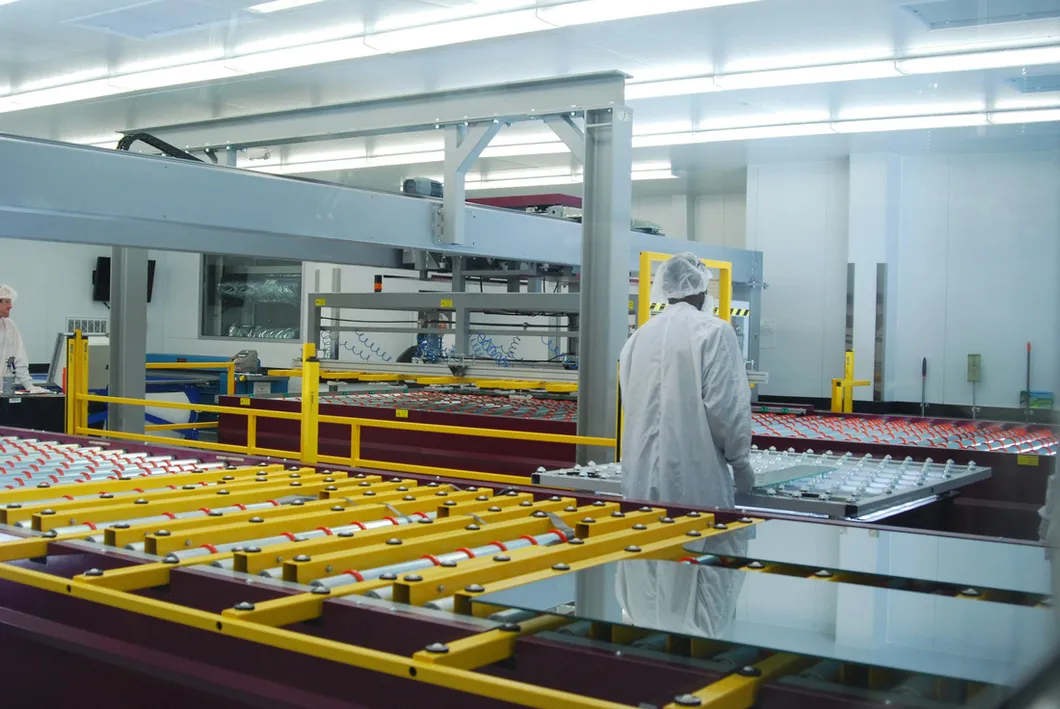

Equipment 1

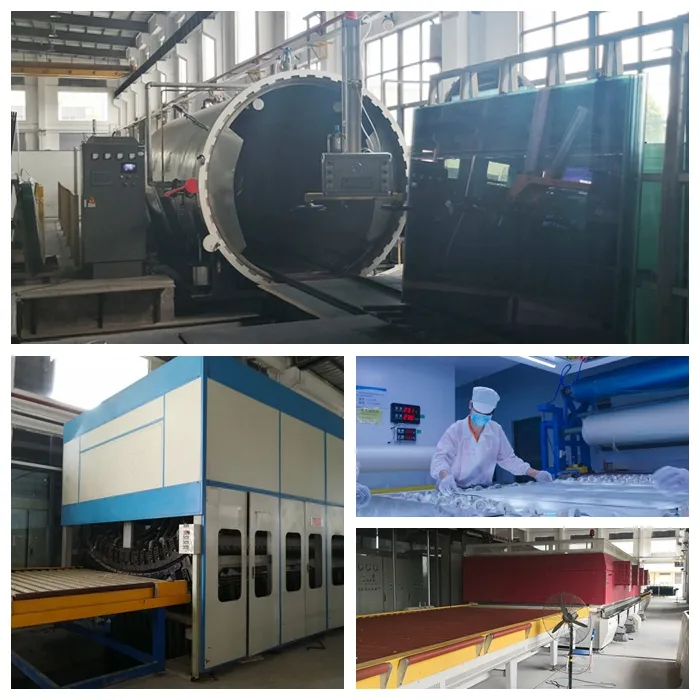

Equipment 2

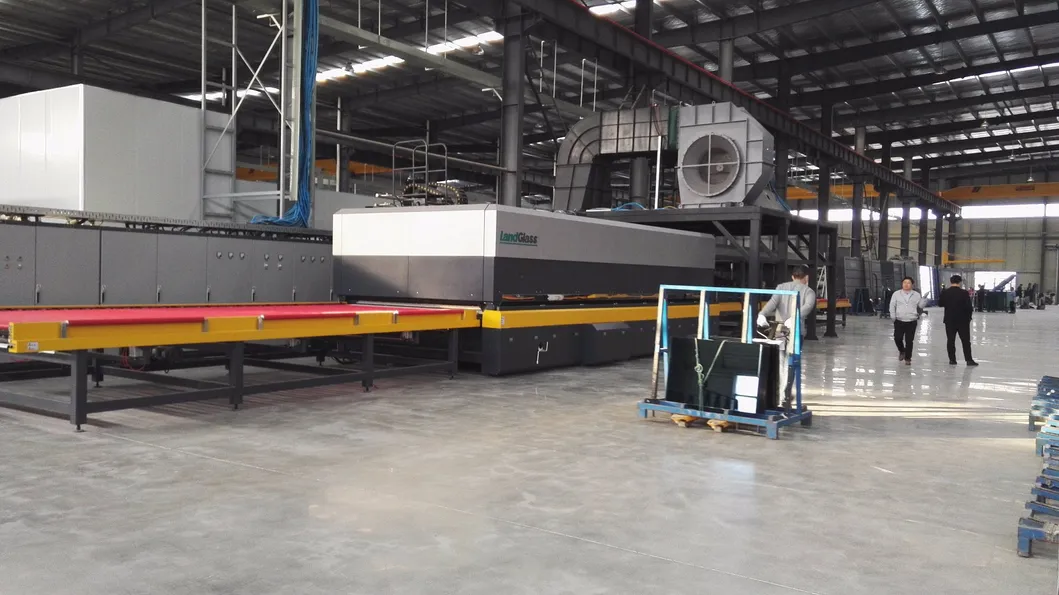

Equipment 3

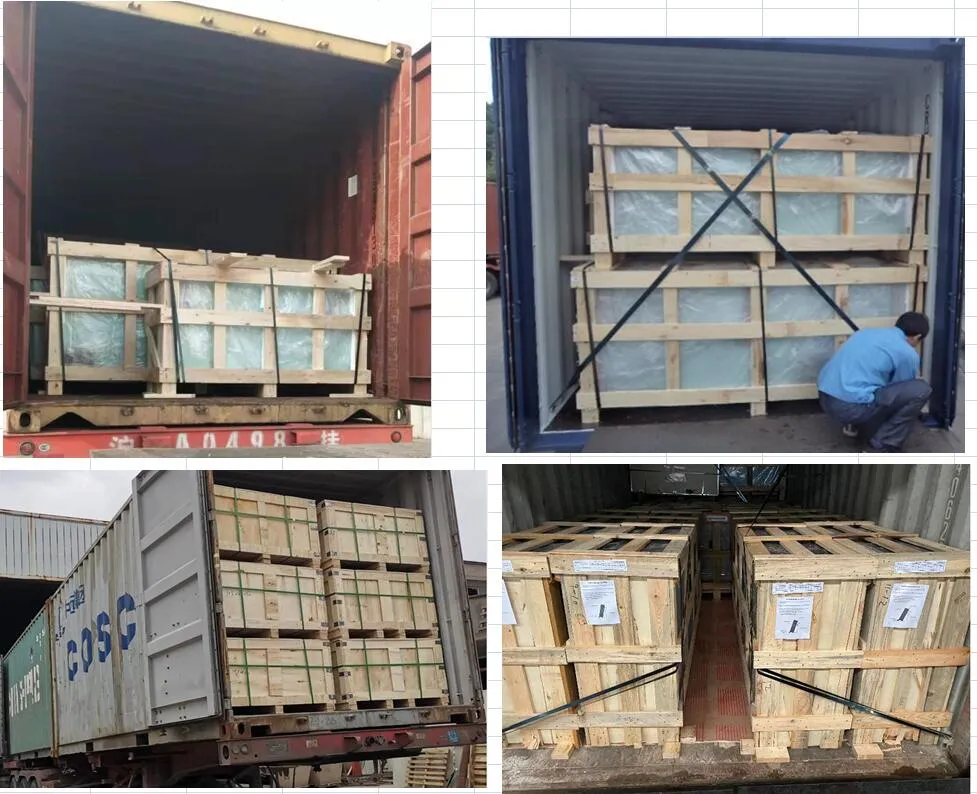

Packing and Loading

Frequently Asked Questions

Q1: What makes Acoustic Laminated Glass different from standard laminated glass? A: It uses a special acoustic-grade PVB interlayer (like Kuraray or Trosifol) specifically designed to dampen vibration and absorb sound frequencies between 1500-5000 Hz.
Q2: Can I customize the thickness and size of the glass? A: Yes, we offer customized sizes up to 2440mm x 11000mm and various thickness combinations such as 5+5mm, 6+6mm, or triple-layered configurations.
Q3: Is the glass certified for international safety standards? A: Yes, our products meet AS/NZS 2208:1996, CE (EN12150), ANSI Z97.1, and CCC standards.
Q4: What colors and finishes are available? A: We provide clear, bronze, grey, green, and blue glass. We can also provide silk-screen printing and various PVB colors for aesthetic customization.
Q5: How does this glass help with UV protection? A: The PVB interlayer naturally filters out the majority of harmful ultraviolet rays, which helps prevent interior furniture and carpets from fading.
Q6: What is the lead time for production? A: Typically, the production and delivery time ranges from 7 to 15 days depending on the order complexity and quantity.
