Noise-Proof Sandwich Glass Solutions

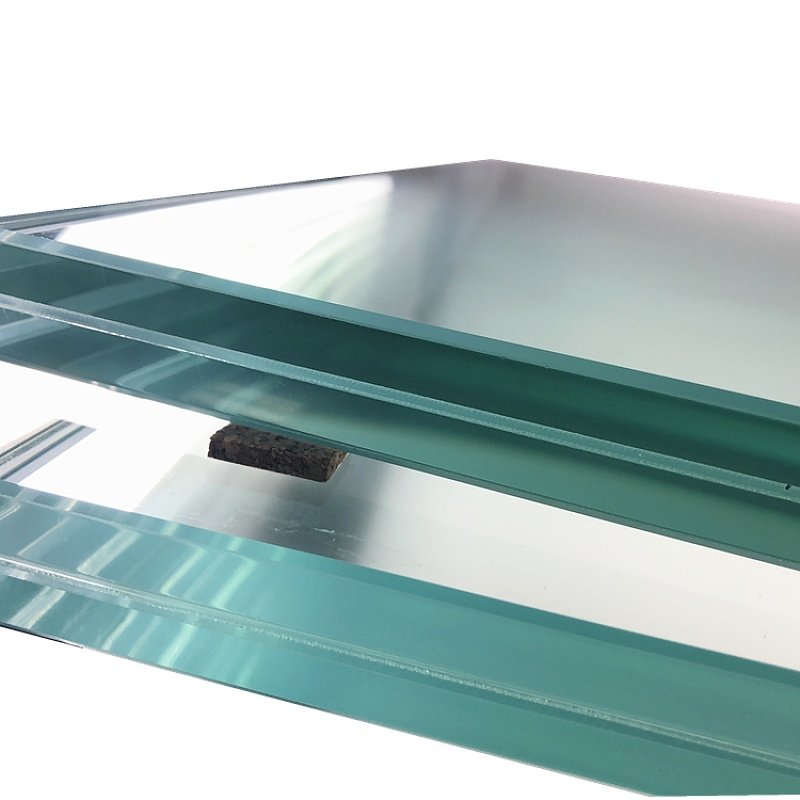

Our technology utilizes a special PVB acoustic film (brands like Kuraray, Trosifol, etc.). This monolayer film product, used in multiple insulating glass, combines outstanding sound protection properties with all the advantages of conventional Acoustic PVB film. Even in monolithic laminated safety glass, it reveals exceptional sound protection performance.

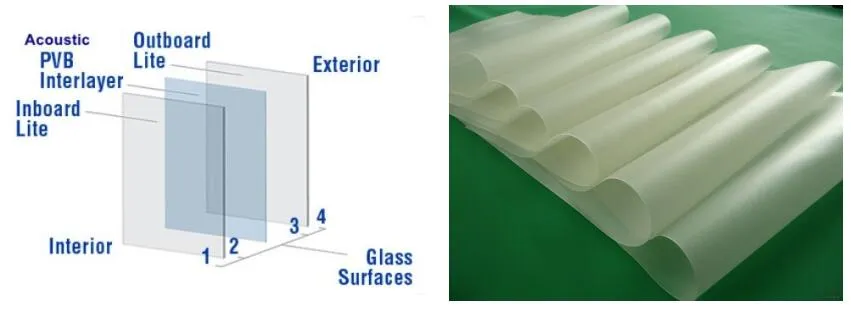

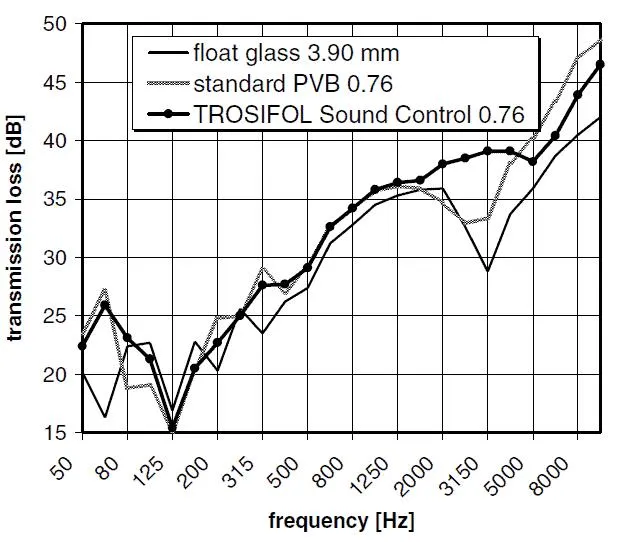

The highly sound insulating PVB inter-layers are laminated between glass panels using normal heat and pressure methods, creating a unit with a lower overall Rw value. Since every glass thickness vibrates differently, the introduction of an acoustic inter-layer reduces the 'critical frequency' effect, ensuring no dip in performance for specific sound frequencies.
Frequency Optimization: This PVB is designed with acoustic dampening properties, specifically targeting frequencies between 1500 and 5000 Hz.

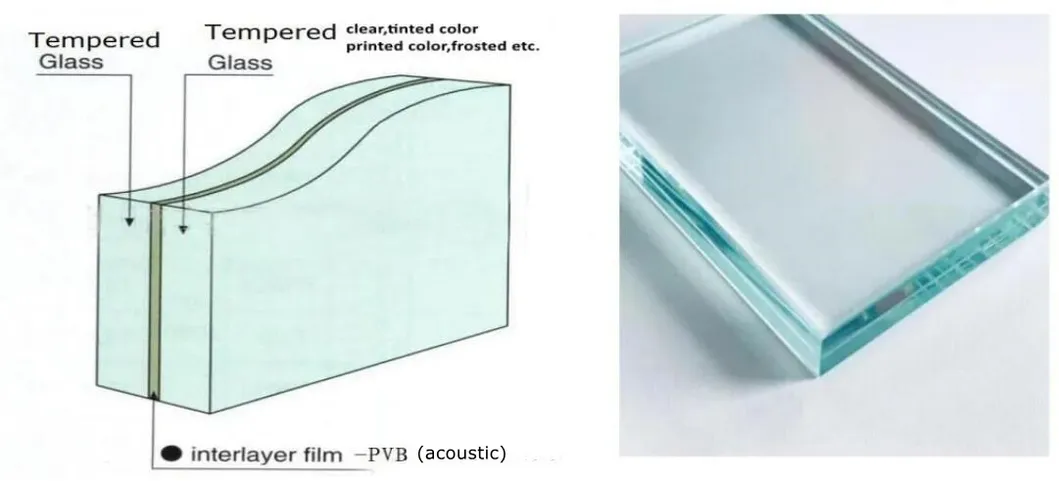

Acoustic Laminated Glass is a type of safety glass that holds together when shattered. In case of breakage, the fragments adhere to the film, preventing injury. Tempered laminated glass is ideal for areas with human impact risk or where falling glass is a concern.
| Feature | Details |
|---|---|
| Glass Thickness | 3+3, 4+4, 5+5, 6+6, 8+8, 10+10, 12+12, 5+5+12, 6+6+12 mm etc. |
| Acoustic PVB | 0.76mm, 1.14mm, 1.52mm etc. (Kuraray, Trosifol, Dupont, Solutia, Sekisui) |

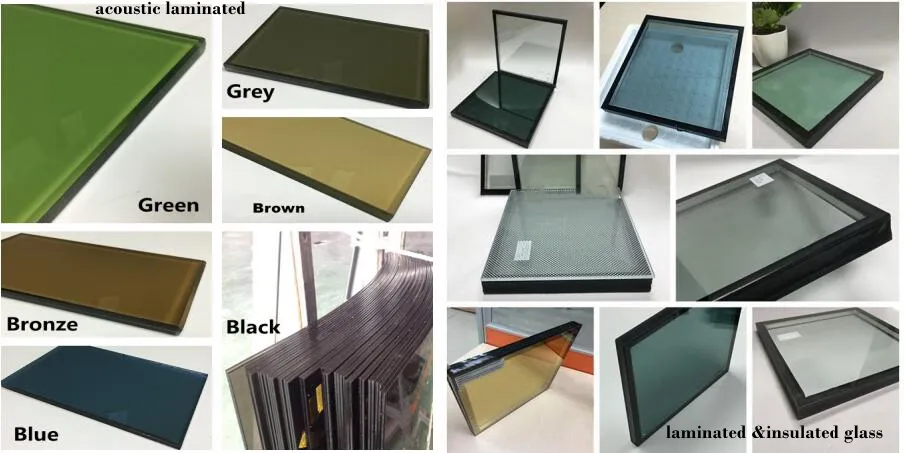

| Glass Color | Clear, Bronze, Grey, Green, Blue, Customized colors & patterns |
| Glass Type | Raw float, Tempered, Reflective, Low-E, Nano, Tinted, Patterned |
| Applications | Windows, doors, curtain walls, balconies, railings, partitions, roofs |

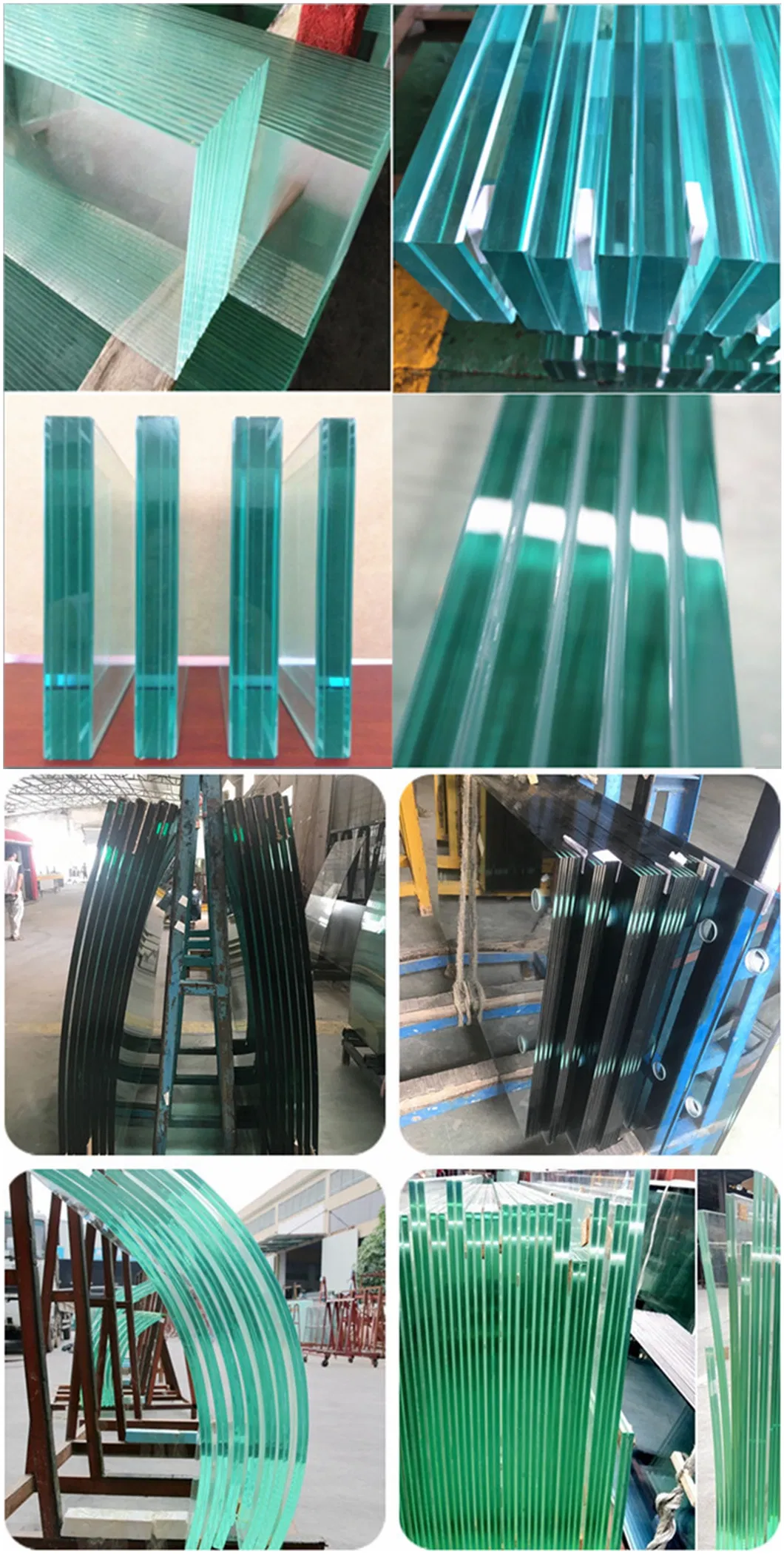

| Form Type | Flat or Bent/Curved |
| Packing | Wooden case or customized package |
| Delivery Time | 7-15 days |
Withstands impact penetration. Splinters adhere to the interlayer if the glass cracks.
Advanced acoustic dampening reduces noise transmission significantly.
Tinted interlayers harmonize building appearance with surrounding views.
Filters out ultraviolet rays to prevent furniture and curtains from fading.

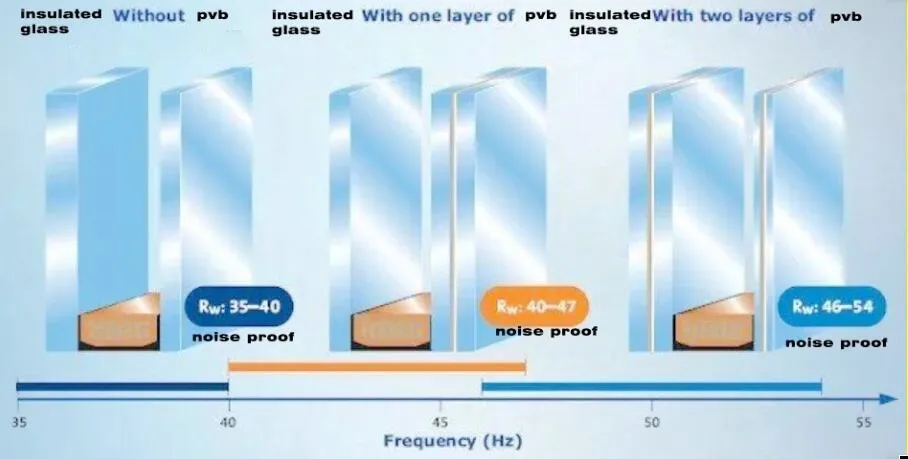

The best noise proof effect is achieved through insulated acoustic laminated glass units.

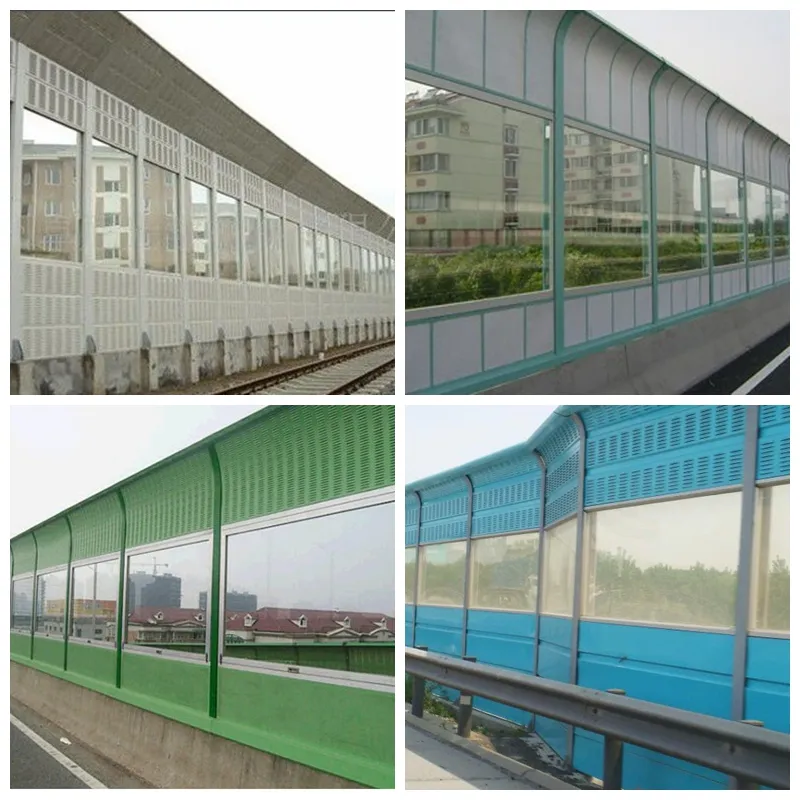

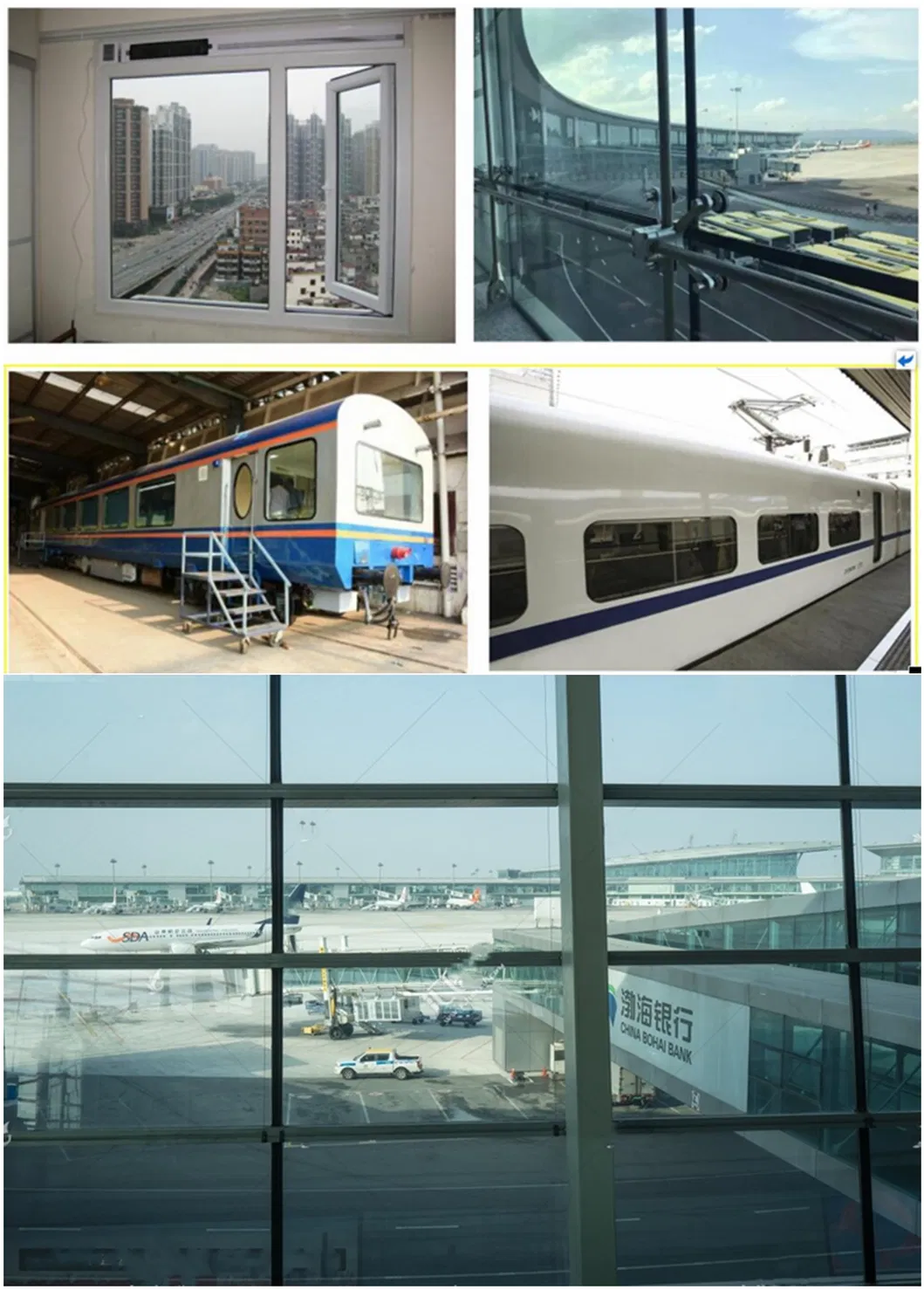

Common Applications: Schools, Homes, Offices, Healthcare, Libraries, Hotels, Meeting Rooms, Airports, and Transportation Stations.

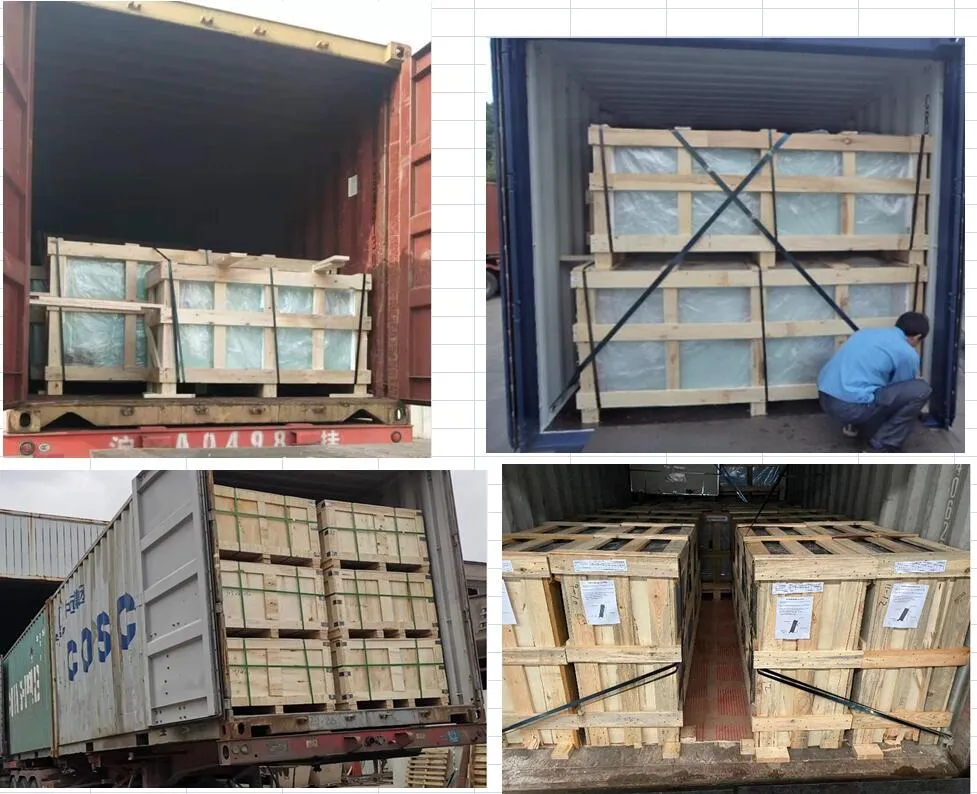

Packing & Container Loading:
