Direct Selling Environmentally Friendly Flat and Curved Solar Control Coated Insulated Glass

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Info.

Model NO.
IG-0812-6
Type
Insulated Glass
Shape
Curve
Structure
Hollow
Glass Thickness
3-19mm
Air Cavity Depth
6-20mm
Hardness
6 (Moh's)
Energy Transfer
Radiation
Color
Clear, Blue, Green, Gray, Bronze, etc
Usage
Furniture, Door, Building, Window
Material
Qualified Tempered Float Glass
Processing
Custom Designed
MOQ
100m2

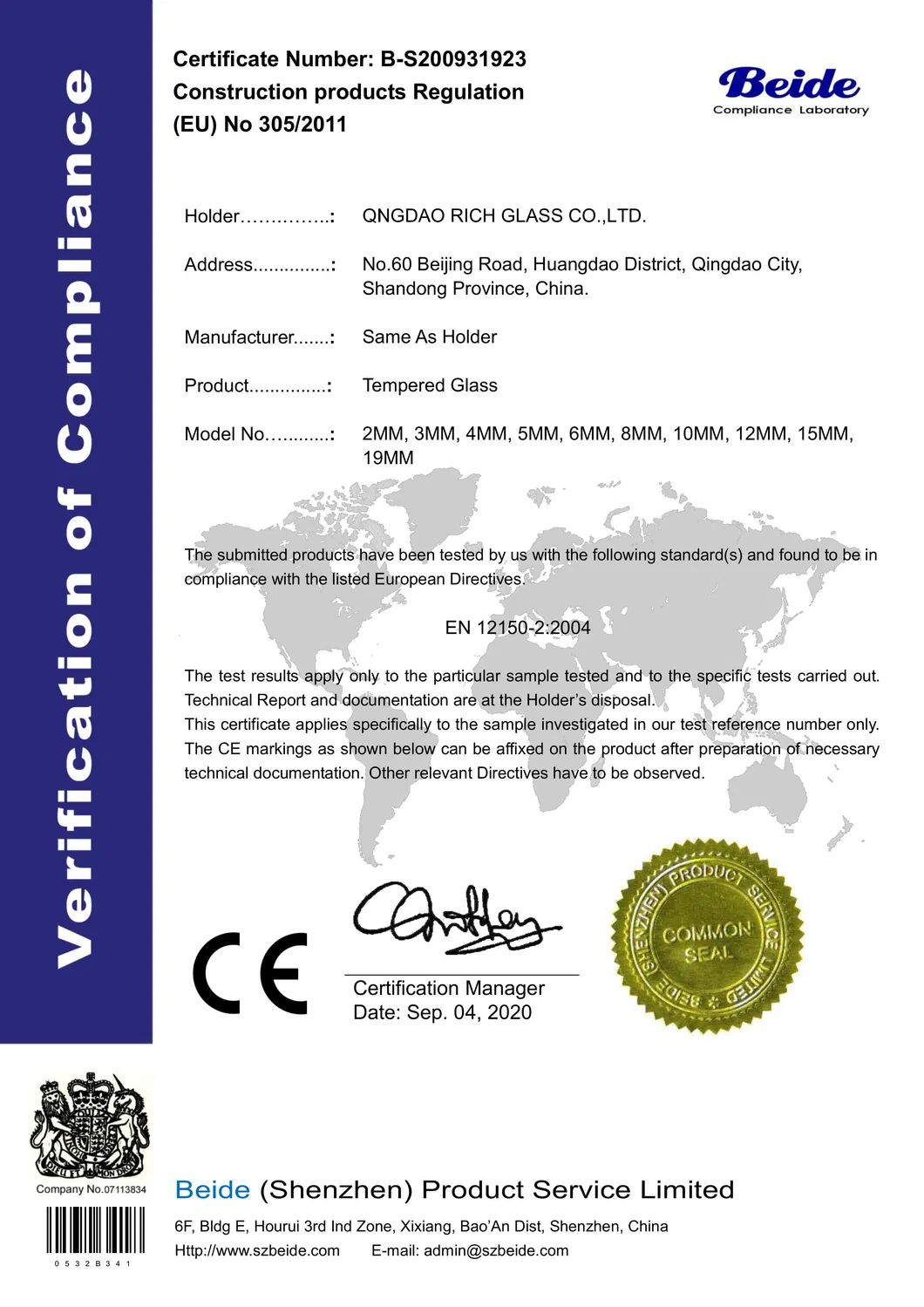

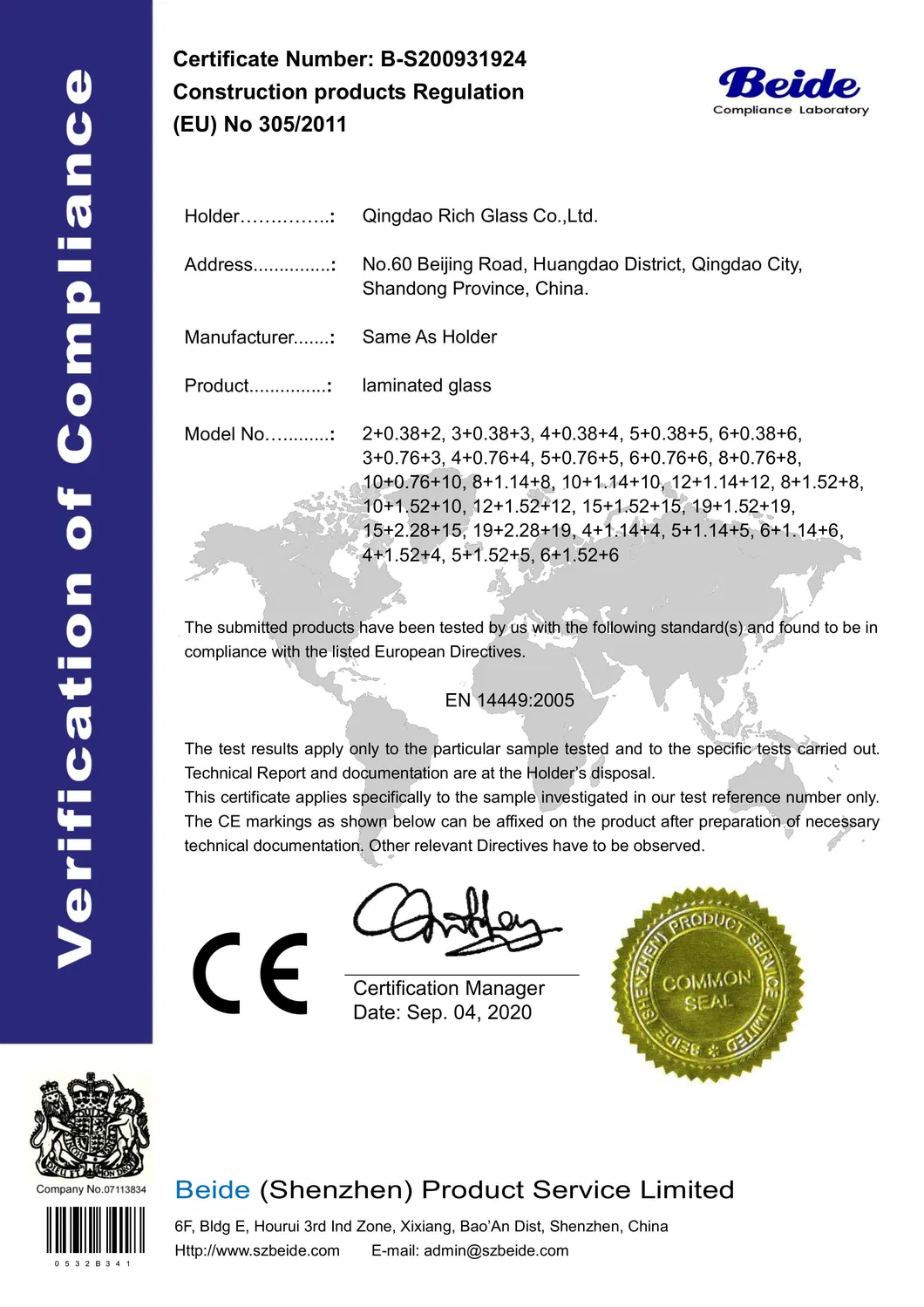

Certificate
CE, ISO, SGS

Product Description

Solar Control Coated Insulated Glass

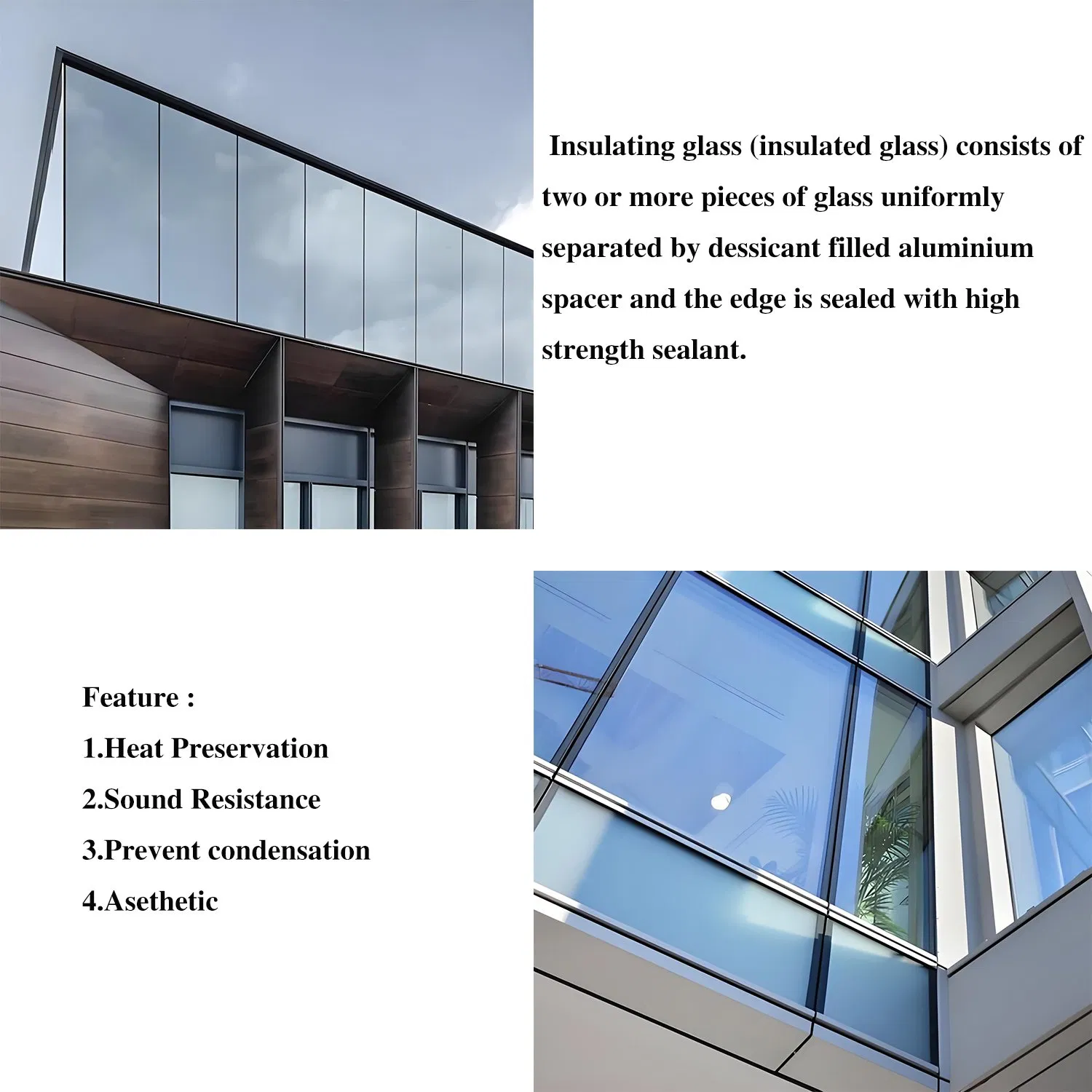

Double glazed glass commonly consists of two (sometimes more) panes of glass separated by an aluminum spacer and sealed together at the edge. The insulating airspace is filled with dry air or a noble gas, such as argon or krypton, to slow heat exchange and reduce noise levels.

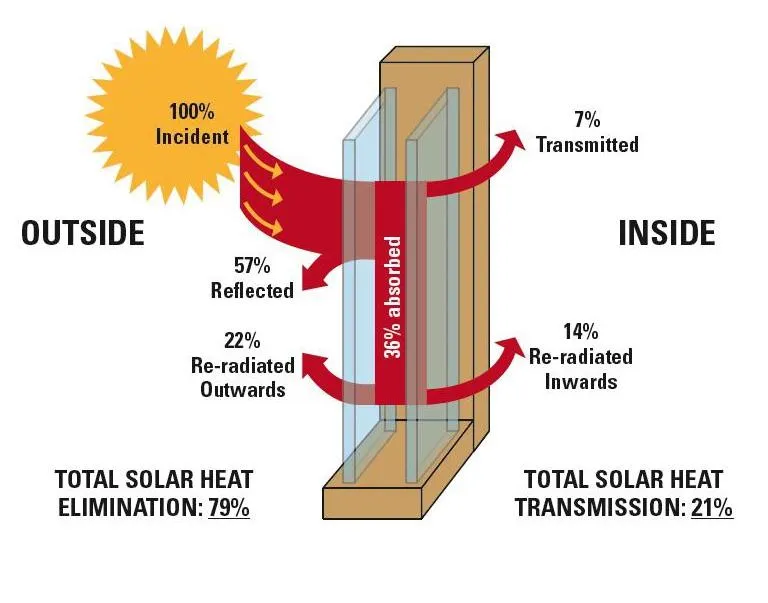

Low E glass (Low Emissivity) provides excellent performance in situations where temperature separation is desired. It is used to help meet energy efficiency requirements by blocking UV light and providing heat insulation. This is achieved with a special thin-film metallic or oxide coating which prevents the passage of short-wave solar energy into a building and prevents heat energy from escaping.

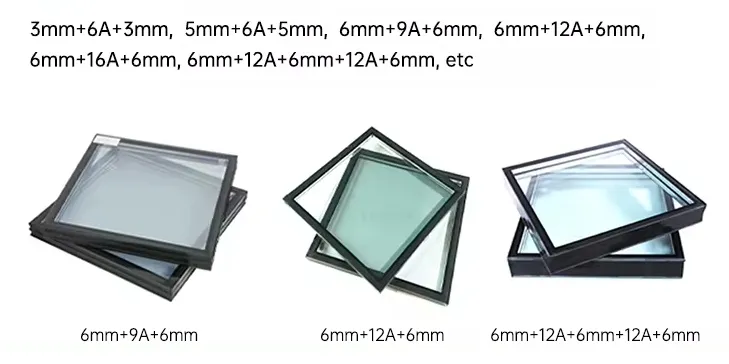

Double Glazed Details

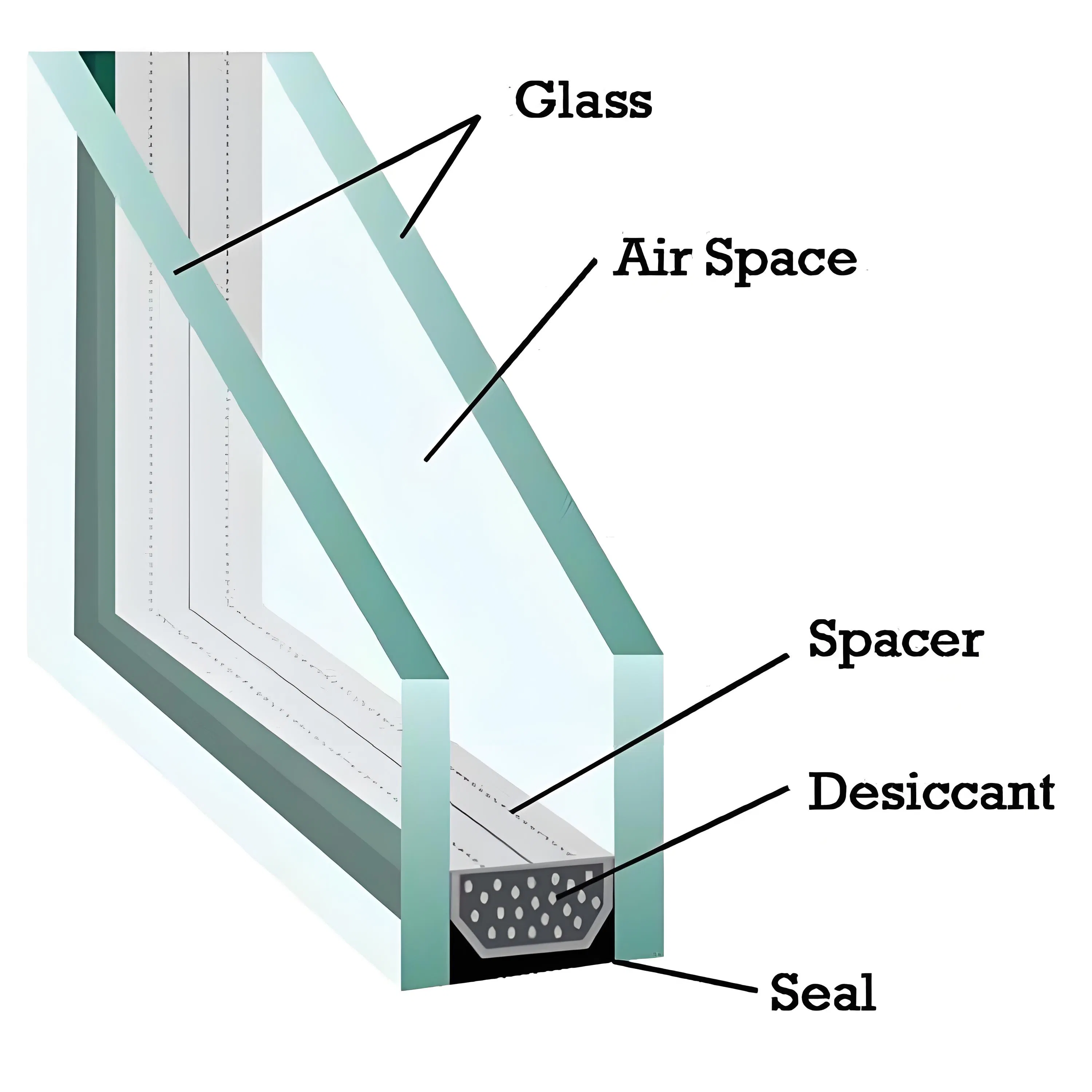

Insulated Glass Structure

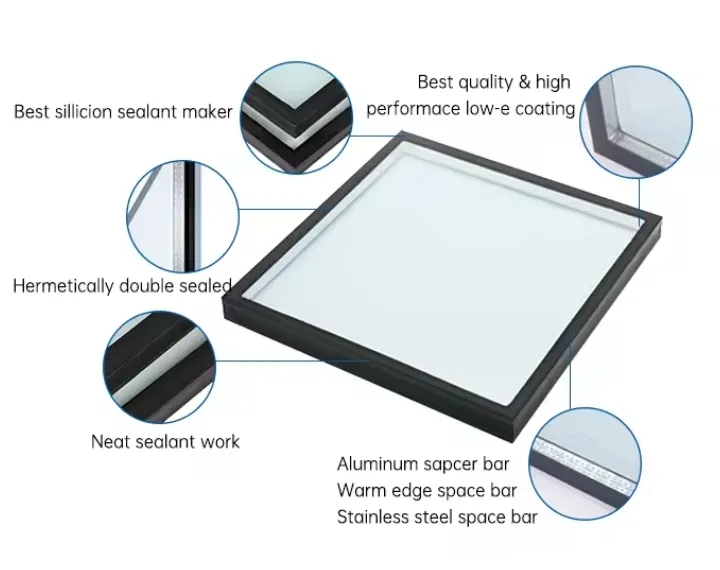

Low-e Insulated Glass (IGU): Made by 2pcs or more float glasses filled with desiccant or Argon gas with an Aluminum frame. Primary seal (butyl) and secondary seal (polysulfide or structure) effectively protect against radiation when coated with Low-E film.

📋

Technical Specifications

Parameter Specification Details
Thickness of Single Glass4mm 5mm 6mm 8mm 10mm 12mm 15mm 19mm
Maximum SizeMax: 2500*4000mm, Min: 180*350mm (Customized Available)
Available ColorsClear, Ultra Clear, Grey, Green, Blue, Bronze, etc.
Glass TypeLow E, Reflective, Clear, Tinted Double Glazed Glass
Aluminum Spacer6mm, 9mm, 12mm etc. (1/4", 11/32", 1/2", 5/8")
Spacer FillerDry air, Noble gas (Argon, etc.)

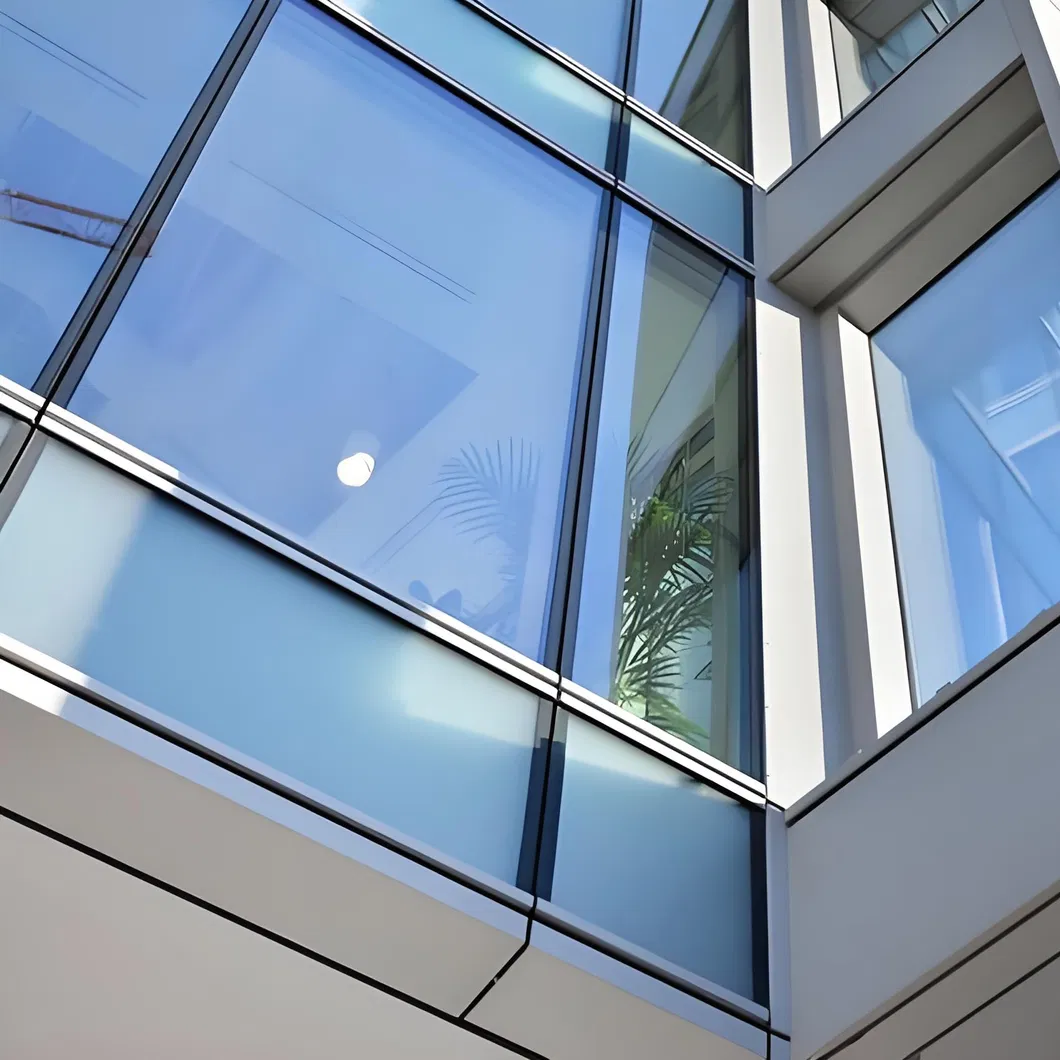

ApplicationWindows, Doors, Skylight, Roof, Curtain Walls
🖼

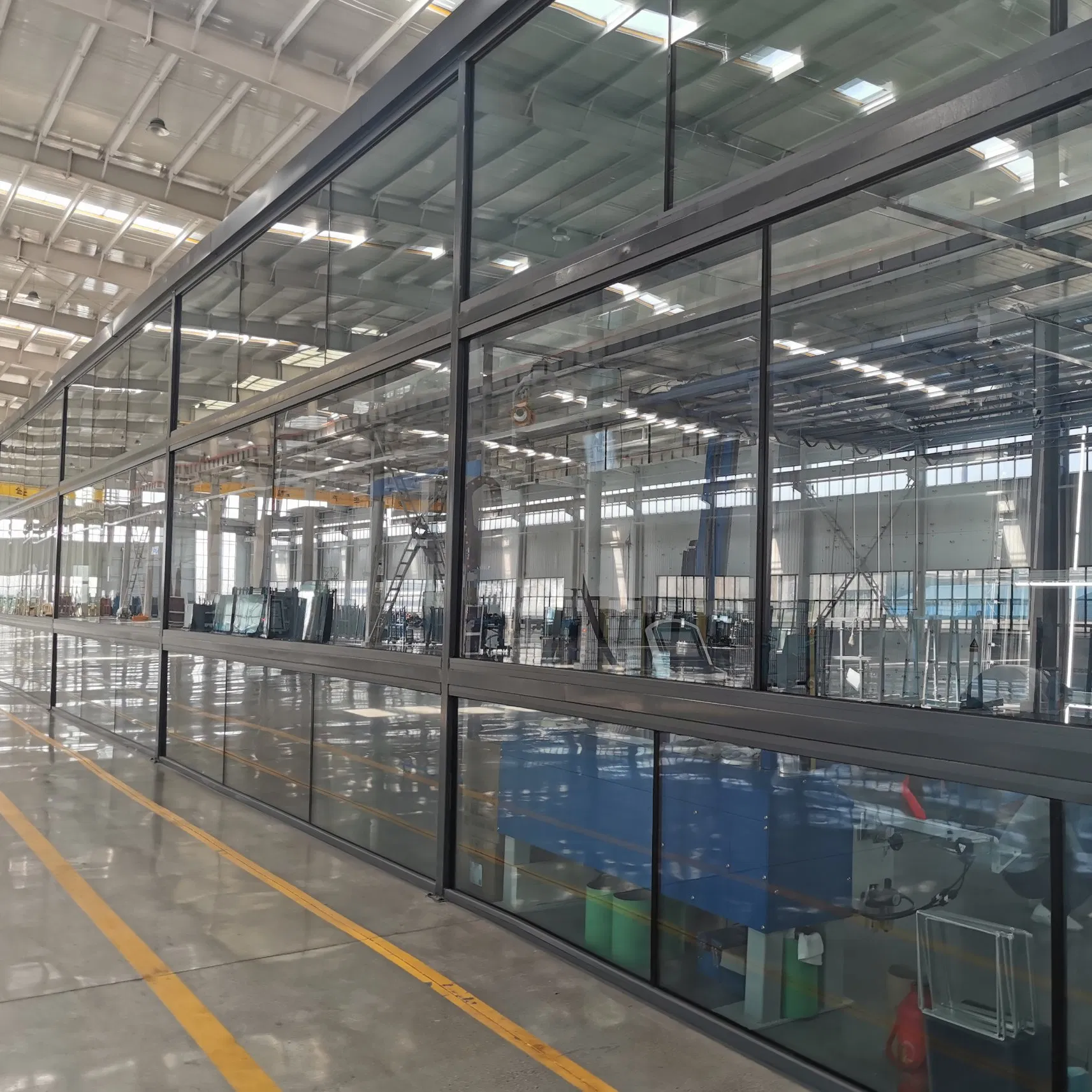

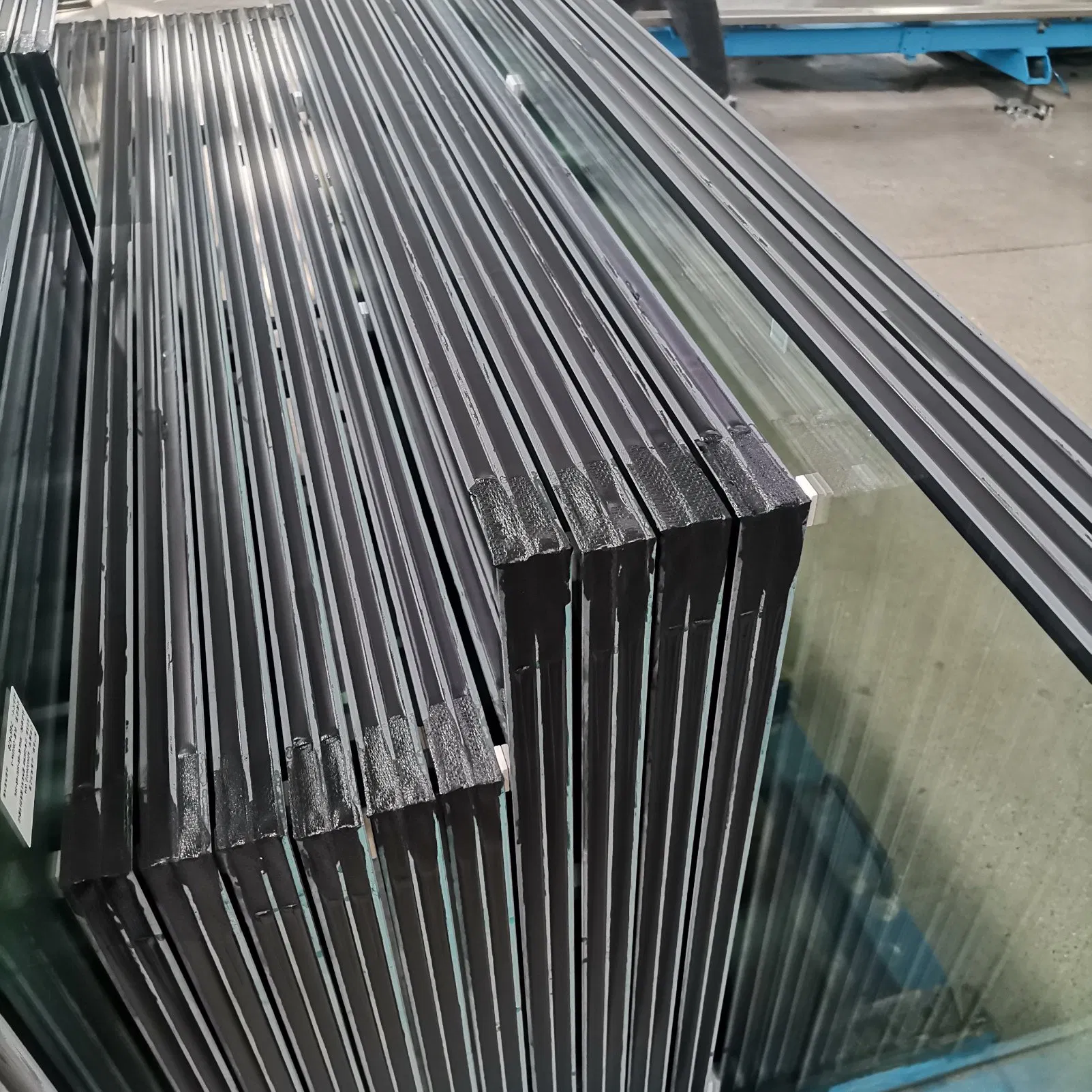

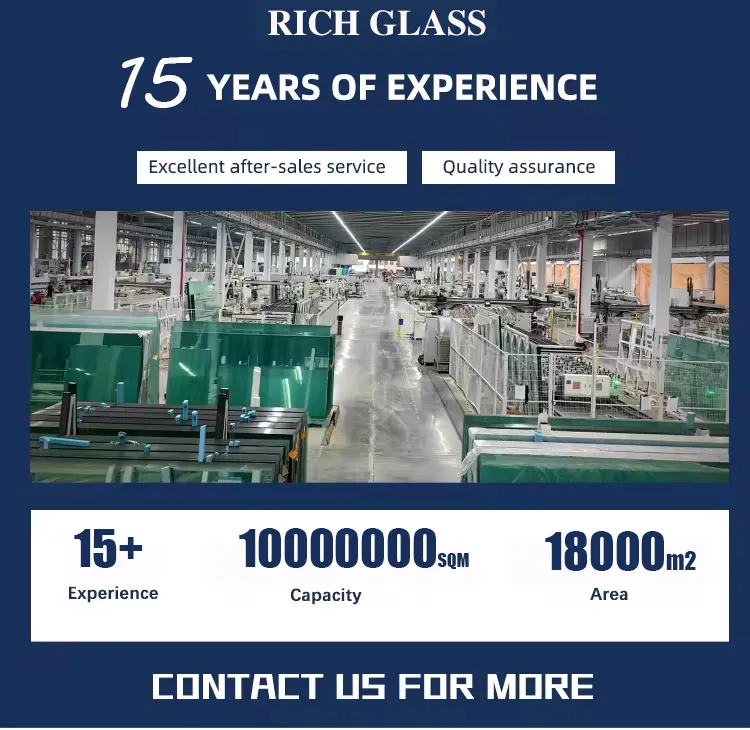

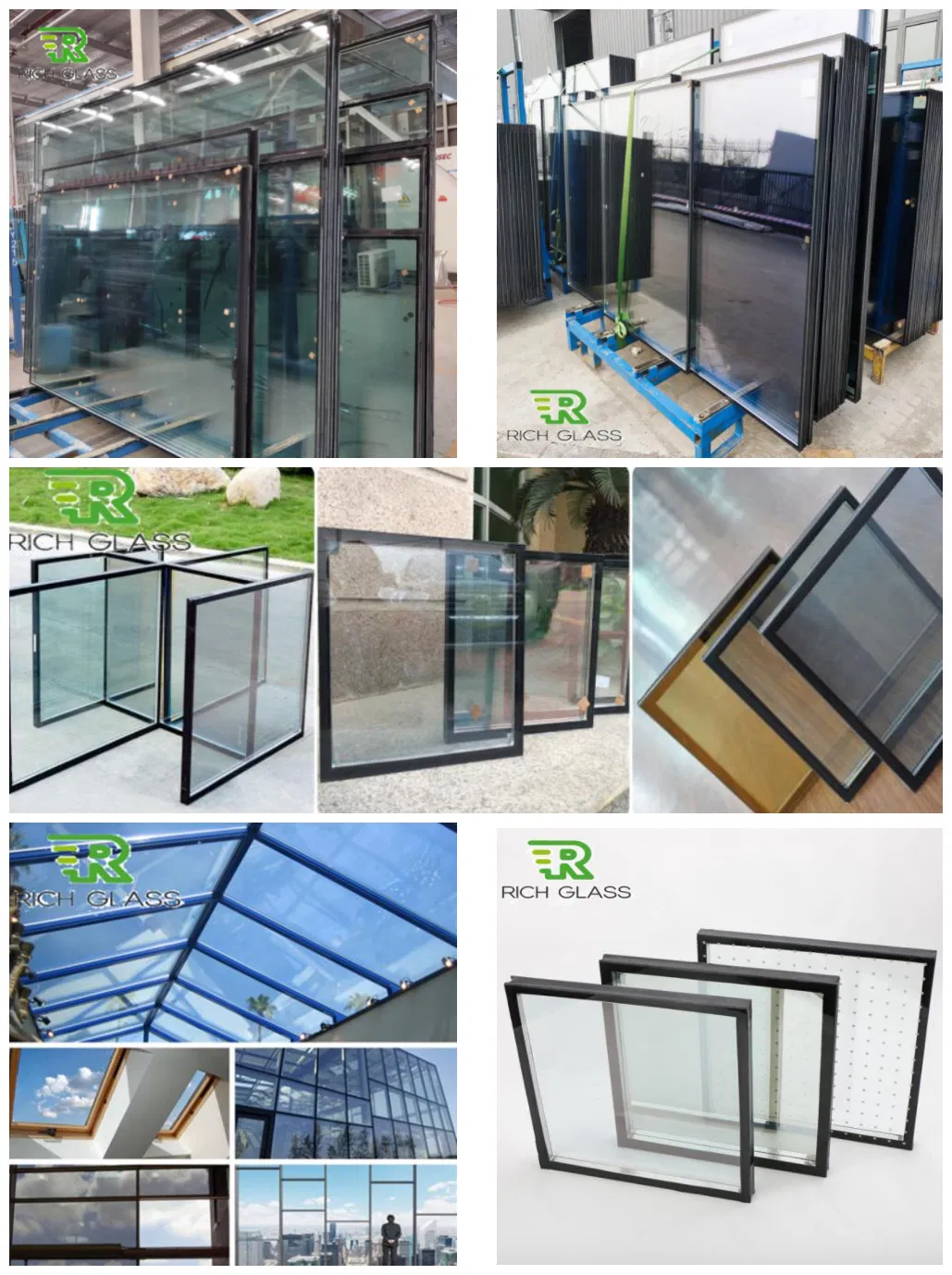

Production Showcase

📦

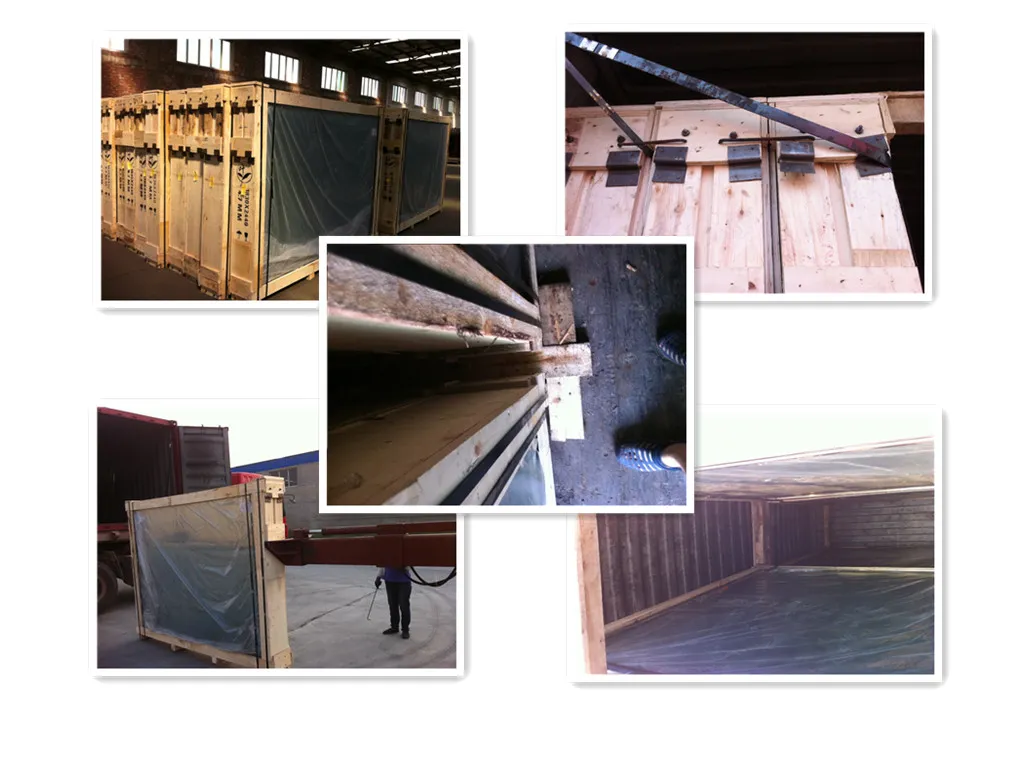

Packaging & Delivery

  • Paper and Cork liners are placed between every two glass panes to prevent scratches.
  • Glass is secured in suitable wooden crates with Corner Protectors.
  • Wooden crates feature legs for easy forklift loading and unloading.
?

Frequently Asked Questions

How about samples and charges?
Raw material samples like float glass or mirrors are free. Deep processing glass like tempered, laminated, or insulated glass samples are charged. Freight is paid by the buyer and refunded after a mass order.
What is the Minimum Order Quantity (MOQ)?
For deep processing glass, the MOQ is 100m2. For raw glass standard sizes, the MOQ is one 20'ft container.
What are the payment terms?
We typically require a 30% T/T deposit, with the balance paid against the copy of the Bill of Lading (BL).
How long is the delivery lead time?
The standard lead time is 2-4 weeks, depending on the specific order quantity and processing requirements.
How do you ensure glass safety during transport?
We pack all products into sturdy export plywood crates and use metal straps to secure the crates as tightly as possible within the container.
What is your after-sales service policy?
We confirm issues through photos, videos, or samples. If a product defect is verified, we provide replacement glass at no additional charge.
