| Technical Specifications | |
|---|---|
| Rating | T1: 30-300A@32Vdc T3: 30-250A@48Vdc |
| Interrupt Rating | T1: 30-300A, 5KA@32Vdc T3: 30-150A, 3KA@48Vdc (switchable); Ultra Hi-A, 3KA@42Vdc |
| Operating Temperature | -25ºF (-32ºC) to 180ºF (82ºC) |
| Storage Temperature | -30ºF (-34ºC) to 149ºF (125ºC) |
| Materials | UL rated thermal plastic 94V-0 |
| Stud Size | 1/4"-28 and 3/8"-16 threads per inch options |
| Torque Rating | 50in-lb (5.6Nm) max |
| Ingress Protection | IP 67 |
| Compliance | SAE J1625; SAE J1171, UL1500 Ignition protection |
| Main Applications | Trucks, buses, RVs, marine electrical systems, Battery Chargers, and DC Sound systems. |
| Model & Hardware Configuration | |
|---|---|

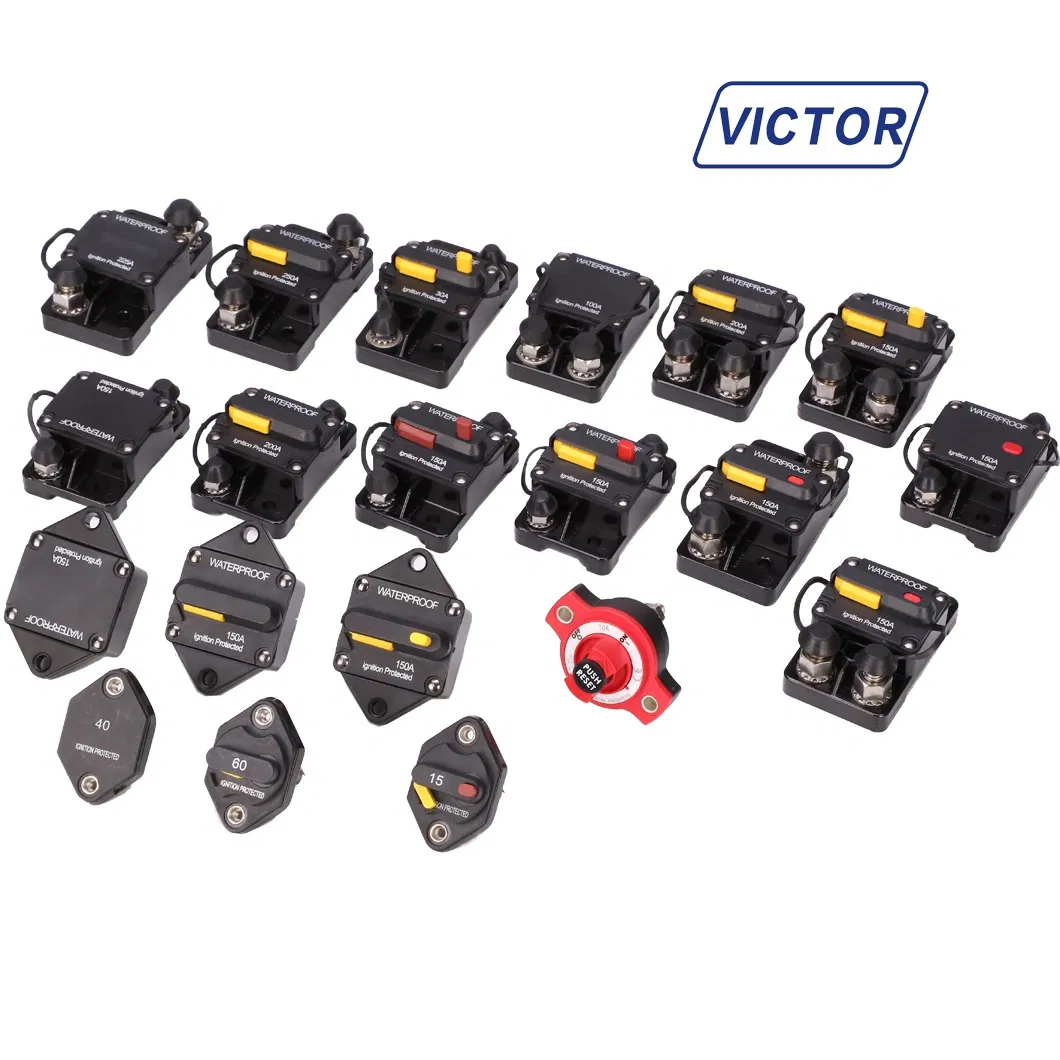

| Model Variants | E91, E92, E93, E94, E95, E96, E97, E98, E99 |
| Terminal Hardware | Code 9: Sems, stainless Code 8: Hex flange nut, stainless Code 0: Sems, iron with zinc plated |
| Packing Method | Code 6/7: Sems installed, box pack Code 8/9: Bulk or barriers pack |
