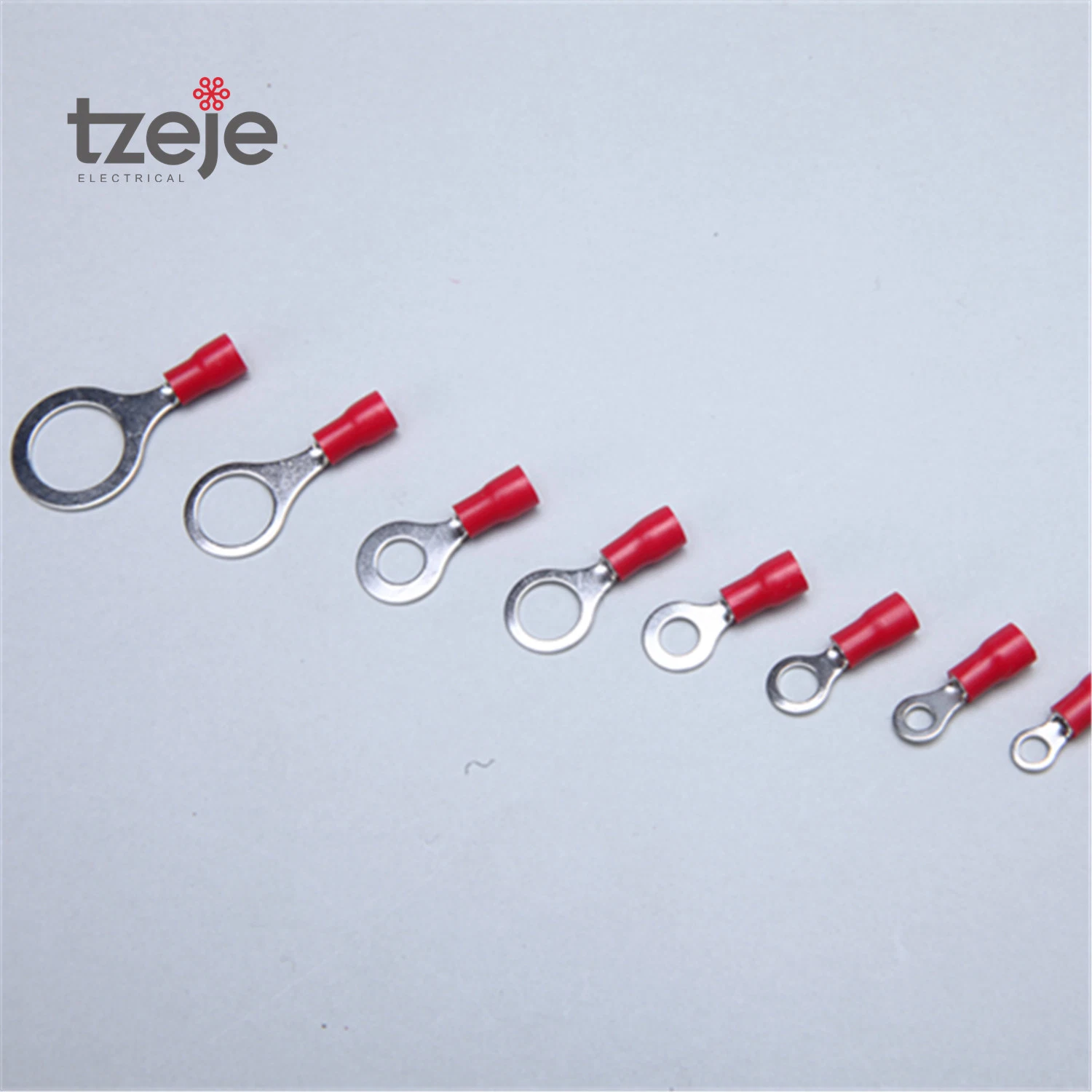

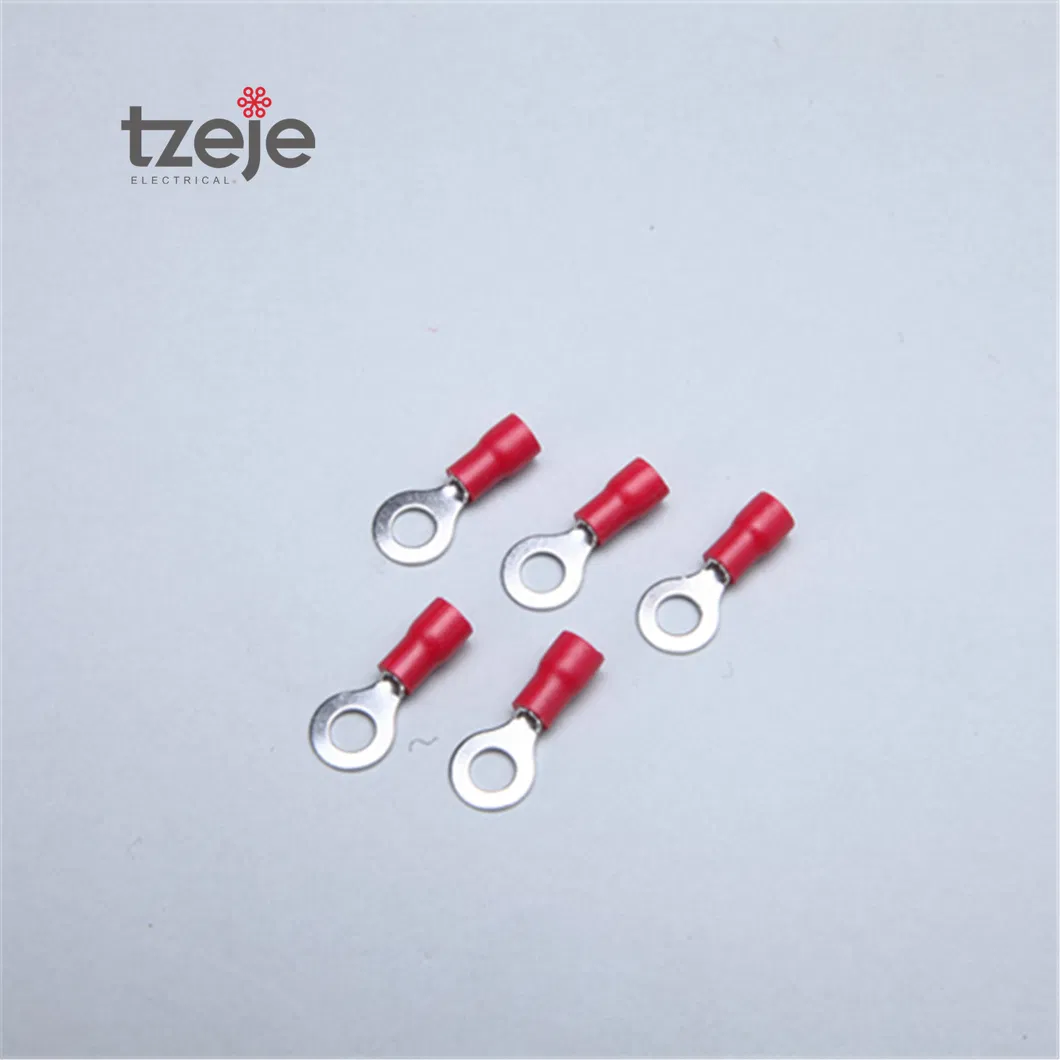

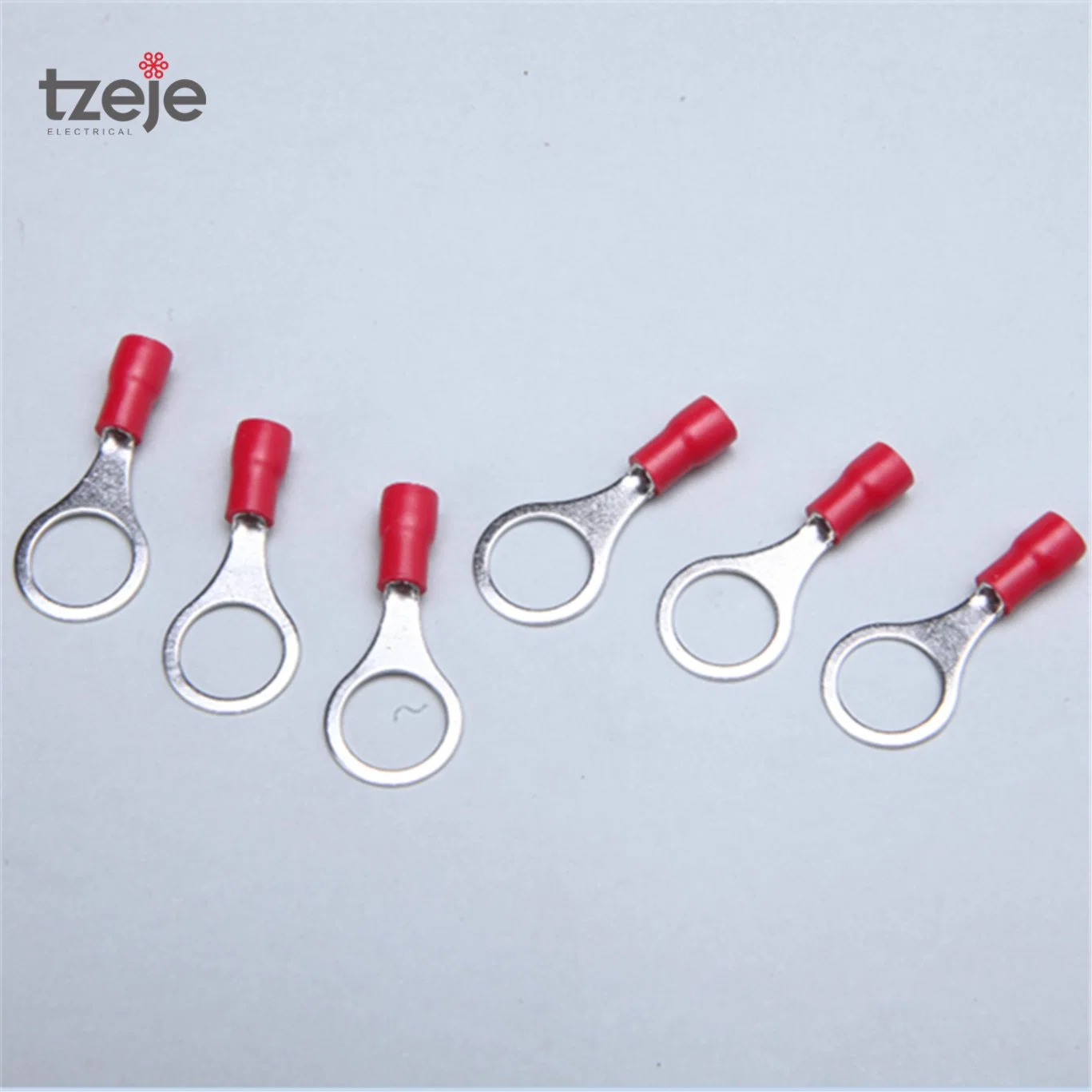

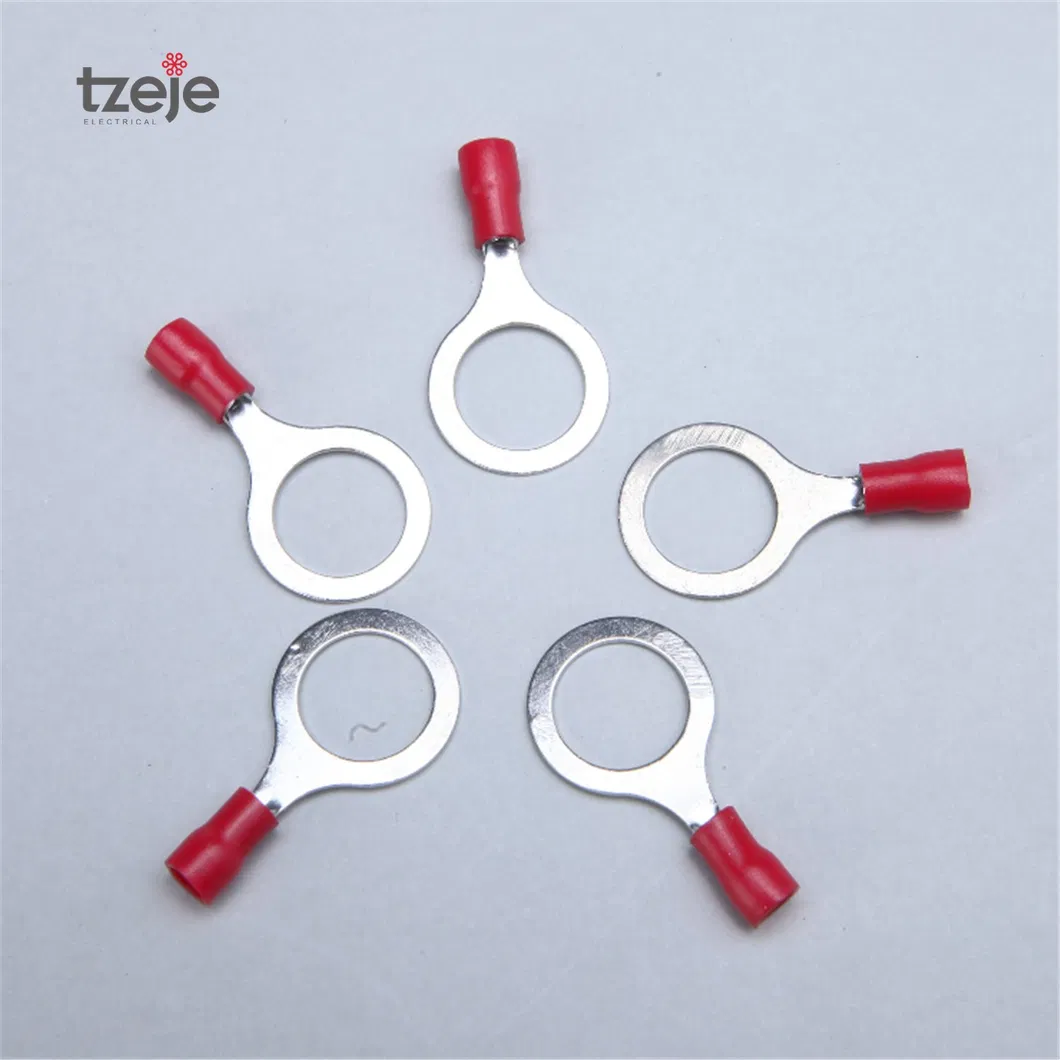

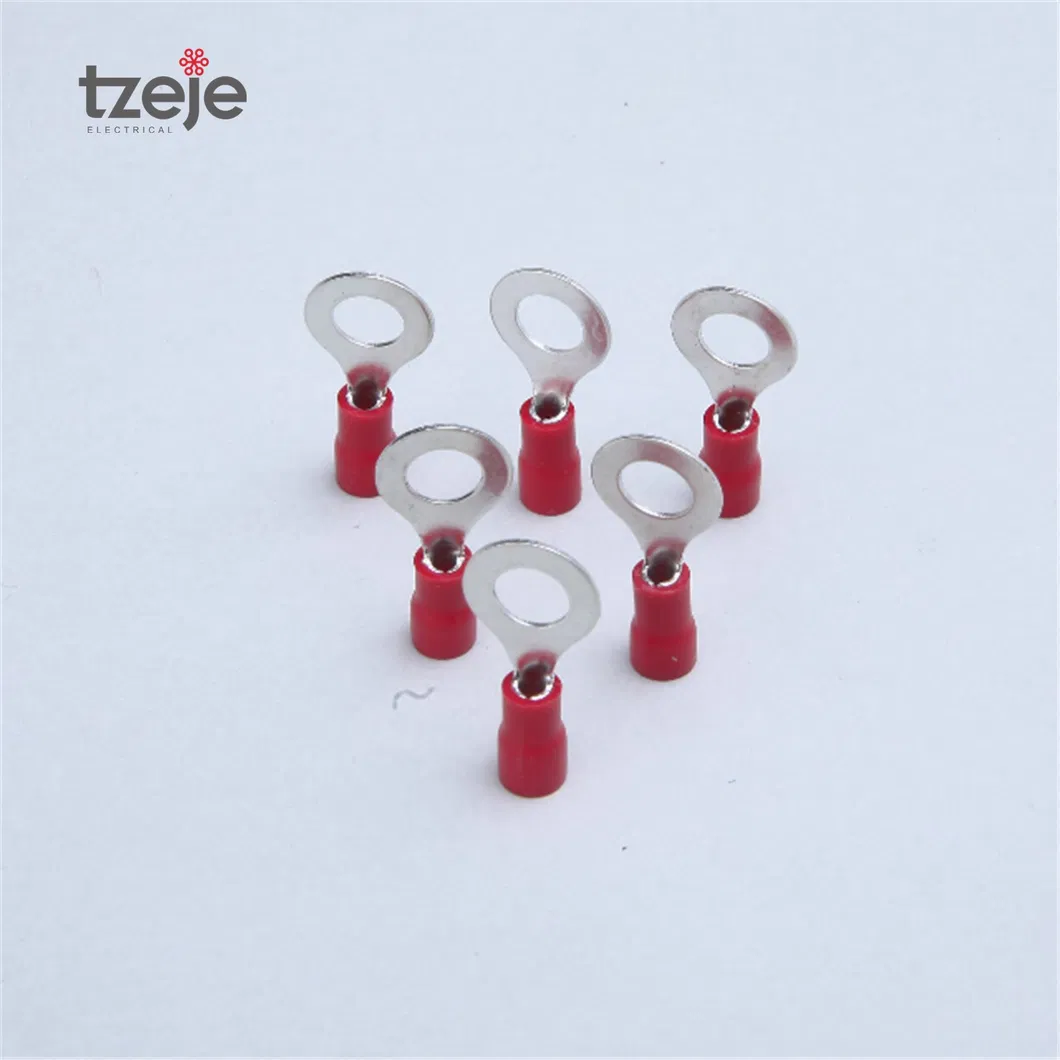

Product Name: Insulated Ring Terminal
Material: High-grade Brass or Copper
Insulating Tube: PVC / NYLON
Color Options: Red, Blue, Black, Yellow (Customizable)
Packing: 100pcs/bag, inner box and export carton
| Item No | Bolt dia d2(mm) | B | F | L | E | DΦ | Color | Description |
|---|---|---|---|---|---|---|---|---|
| RV1.25 Series | 3.2 - 13.0 | 5.7 - 19.2 | 4.95 - 16.0 | 17.8 - 35.6 | 10.0 | 4.3 | RED | Lead Section: 0.5~1.5mm² (22~16 AWG) Max: 19A |
| RV2 Series | 3.2 - 13.0 | 6.6 - 19.2 | 4.8 - 16.0 | 17.8 - 35.6 | 10.0 | 4.9 | BLUE | Lead Section: 1.5~2.5mm² (16~14 AWG) Max: 27A |
| RV3.5 Series | 4.3 - 10.5 | 8.0 - 15.0 | 8.0 - 13.5 | 25.0 - 34.0 | 13.0 | 6.3 | BLACK | Lead Section: 2.5~4mm² (14~12 AWG) Max: 37A |
| RV5.5 Series | 3.7 - 13.0 | 7.2 - 19.2 | 6.1 - 16.0 | 22.7 - 39.4 | 13.0 | 6.7 | YELLOW | Lead Section: 4~6mm² (12~10 AWG) Max: 48A |

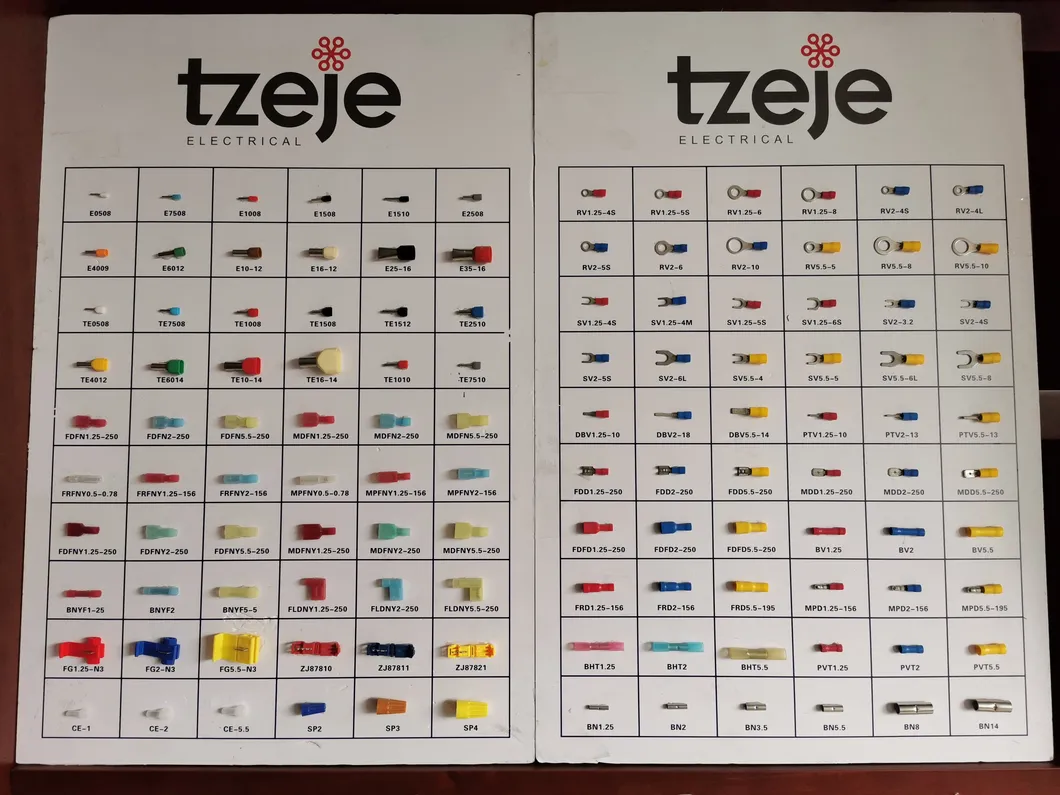

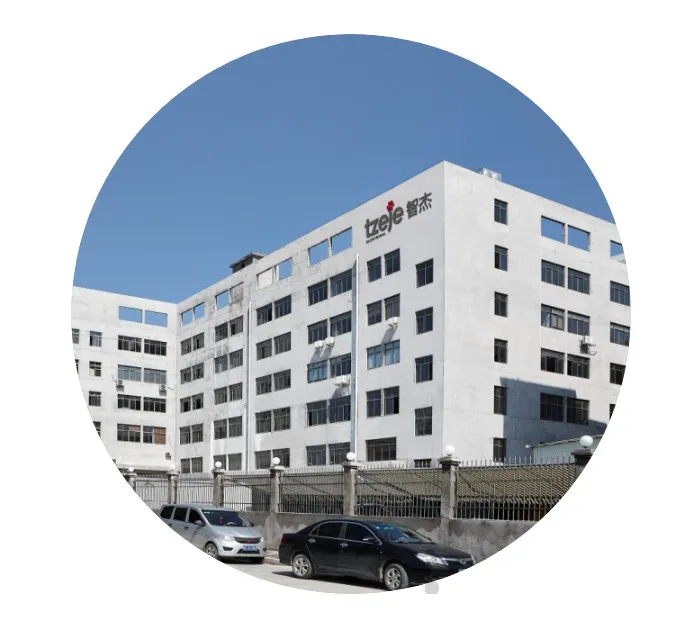

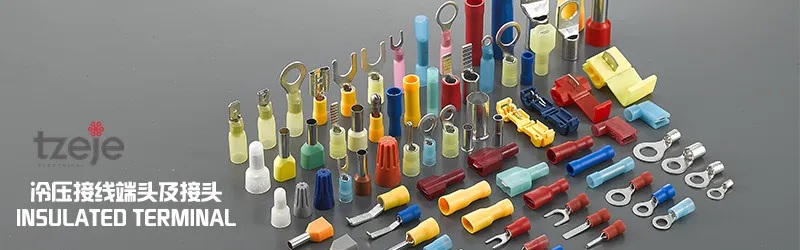

We are a professional manufacturer specialized in designing, development, production, and marketing of various terminal studs, cold press terminals, connectors, spiral type street crimping caps, and cable accessories. Our factory adheres to high technical requirements and quality development standards. Our products have successfully passed ISO9001:2008, CE, ROHS, and SGS certifications.

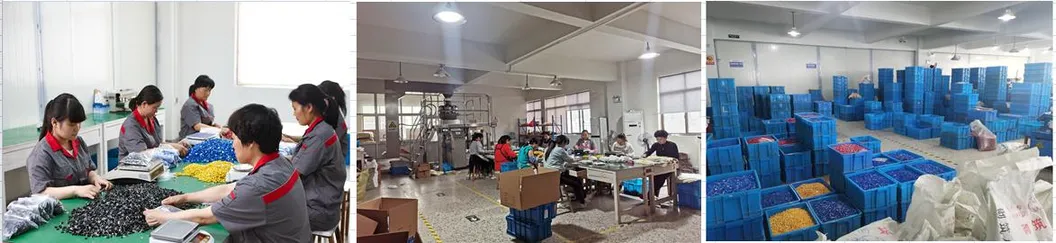

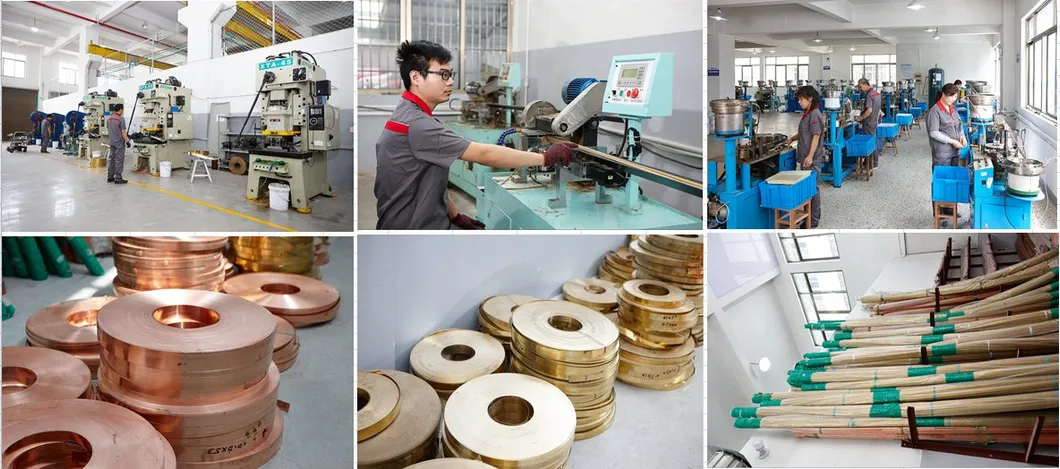

With advanced automation equipment and comprehensive testing sets, we maintain a high-quality management team to ensure a strong brand image. We abide by the quality policy of promoting production with quality and winning benefits through expert management.
