Pdlc Switchable Smart Insulated Dimming Elechromic Glass for Window Door

Basic Specifications

Model NO.

W-DGU -SMART

Type

Pdlc Smart Glass

Glass Thickness

5+5+12A+6

Color

Clear

Usage

Furniture, Door, Building, Window, Facade

Application Area

Interior & Exterior

Production Capacity

1000 SQM Per Month

HS Code

7007290000

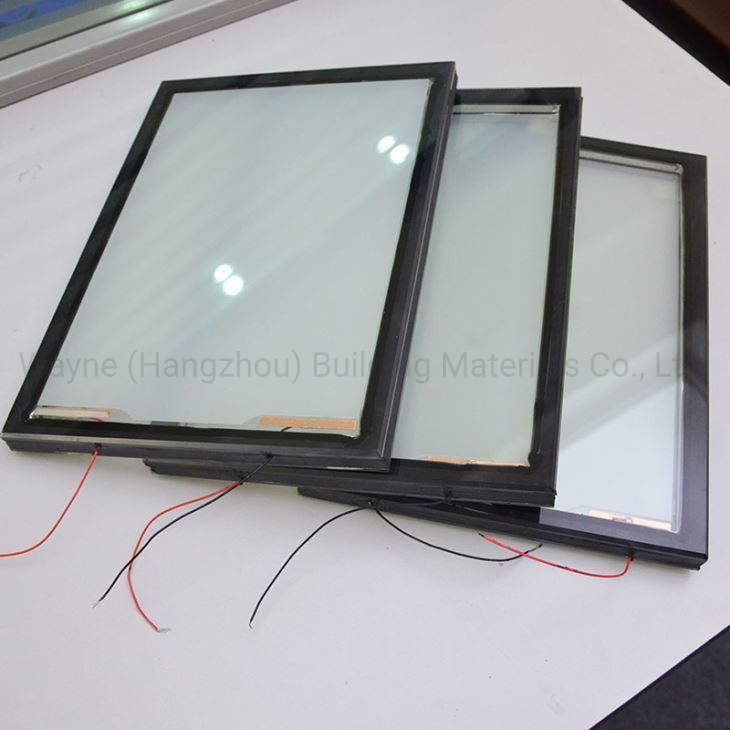

Switchable PDLC Smart Glass

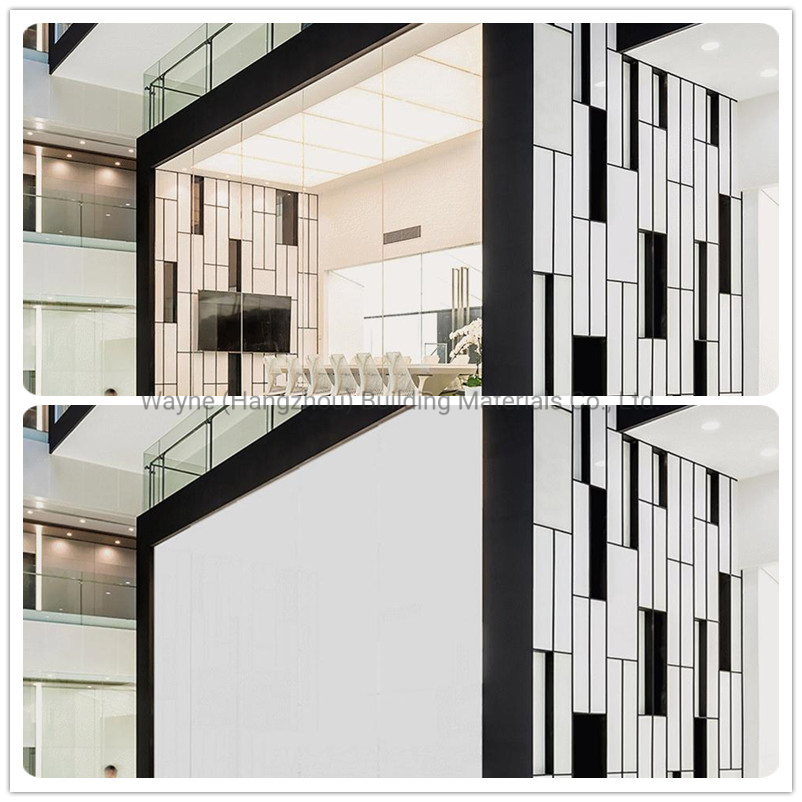

Smart glass is a high-tech laminated glass product consisting of a Polymer Dispersed Liquid Crystal (PDLC) film sandwiched between layers of glass and conductive interlayers. This technology allows the glass to switch from opaque (translucent) to clear (transparent) at the flick of a switch.

💡

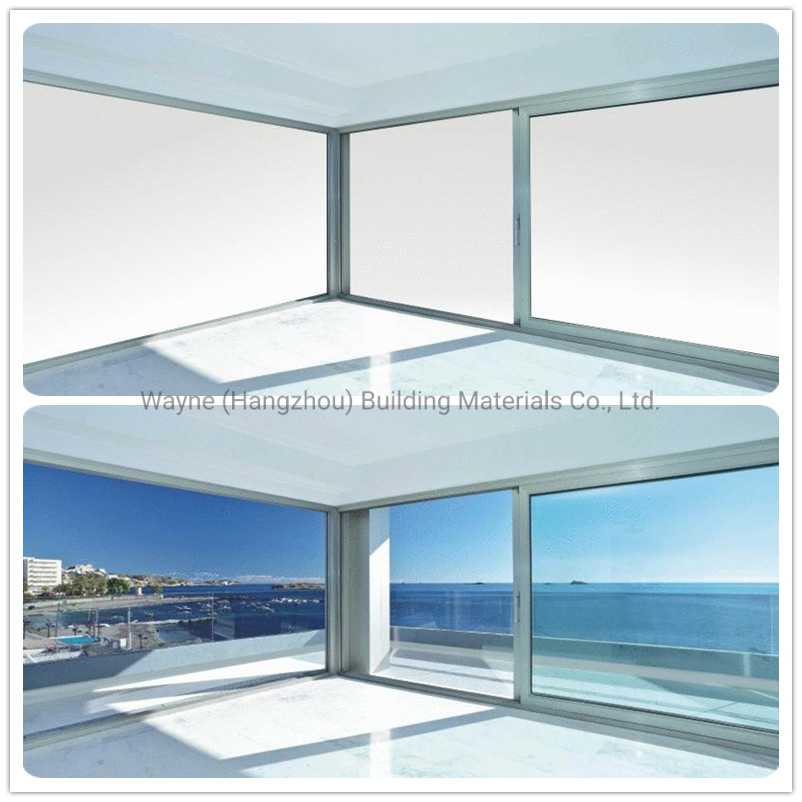

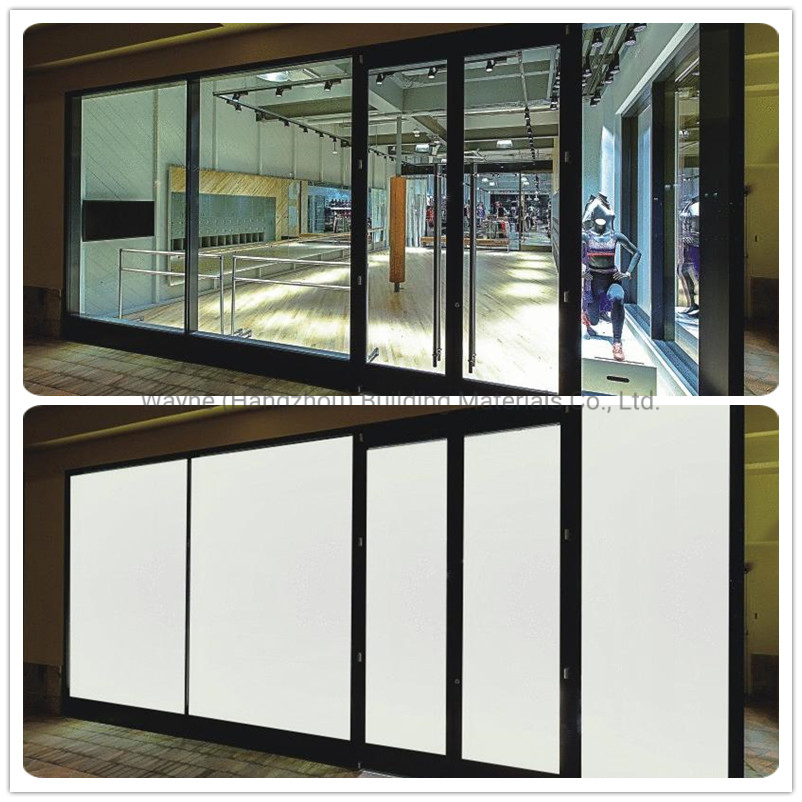

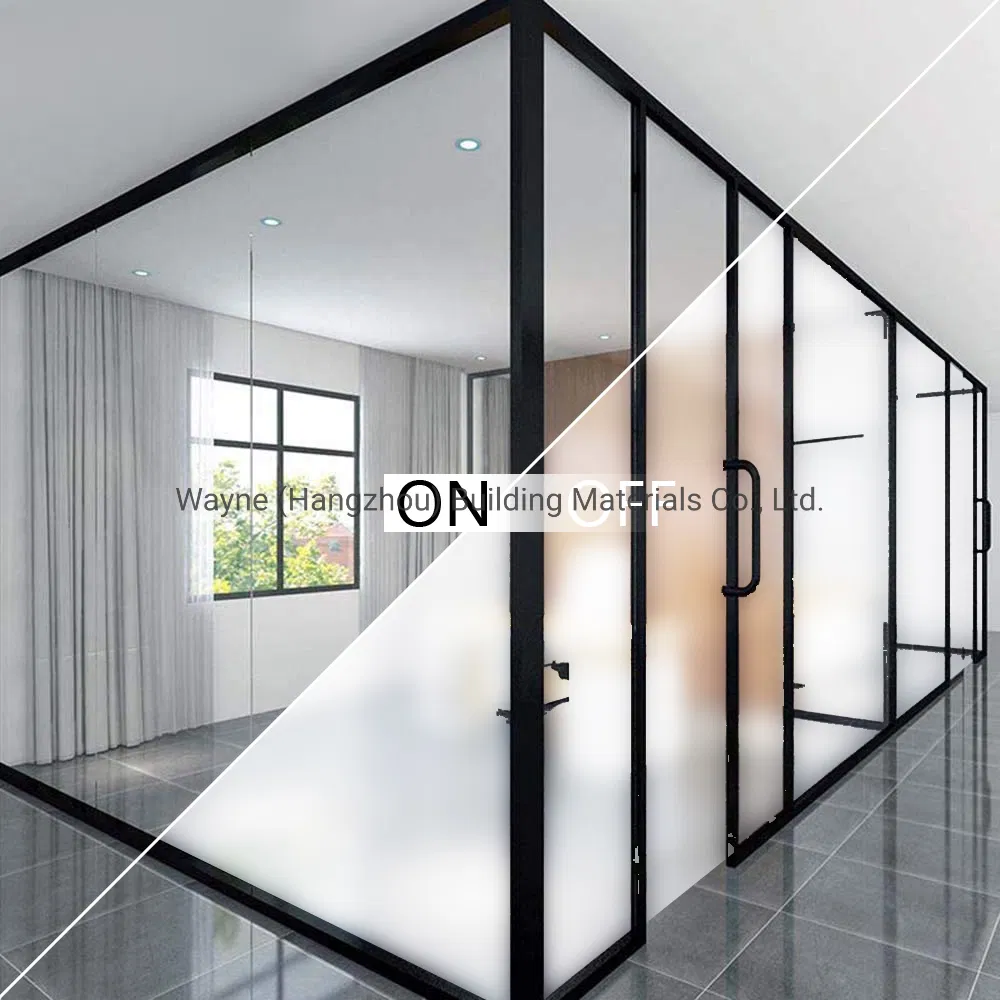

How it works: When electricity is applied, liquid crystals align to make the glass clear. When power is off, they scatter to provide instant privacy.

Technical Parameters

Item	Unit	Criteria	Standard
Rated Voltage (ON)	V	36 / 48 / 60 (AC50Hz)	Multimeter
Power Consumption	w/sq.m	1.5 / 2.5 / 4.0	Instrument Test
Visible Light Transmittance (ON)	%	>85	GB/T 2680-94
Haze (OFF)	%	>95	GB/T 2410-2008
Response Time (ON)	ms	<45	Measuring Instrument
UV Blocking Rate	%	99	ISO 9050-2003
Sound Insulation	dB	>35dB	GB 18910.1-2002
Lifespan (ON)	h	>80,000 hours	GB 18910.5-2008

Key Advantages

Max Width: Up to 2000mm, the largest in the market.
Versatile Production: Processed via autoclave or oven methods.
Custom Shapes: Both flat and curved panels available as per design.
Superior Optics: Highest transparency when powered on and least haze.
Protection: Blocks 98% of UV rays and 90% of infrared rays.
Multi-functional: Doubles as a high-quality projection screen.

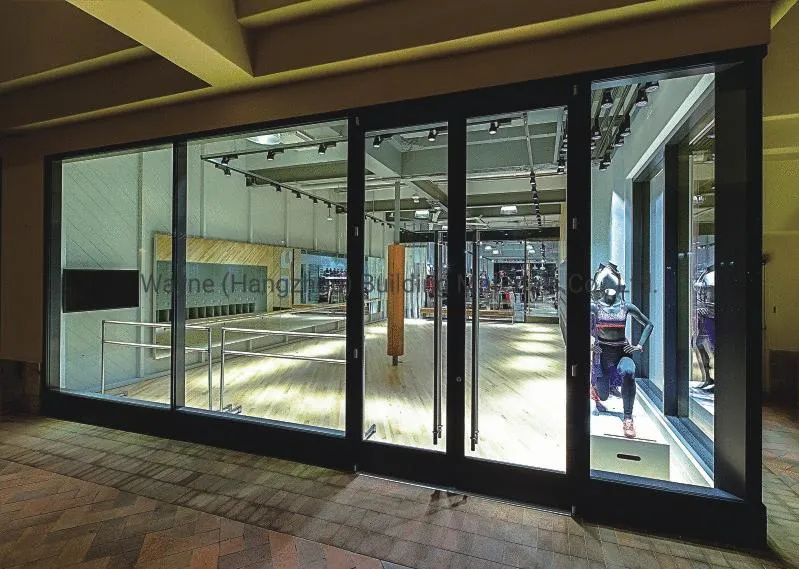

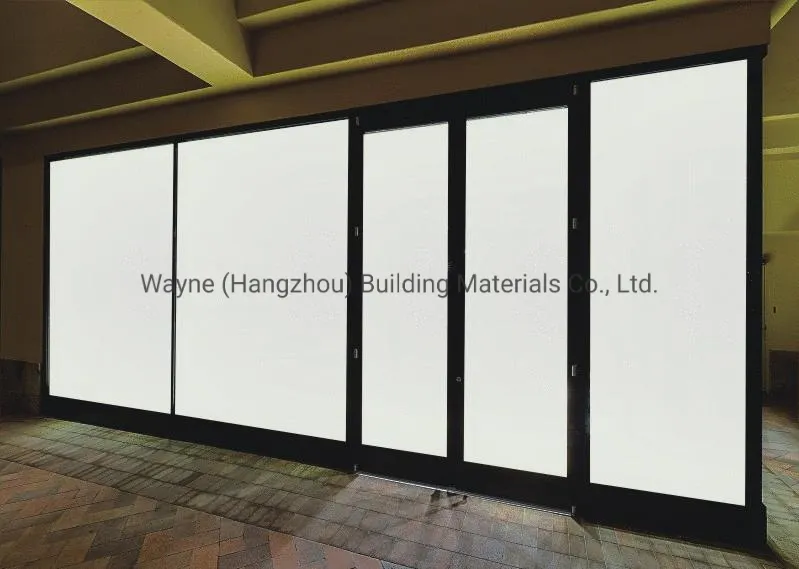

Applications

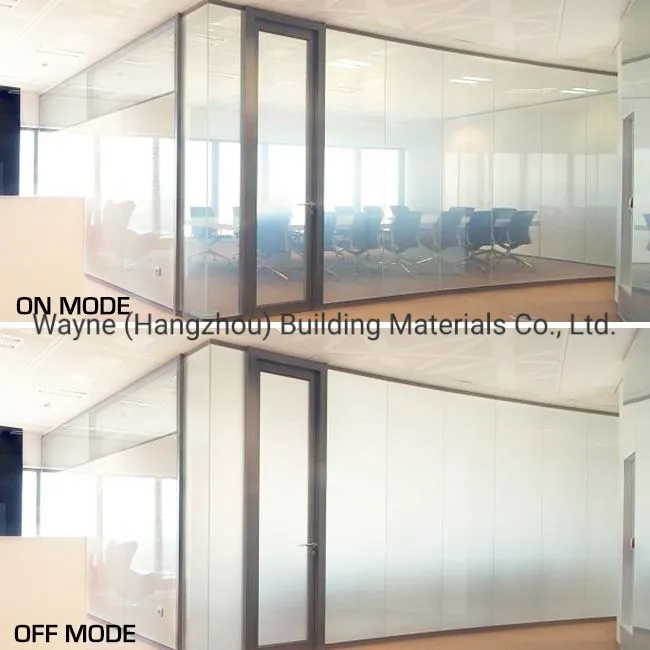

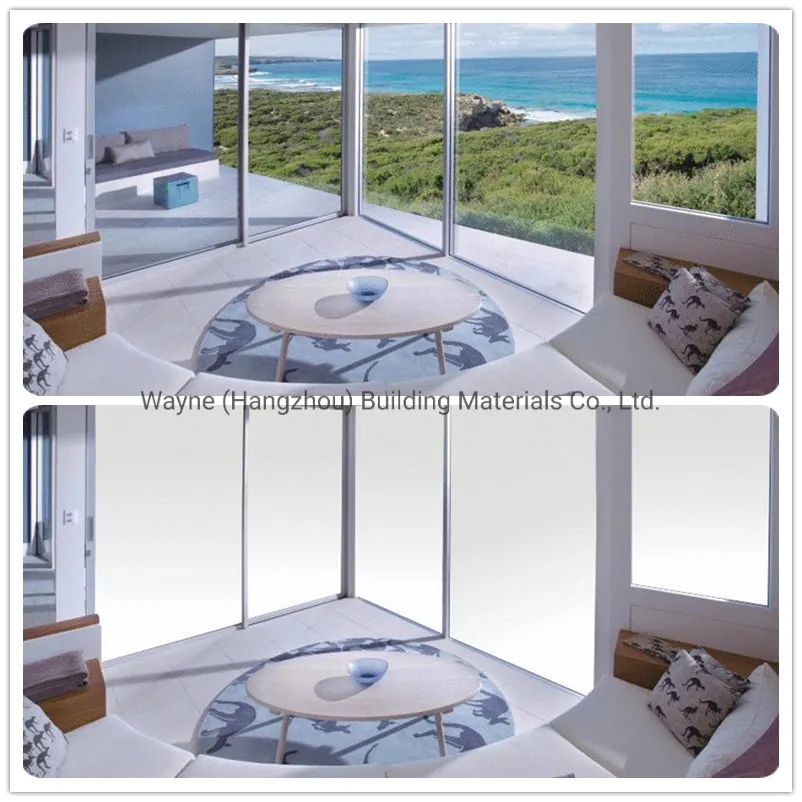

Ideal for Hotel Bathrooms, Office Partitions, Conference Rooms, Facades, and Hospitality Projection.

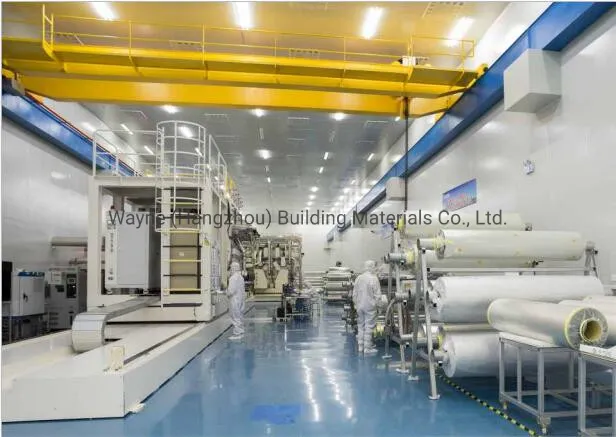

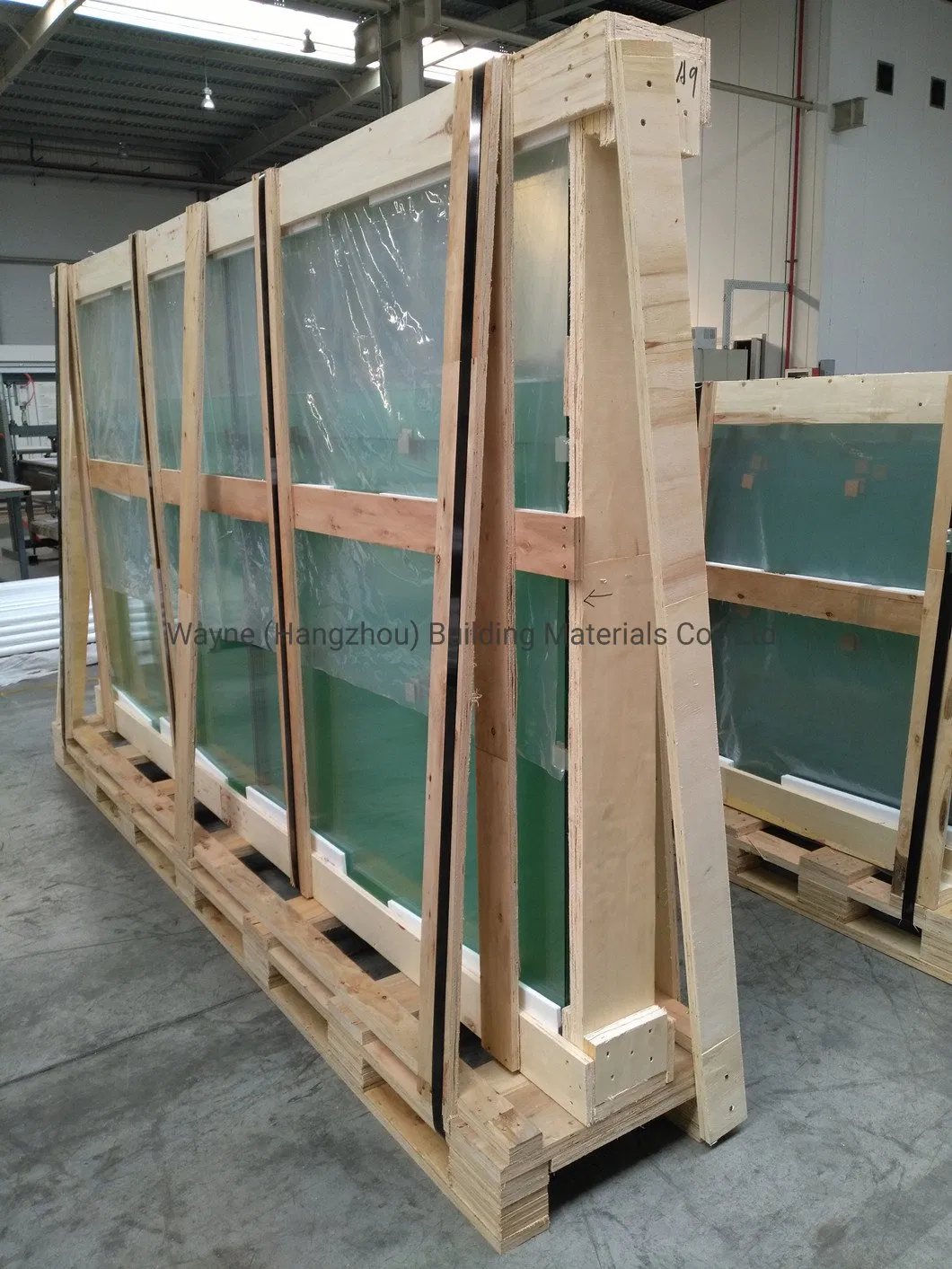

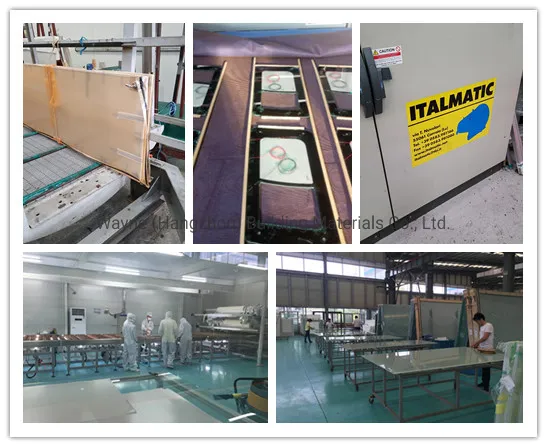

Factory View & Secure Packaging

Frequently Asked Questions

Q1: How does the switchable smart glass work? It uses PDLC (Polymer Dispersed Liquid Crystal) film. When electricity is applied, the crystals align to let light through (transparent). When power is off, the crystals scatter to block the view (opaque).

Q2: Can smart glass be used for outdoor applications? Yes, it can be used for facades and windows. Our smart glass is designed for both interior and exterior applications with proper sealing and insulation.

Q3: Does it block UV rays? Yes, our smart glass blocks over 98% of harmful UV rays and 90% of infrared rays, protecting your interior furniture from fading and reducing heat.

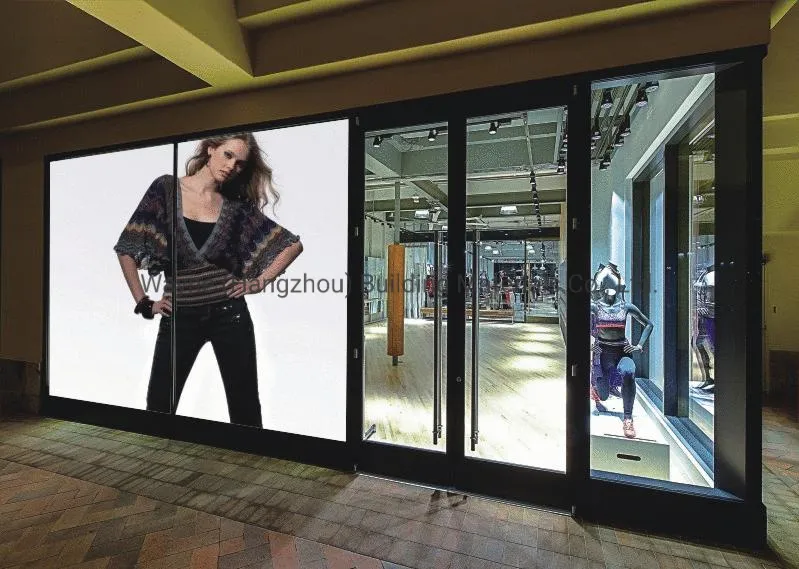

Q4: Can I use it as a projection screen? Absolutely. In its opaque (OFF) state, the PDLC film acts as a high-quality rear projection surface, making it ideal for meeting rooms and storefront displays.

Q5: What is the maximum size available? We provide panels up to a maximum size of 2000mm * 3500mm, which is among the largest available in the market.

Q6: Is the glass safe if it breaks? Yes, it is a safety laminated glass. If the glass breaks, the interlayer film holds the fragments together, preventing injury.
