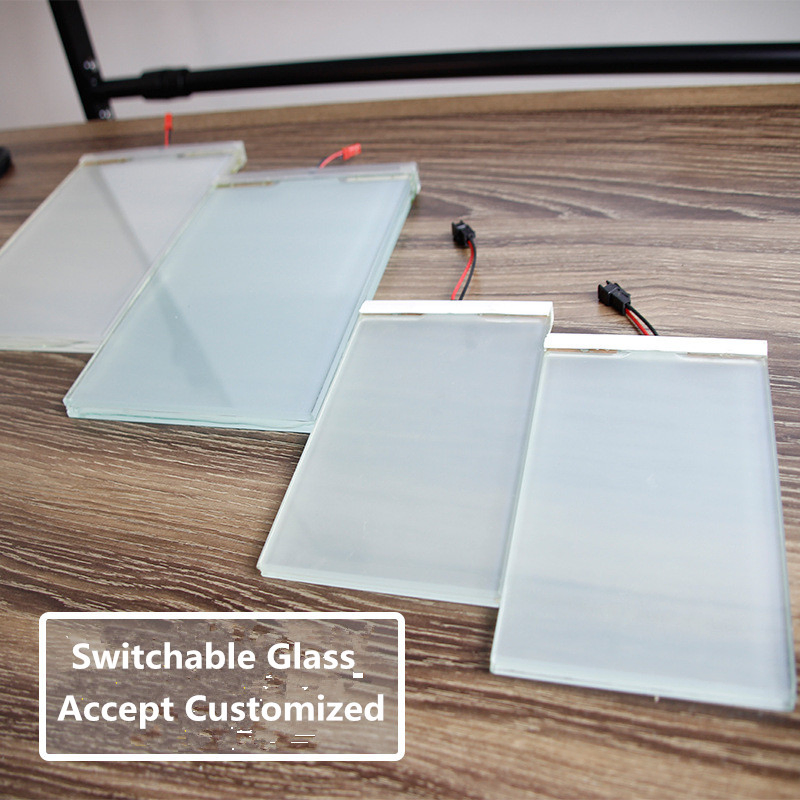

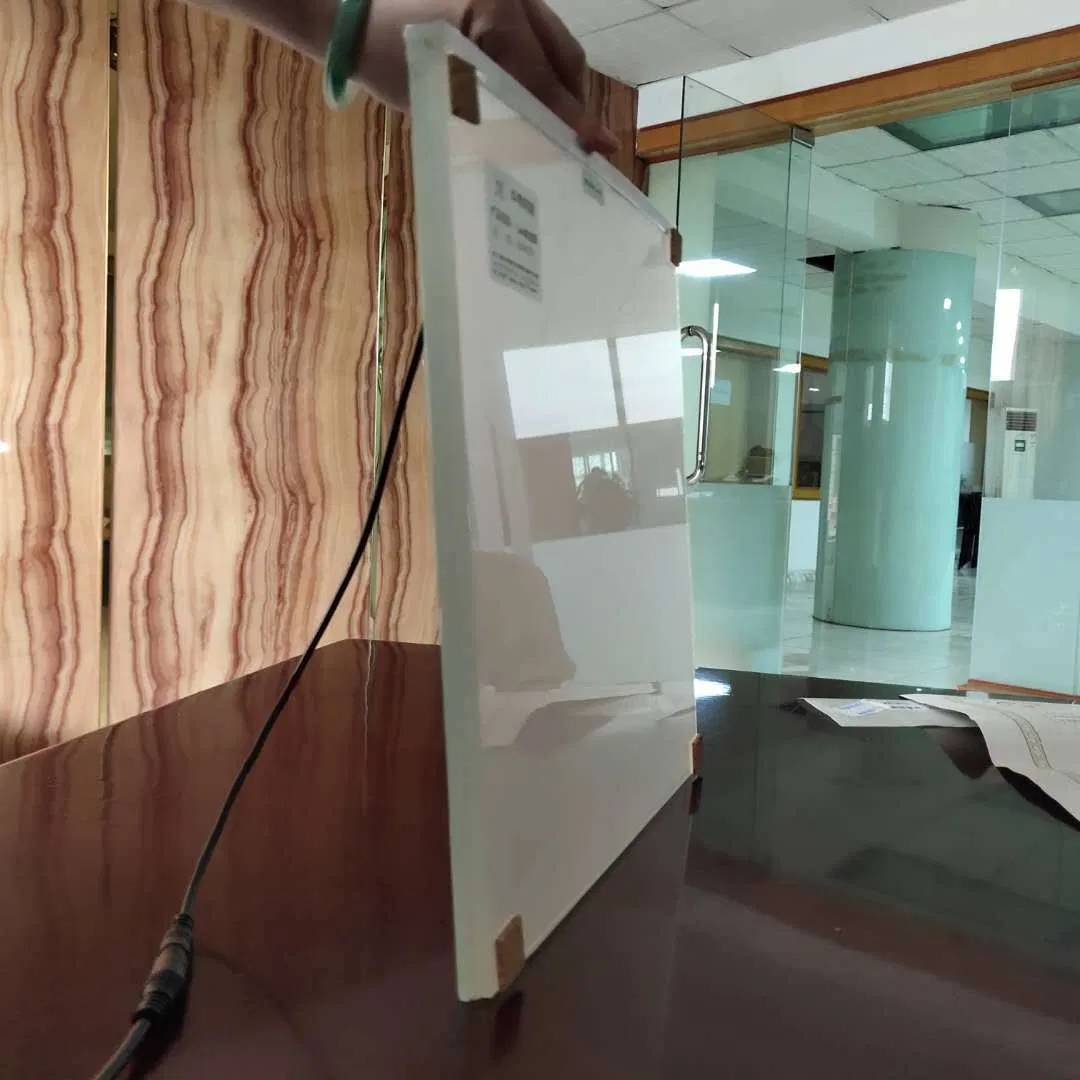

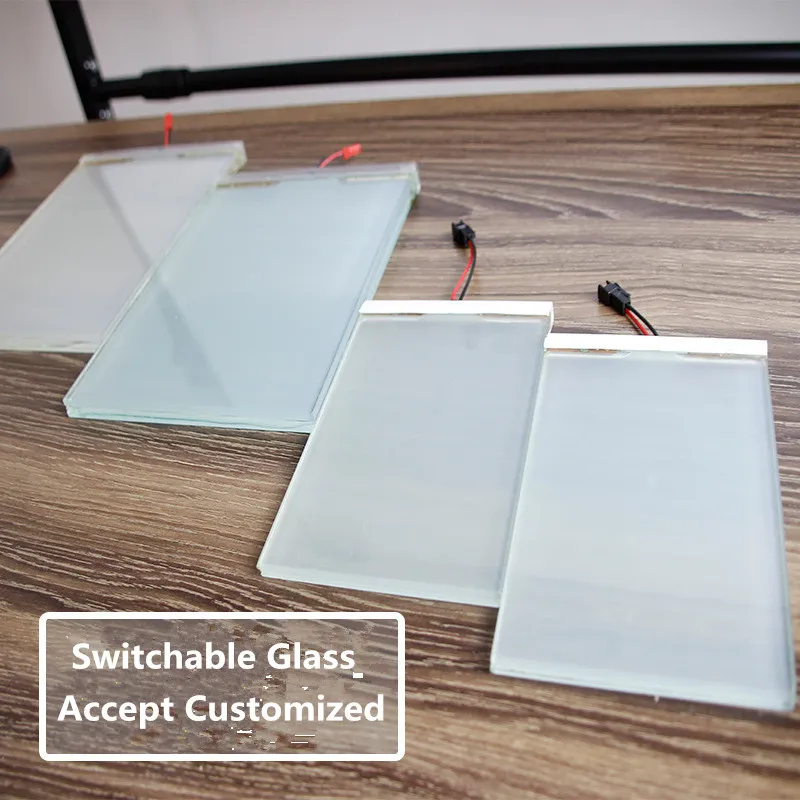

Switchable Glass (Smart Glass) is a high-tech laminated glass product consisting of a Polymer Dispersed Liquid Crystal (PDLC) film sandwiched between layers of glass and conductive interlayers.

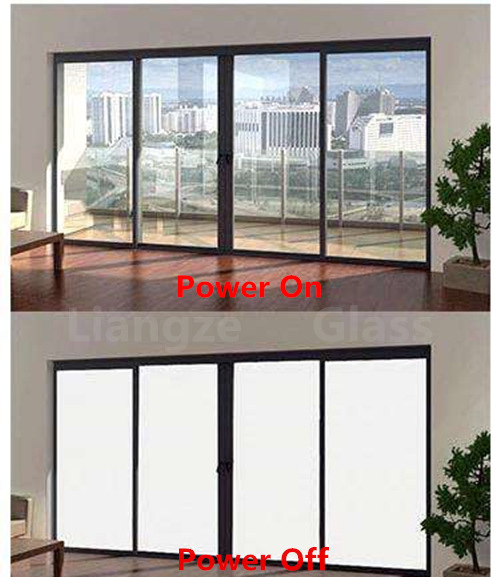

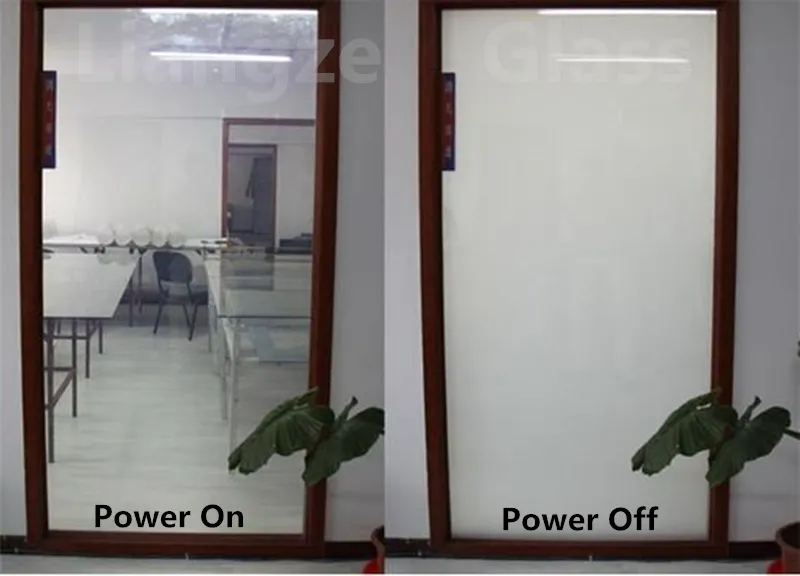

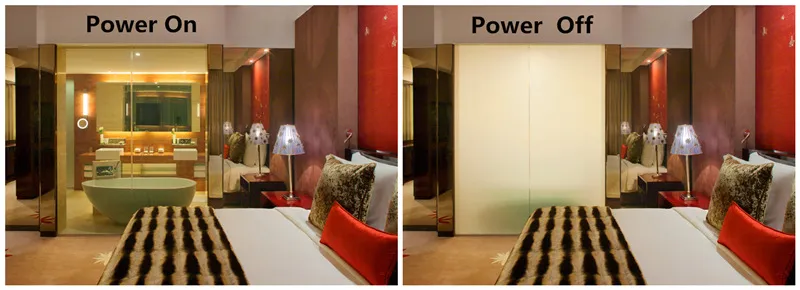

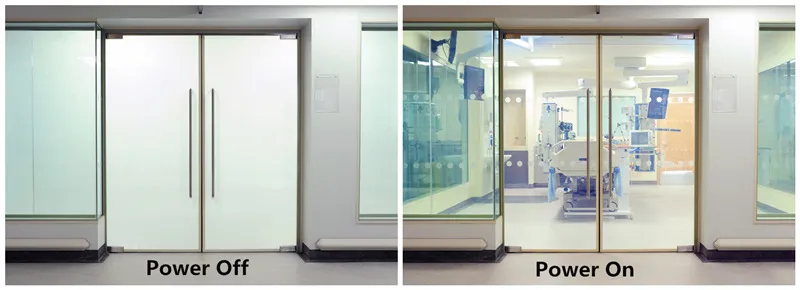

This innovative technology allows for the visual appearance of the glass to change from opaque (translucent) to clear (transparent) at the flick of a switch. It is clear when powered on and becomes opaque when the power is off.
Instant control over transparency status at any time for ultimate privacy.
The PDLC and photographic films provide significant sound damping effects.
Blocks 90% of infrared rays and 98% of UV rays, protecting furniture from fading.
High impact resistance; prevents shards from splashing if the glass is broken.
Acts as an excellent projection screen for high-lumen rear projection imaging.
| Technical Data Sheet | |
|---|---|
| Product Name | Switchable Smart Privacy Glass / PDLC Film |
| Glass Thickness | 4+4mm, 5+5mm, 6+6mm, 8+8mm (Customizable) |
| PDLC Film Thickness | Approx. 1.14mm |
| Control Ways | Switch, Voice, Remote, Network Control |
| Operating Voltage | 40-60VAC |
| Power Consumption | Less than 5w/m2 |
| Response Time | On to Off < 100ms | Off to On < 10ms |
| Lifespan | > 10 years / 100,000 switches |
