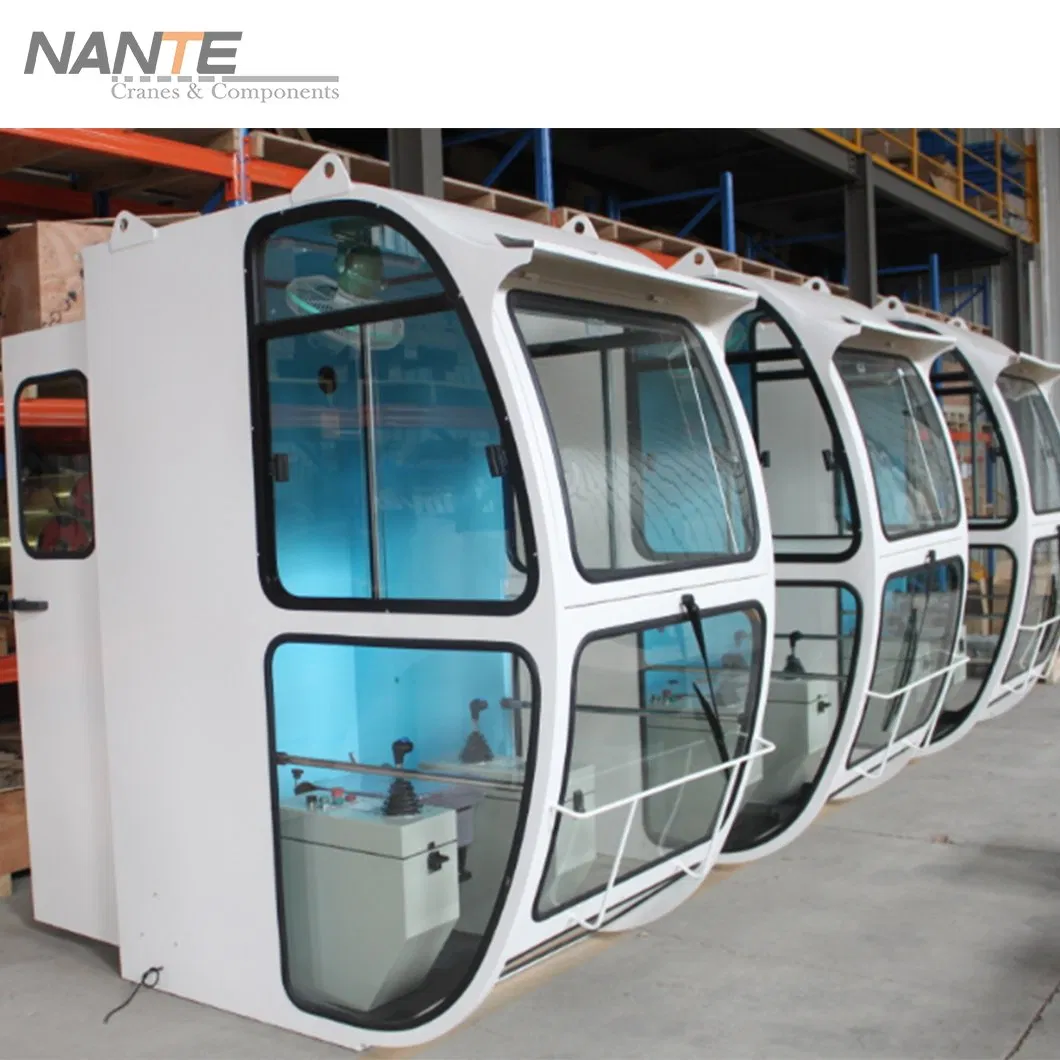

Crane Cabin Operating Room with Air Conditioner for Overhead Crane and Gantry Crane

Customization: Available
Working Temperature: -40 Degrees to 50 Degrees
Material: Steel,IP65 Stainless Steel,Tempering Glass

Product Description

📋

Basic Information

Model NO.
NTC
Application
Overhead/Gantry/Tower Crane/Industries
Color
Yellow/White/Red
Equipment

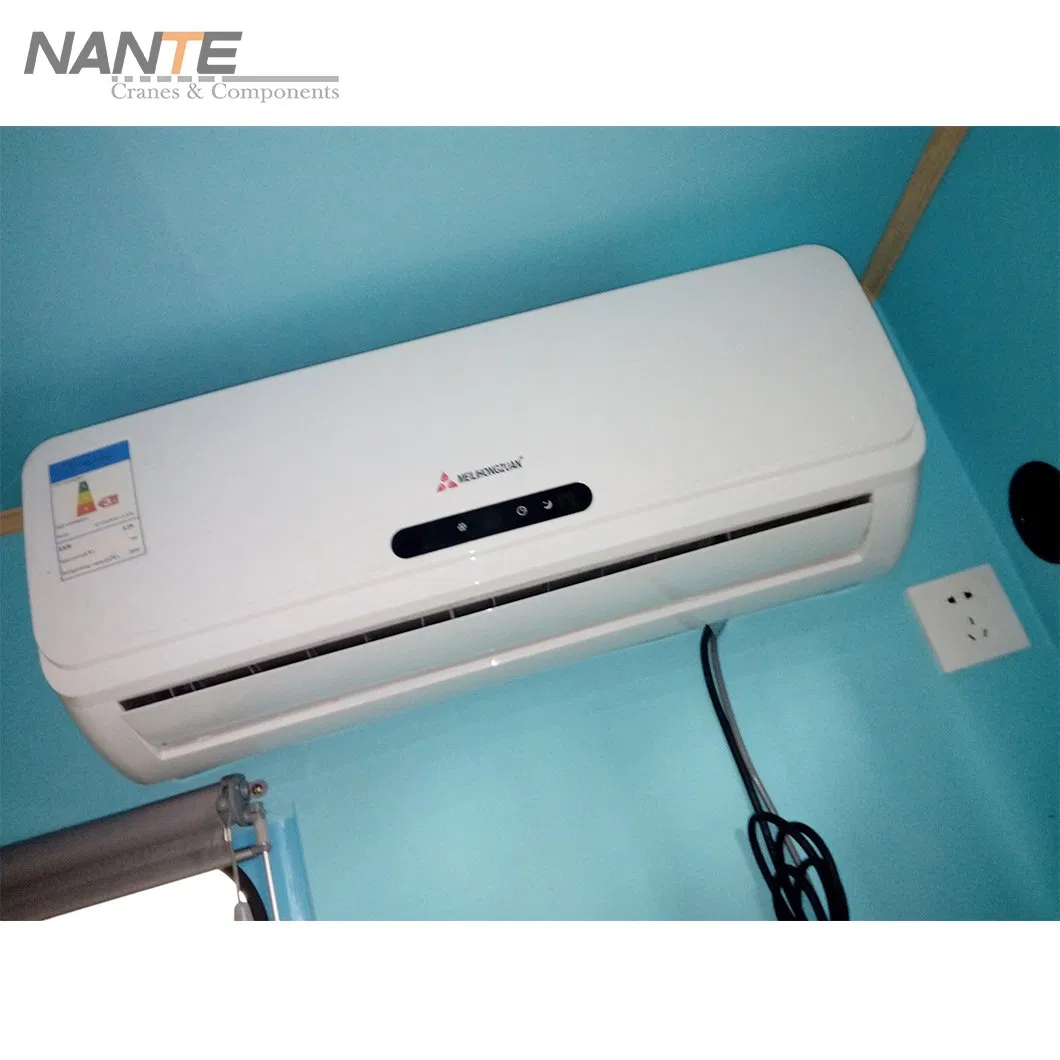

Air Conditioner/Fan/Curtain
Specification
1.1m, 1.4m, 1.5m, 1.8m
Origin
China
HS Code
8537109090
Capacity
10,000 Units
📦

Packaging & Delivery

Package Size
2380.00cm * 1220.00cm * 1920.00cm
Gross Weight
520.000kg
Packaging
Bubble Wrap
🏗️

Product Description

Hot Sale Operating Room Crane Cabin with Air conditioner for Overhead Crane and Gantry Crane

Crane cabin is also called crane operator cabin, crane drive cab, hoist safe operation, industrial operation cabin, heavy machinery control unit, etc. The cabin is one of the most important parts of the crane. The crane cabin is a critical facility to ensure crane operator safety. From this crane cab, the crane operators can perform real-time monitoring of the operating status associated with the crane, lifting hook and lifted goods. The design stability of cabin will directly affect the driver's safety and the good view provides the driver with comfortable operating conditions.

We have many years of experience in customized operator and crane cabins for all purposes for the industry, where the operator works in a safe and comfortable environment. In close cooperation with customers, crane operators and machine operators we have developed a range of cabins that meets all demands as to ergonomics, visibility, comfort and safety. Our crane cabins are subject to the strictest quality controls to ensure that every product is in excellent condition.

💎 Key Advantages

  • Adopting high-quality cold-rolled steel plate and advanced manufacturing technology: smooth, beautiful, and anti-corrosive.
  • Window: 5mm tempered glass, view angle >230°, transparency >80% equipped with bottom window.
  • Non-slip insulating rubber carpet.
  • Epoxy zinc-rich primer and polyurethane topcoat paint (no less than 160μm).
  • Fireproofing interior decoration with sound and heat insulation material.
  • Flexible operation and simple control for various crane types.
  • Suitable for 380V AC 50Hz and 220V DC power systems.

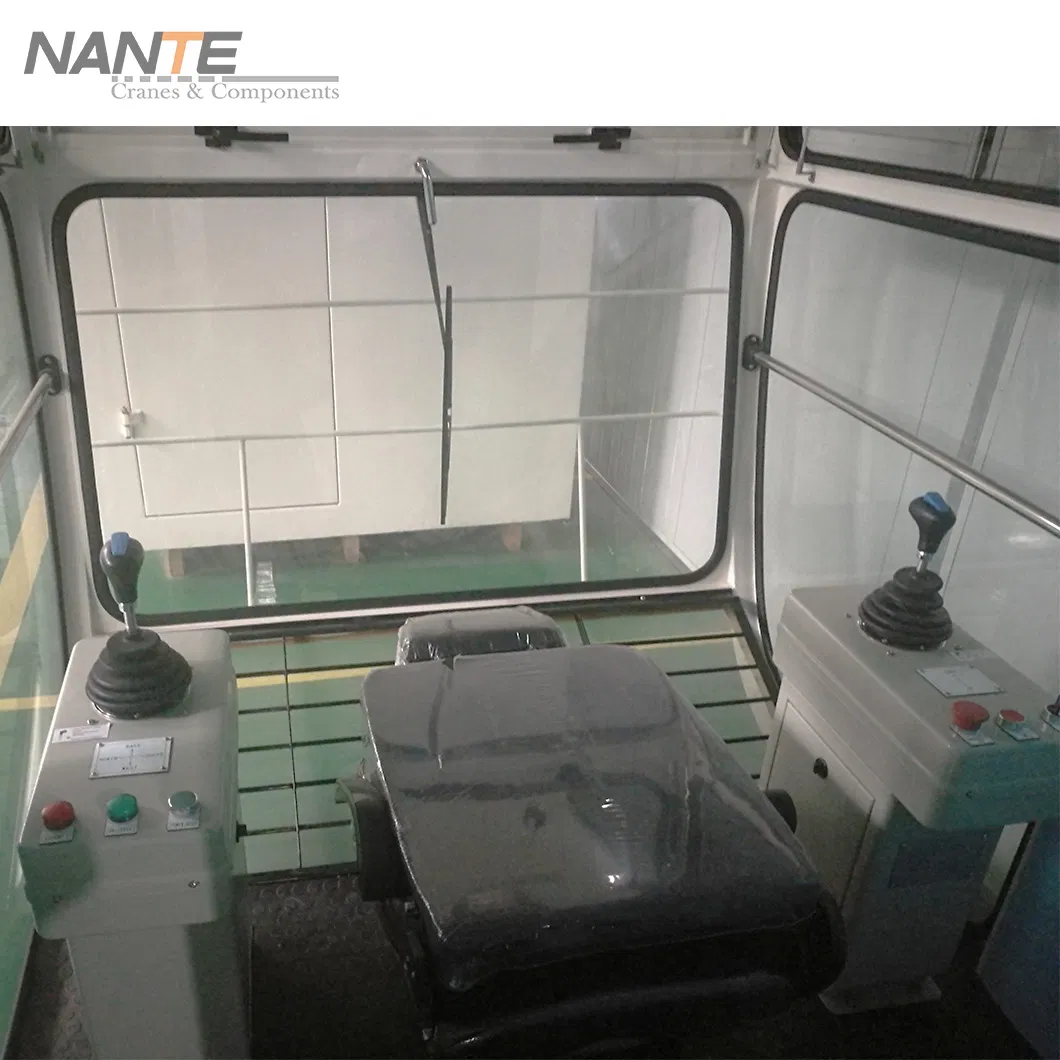

  • Premium seats for a comfortable ride and broad operational view.
📊

Technical Data

  • Cabin Width: 1.1m, 1.4m, 1.5m, 1.8m
  • Working Temperature: -40ºC to 50 ºC
  • Material: 2.0mm cold-rolled board; 5mm gypsum board interior.
  • Glass: 5mm thickness tempered glass.
  • Painting: Outer surface paint thickness ≥ 90um.
  • Standard Configuration: Fire extinguisher, LED light, manual wiper, fan.
  • Optional Configuration: Walking platform, main command, seat, air-conditioning, etc.

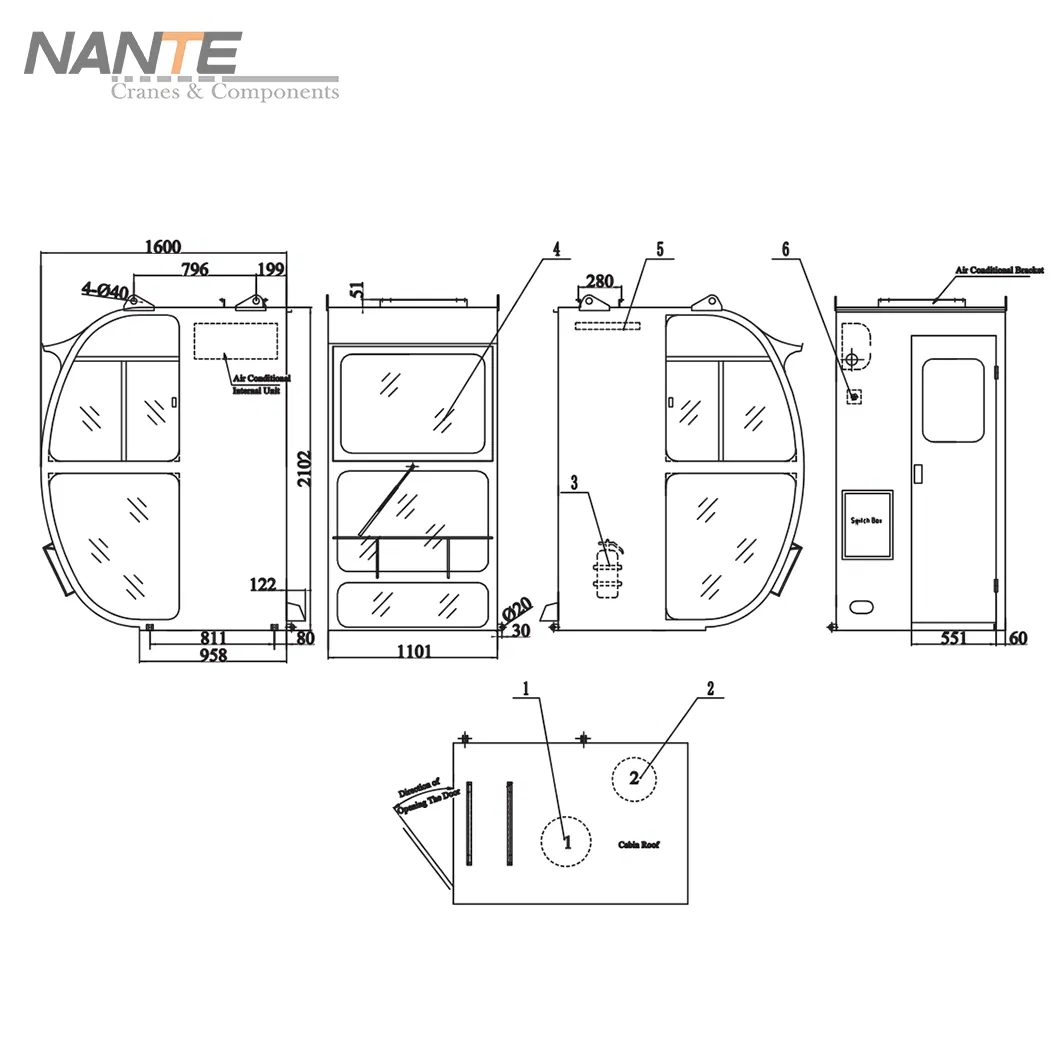

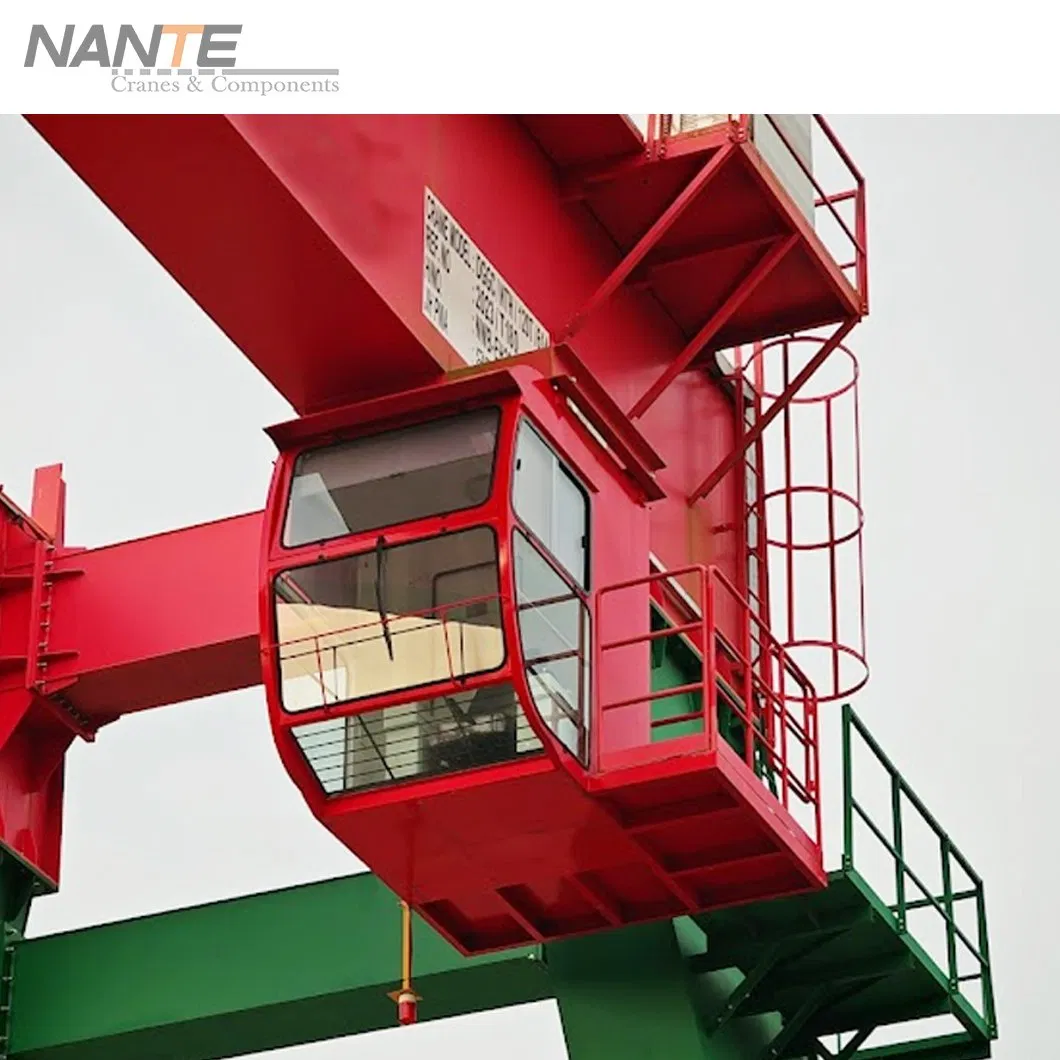

Crane Cabin View 1

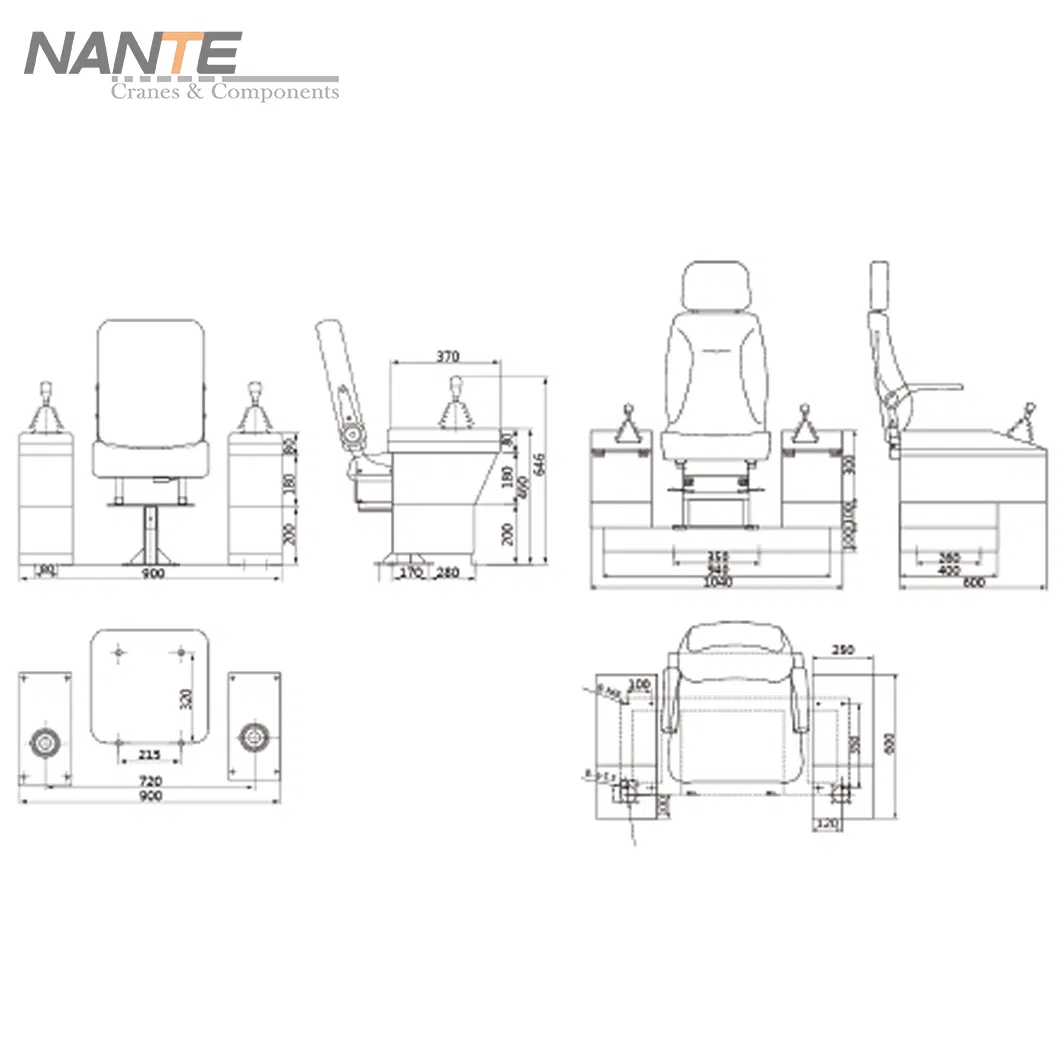

Crane Cabin View 2
⚙️

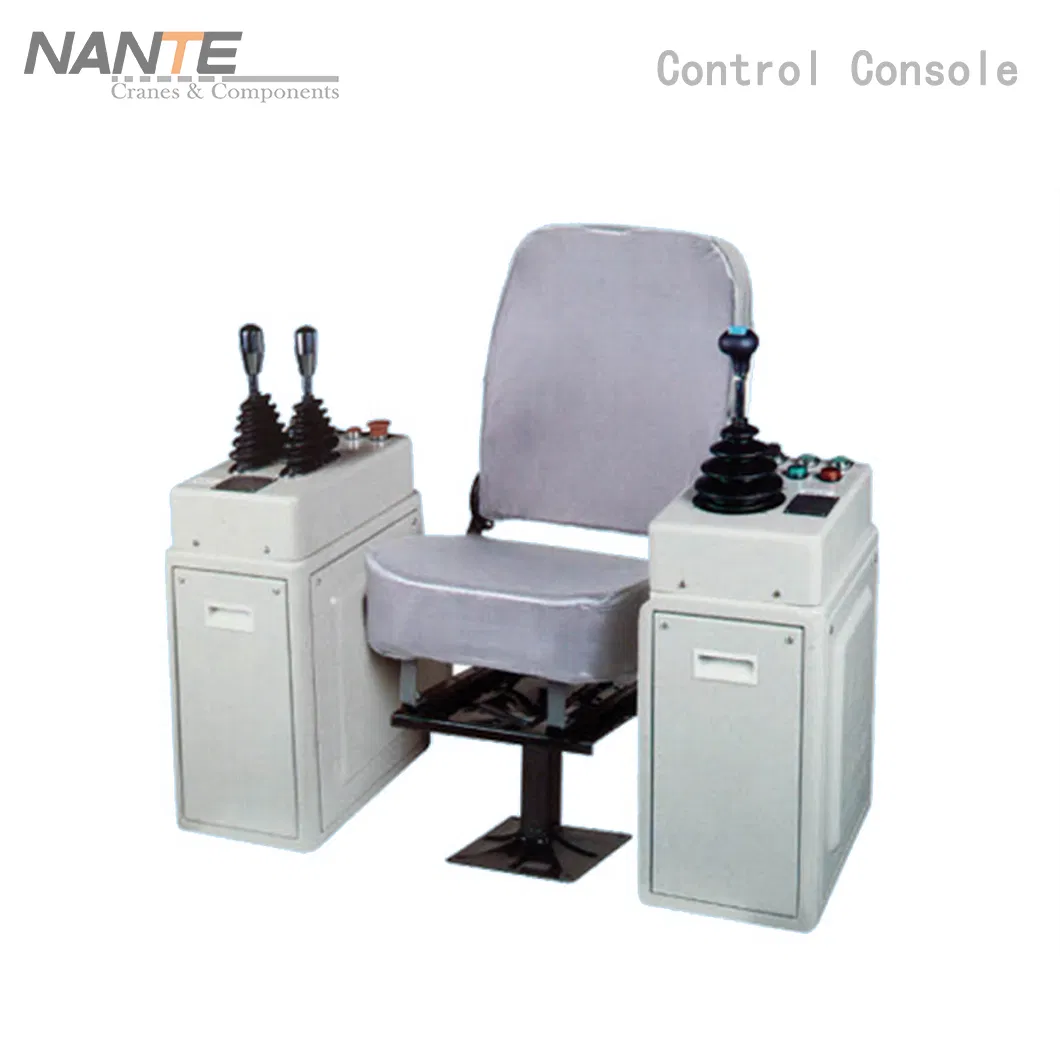

Control Console Parameters

Technical Data of Control Console
Working Temp -40ºC to 50ºC Max Operating Directions 8
Handle Operating Force ≤ 20N Mechanisms Controlled 2
Mechanical Life 1.6 million times Max Shift Steps 5
Power Supply AC Max Contacts/Mechanism 11
Rated Current 10A Electrical Durability 1 million times
🏭

Applications

The crane cabin can be installed on types of cranes, such as overhead crane, gantry crane, etc. It is widely used in various industries, including port industry, container and storage, waste disposal, building industry, papermaking, mechanical machining, and material handling. It provides the operator with safety, a wide view, and protection from noise, uncomfortable temperature, and vibration.
🏢

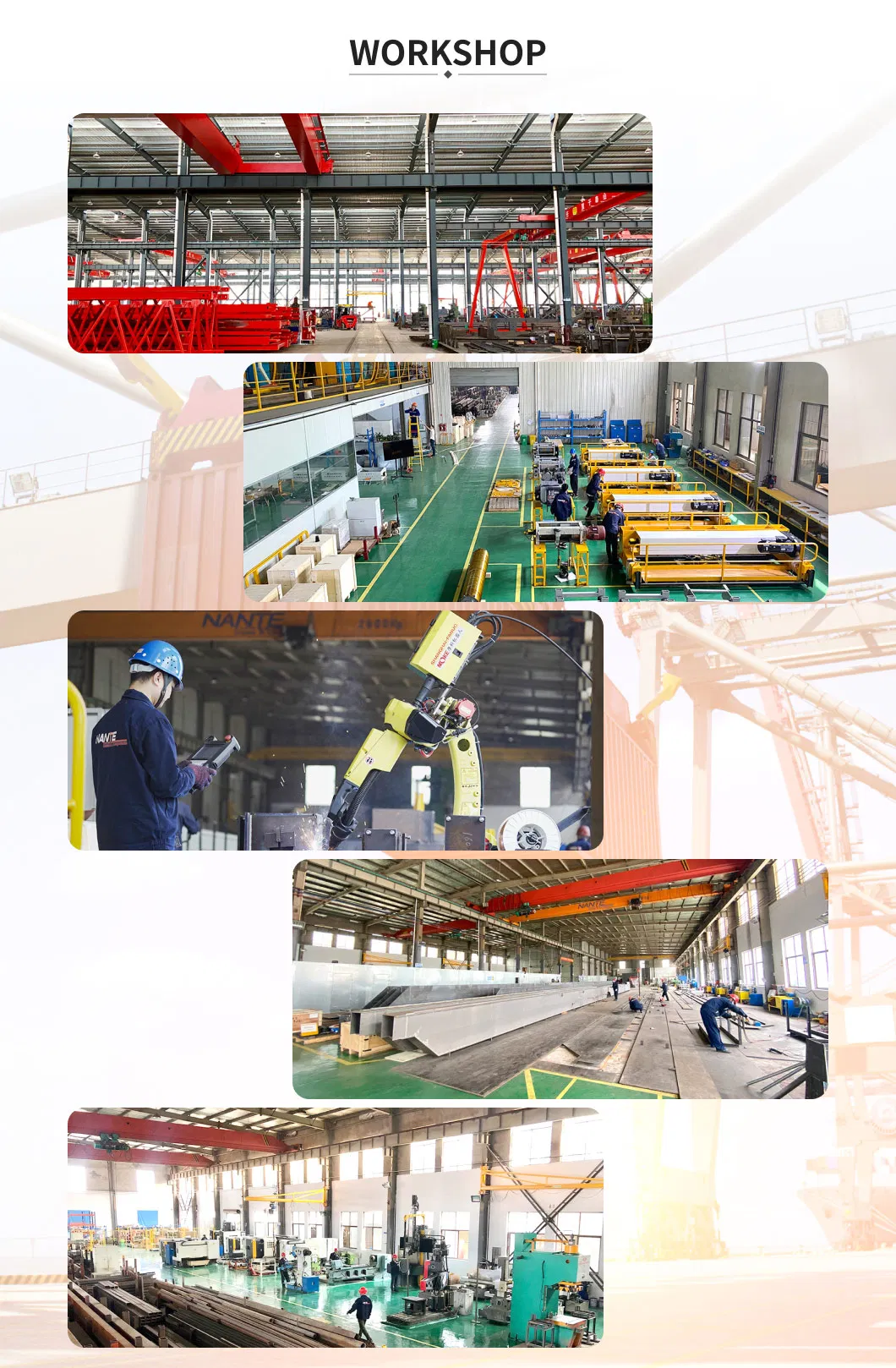

Gallery & Facilities

Frequently Asked Questions

Are you a Manufacturer or Trading Company?
We are an integrated industrial and trade enterprise. We have our own R&D team, factory, and marketing department.
Which standards do your crane components apply to?
Our cranes are designed and manufactured based on FEM, CMAA, ISO EN, and GB standards.
How do you ensure product quality?
All processes strictly adhere to ISO-9001 procedures, including Material Traceability, ISO WPQR, welder certification, NDT for welding, and full load testing before delivery.
What is the warranty period?
Our warranty period is 12 months after the cargo leaves the port. We provide technical support via email or video conference and can ship spare parts by air if needed.
Do you accept OEM business?
Yes, we perform many OEM productions for famous crane brands and customers worldwide.
What is the estimated delivery time?
Depending on the capacity and components, delivery generally takes between 4 to 8 weeks.
