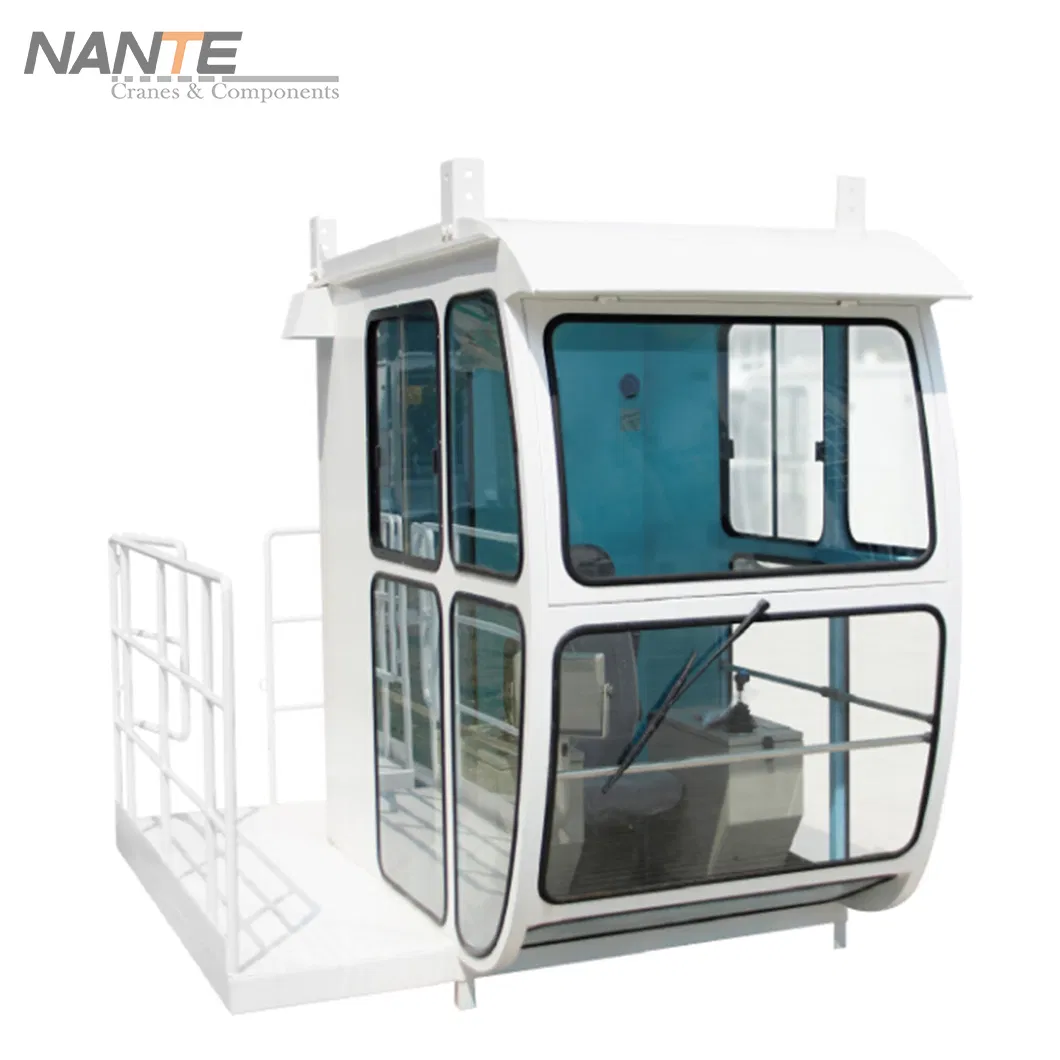

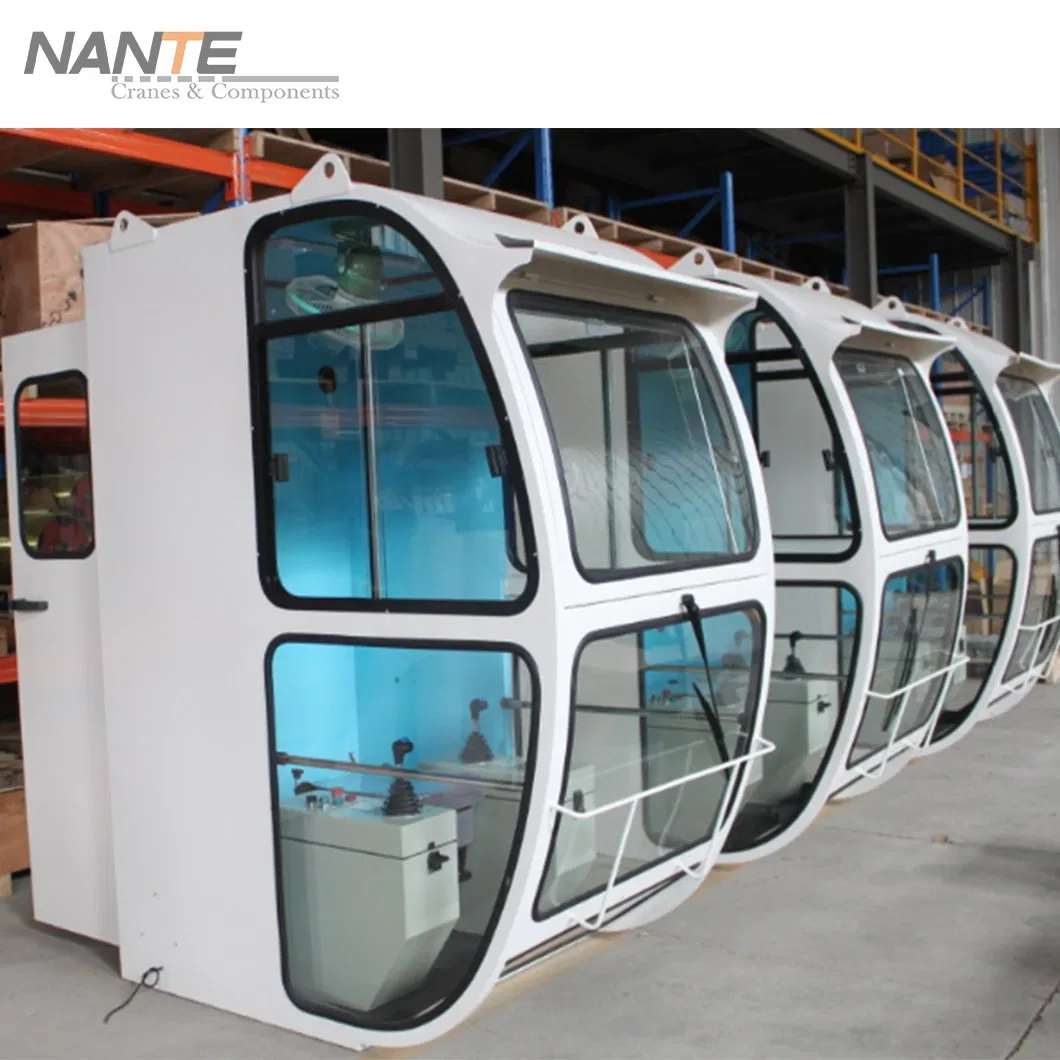

High Quality Crane Control Cabin With Joystick

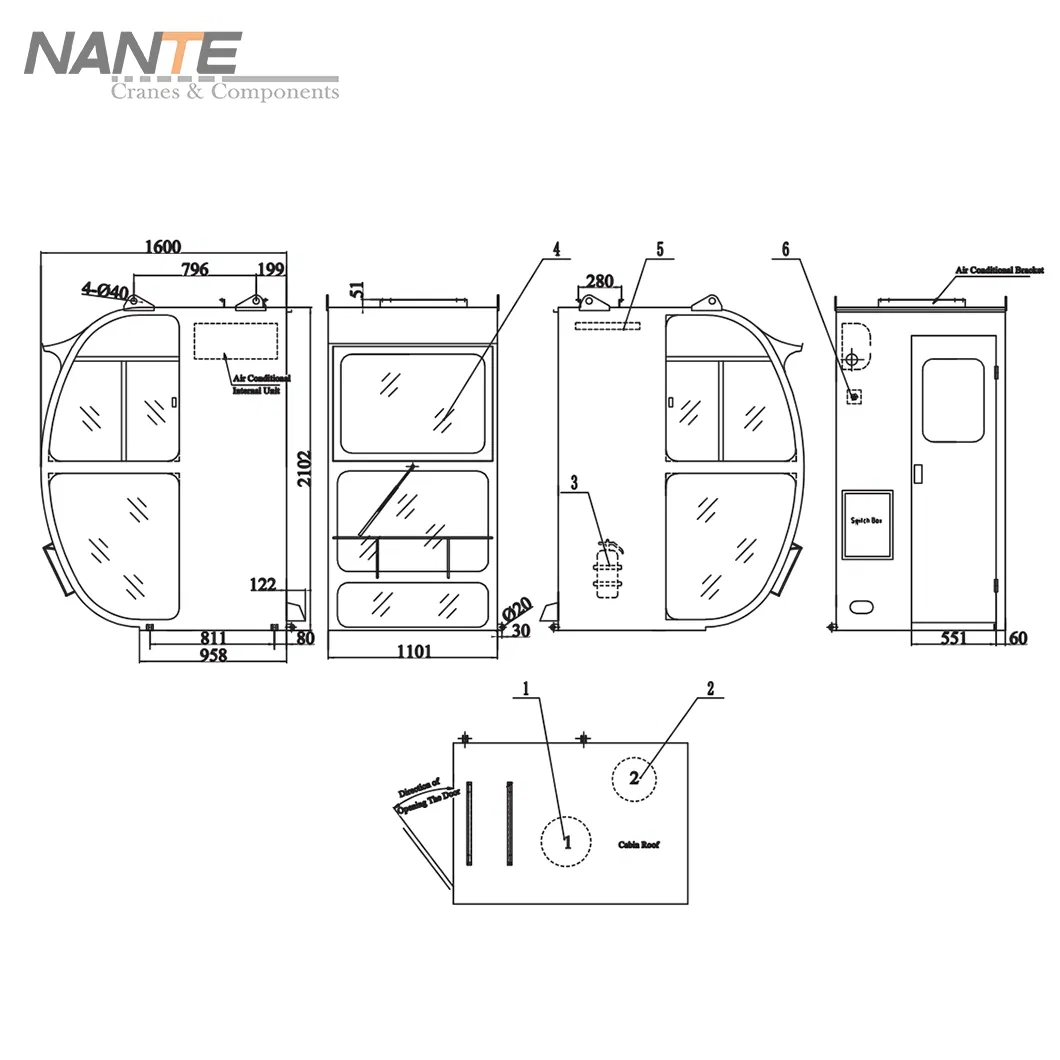

The crane cabin is a critical facility to ensure crane operator safety. From this crane cab, operators can perform real-time monitoring of the operating status associated with the crane, lifting hook, and lifted goods. The design stability directly affects the driver's safety, and the excellent visibility provides comfortable operating conditions.
Developed with a focus on ergonomics, visibility, comfort, and safety, these cabins meet strict quality controls to ensure every product is in excellent condition.

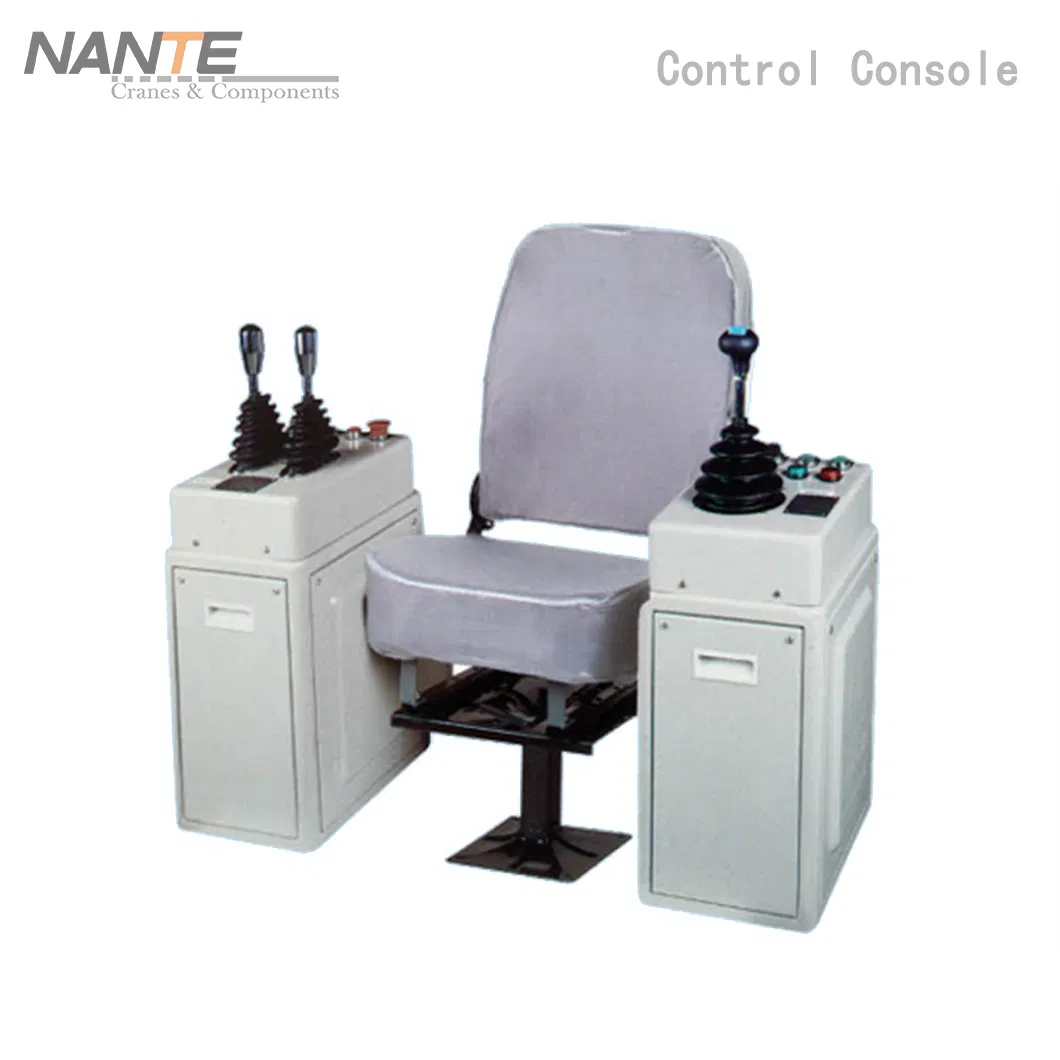

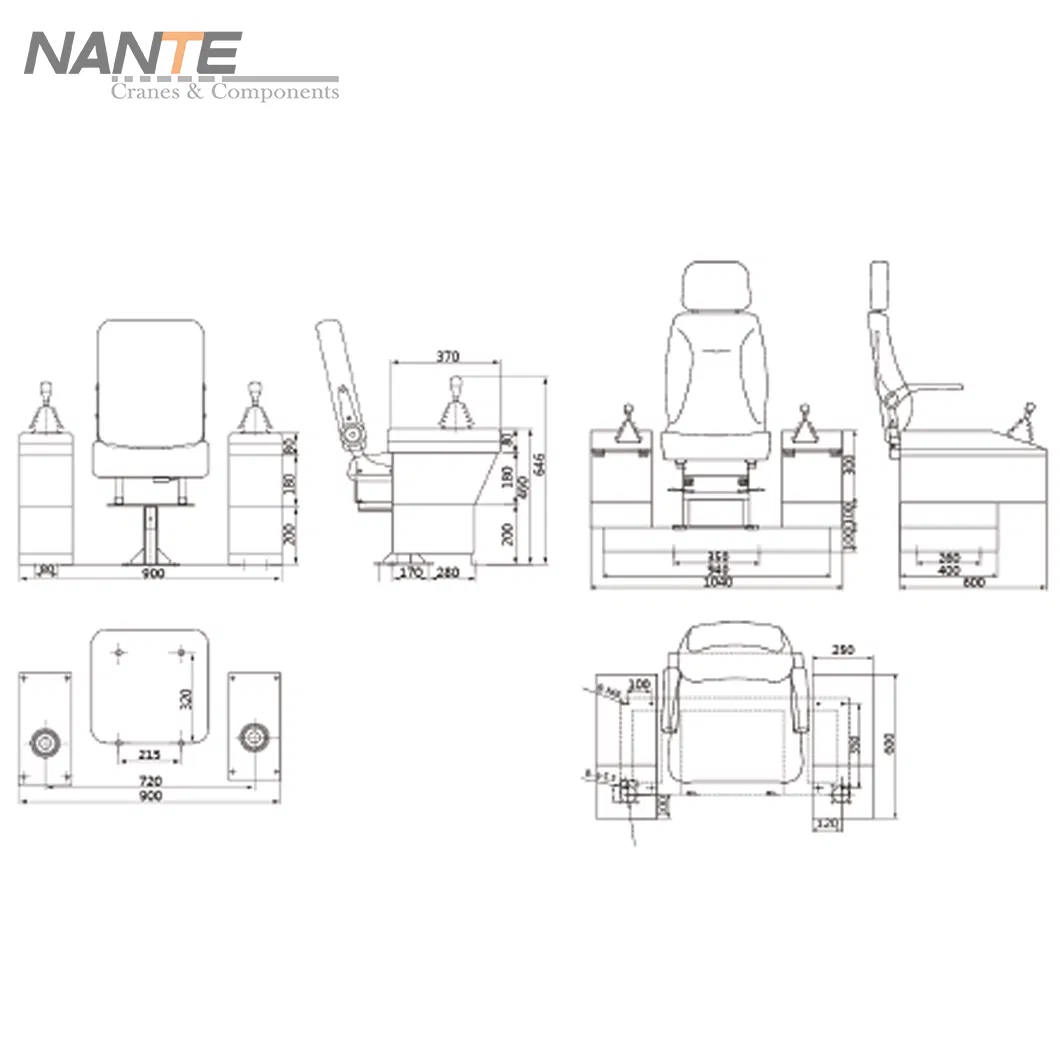

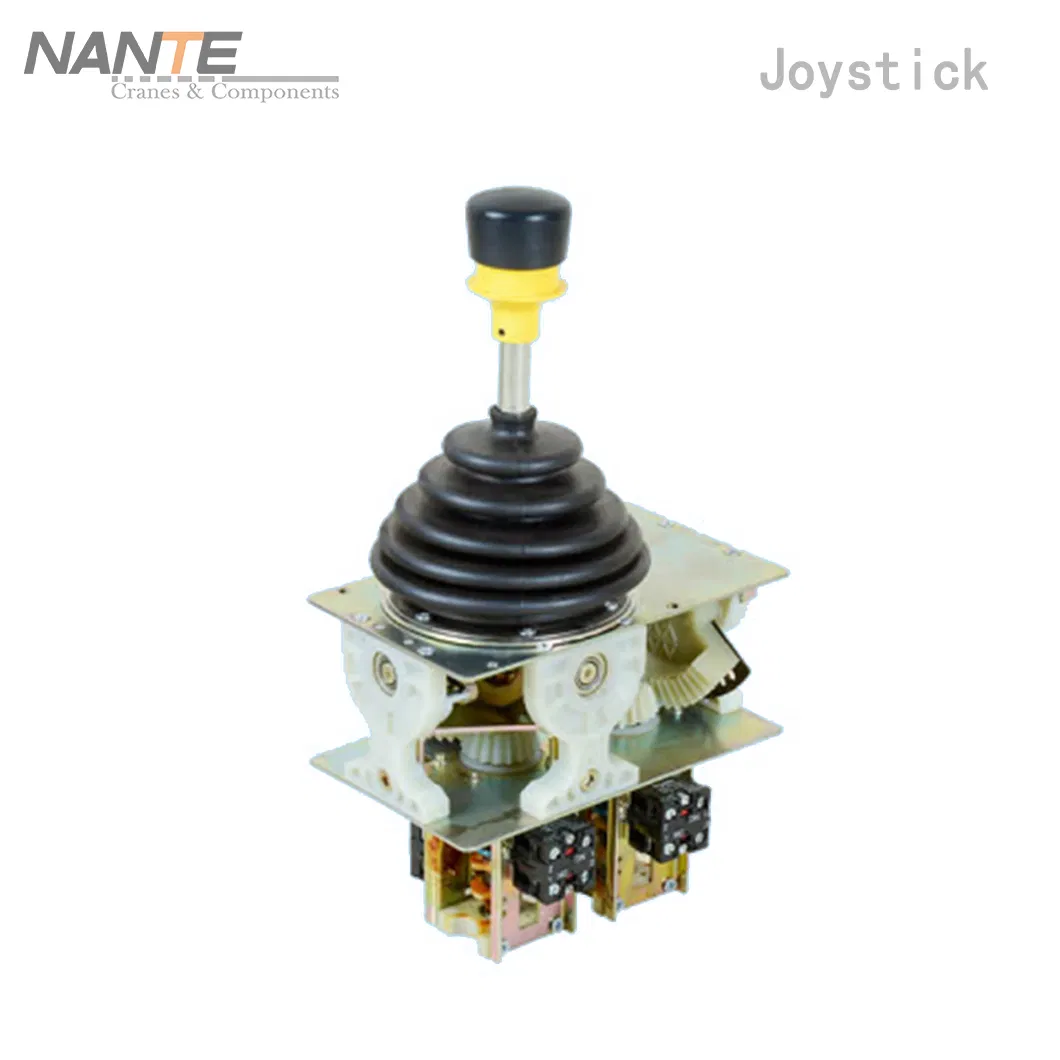

| Technical Data of Control Console | |||
|---|---|---|---|
| Working Temperature | -40ºC to 50ºC | Max. Operating Directions | 8 |
| Handle Operating Force | ≤ 20N | Mechanisms Controlled | 2 |
| Mechanical Life | 1.6 million times | Max. Shift Steps | 5 |
| Power Supply | AC | Max. Contacts | 11 |
| Rated Current | 10A | Electrical Durability | 1 million times |
