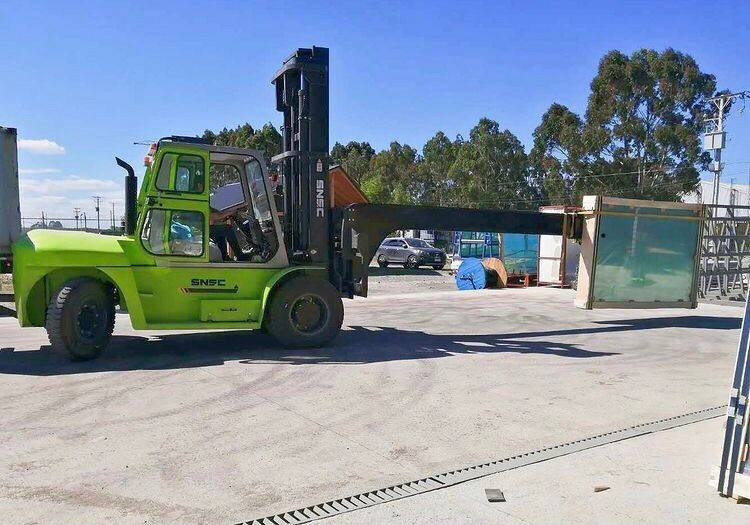

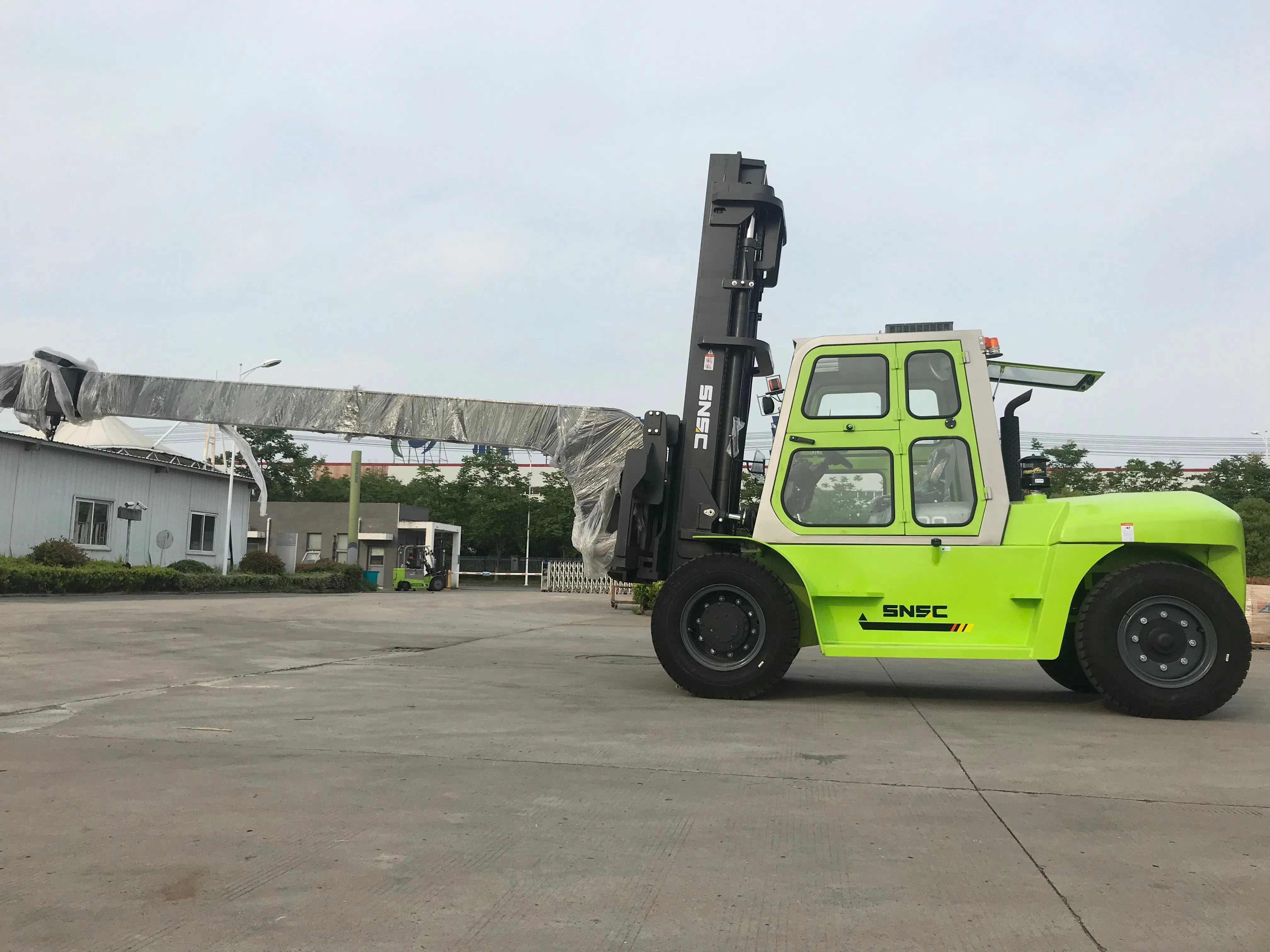

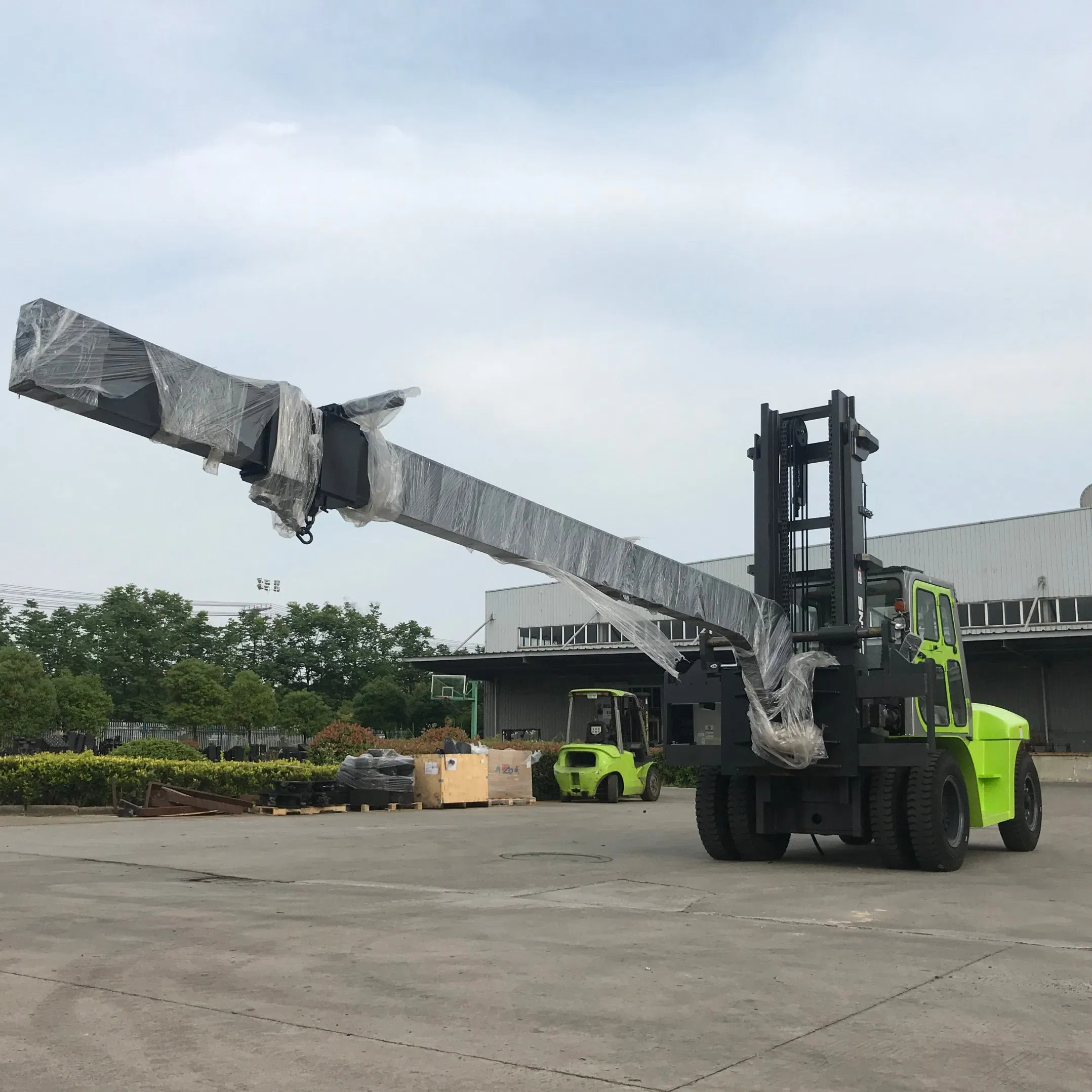

Aero Glass
1 / 5
| Feature | Standard Specification |
|---|---|
| Engine | China Xichai & Japanese 6BG1 Engine |
| Transmission | Electric hydraulic automatic transmission |
| Mast | Standard duplex 3m mast (3m-6m duplex/triplex optional) |
| Tires | Air tires (solid tires optional) |
| Forks | Standard 1220mm forks, extension optional |
| Seat | Toyota seat with shock absorption function |
| Other Configuration | Reverse buzzer, working light, Rear view mirrors, tool box |

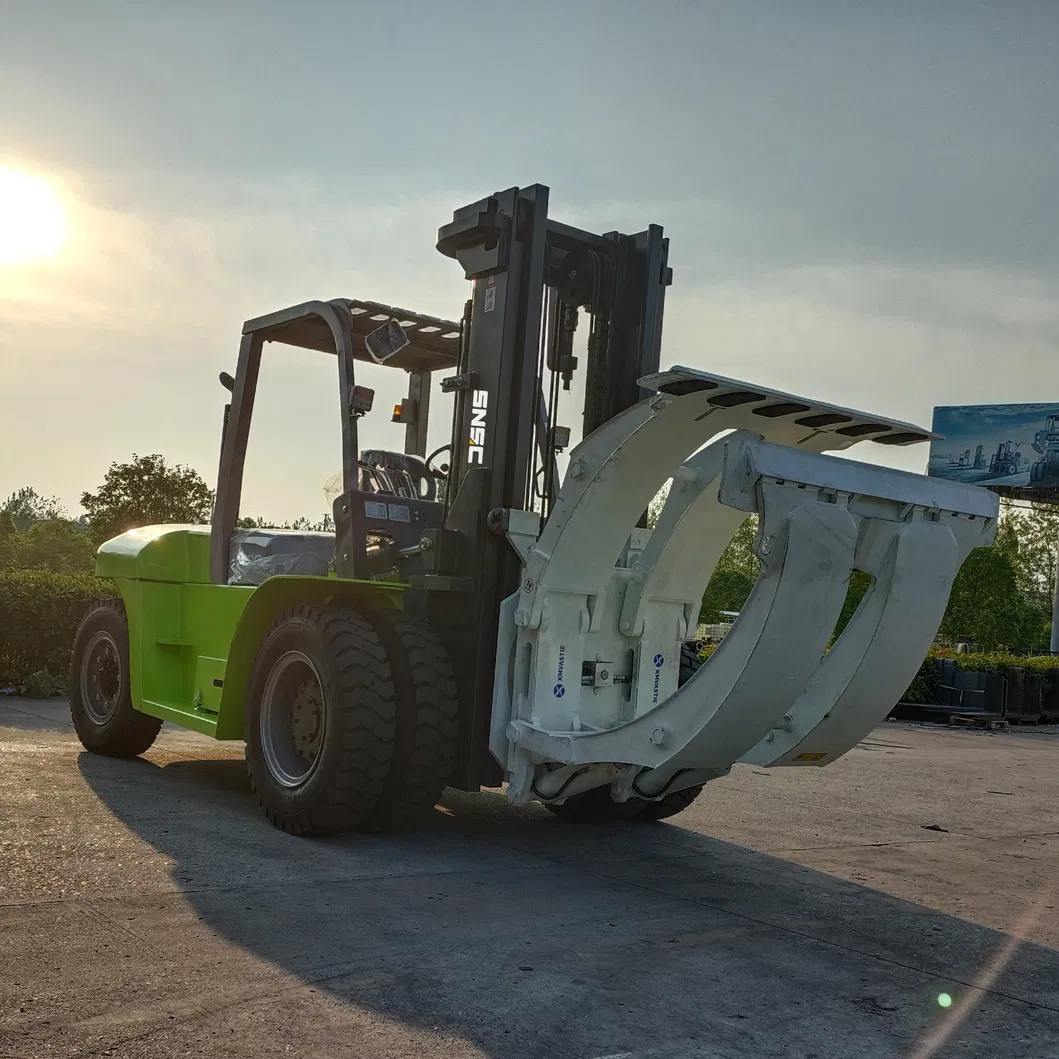

| Attachment | Side shifter, fork positioner, bale clamp, paper roll clamp, etc. |
| Specifications | Unit | FD100 | |
| 1 | Power type | - | Diesel |
| 2 | Rated load | kg | 10000 |
| 3 | Load center | mm | 600 |
| 4 | Lifting Height | mm | 3000 |
| 5 | Fork size (LxWxT) | mm | 1220X175X80 |
| 6 | Min. Turning Radius | mm | 3900 |
| 7 | Max. Travelling Speed (loaded) | Km/h | 26 |
| 8 | Max. Climbing Ability | ° | 20 |
| 9 | Overall Length (without fork) | mm | 4260 |
| 10 | Overall Width | mm | 2230 |
| 11 | Weight (without load) | kg | 12500 |
| 12 | Engine Rated Power | KW/r.p.m | 83/2000 |

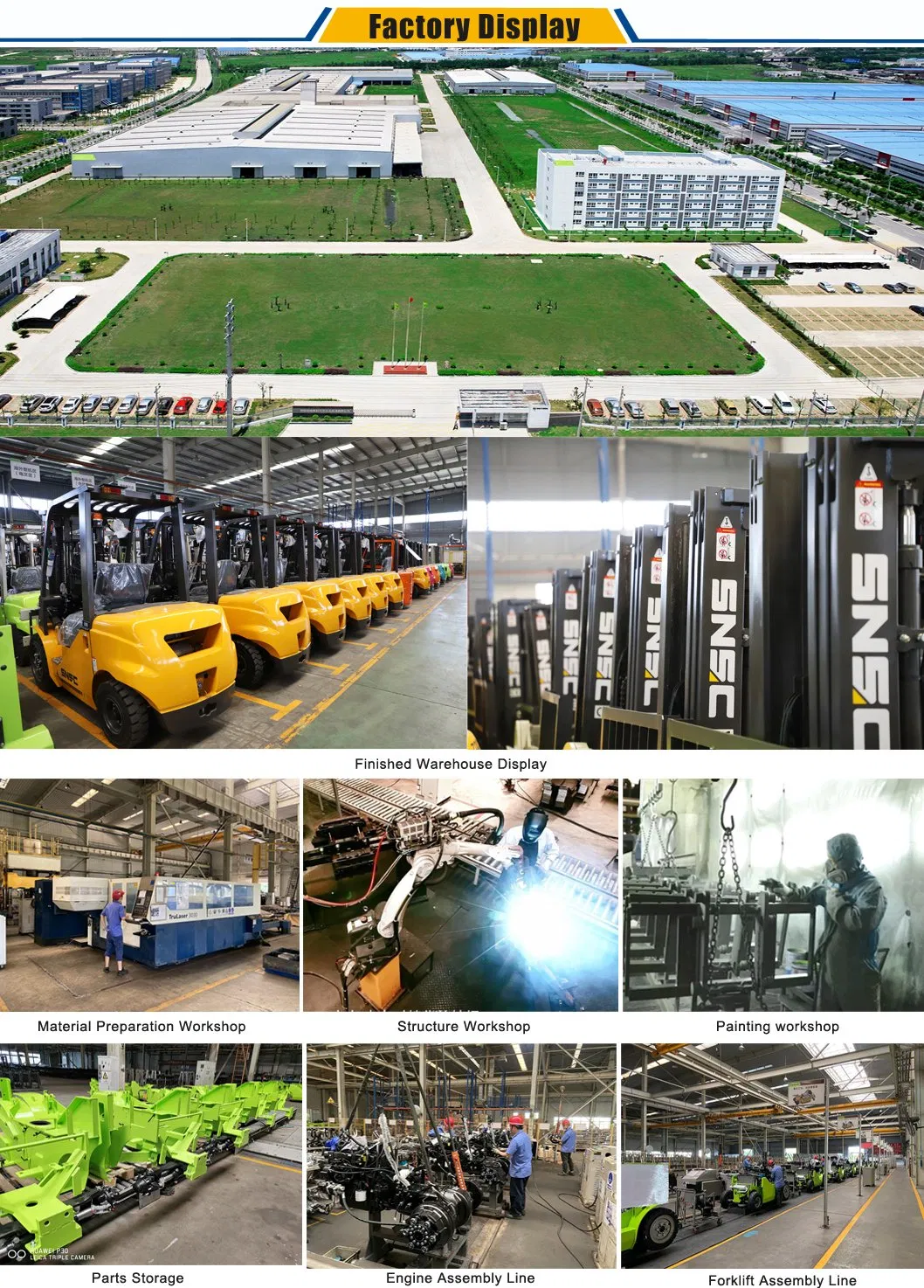

We are a top-tier Chinese manufacturer with over 500 employees and a production capacity of 30,000 units per year. Our facility utilizes advanced equipment, including welding robots, to achieve a 95% automatic production line.
Warranty Period: 12 months (from arrival at destination port) or 2000 working hours, whichever comes first.
Our quality inspection includes indoor testing (braking, mast inclination, oil leakage detection) and outdoor testing (loading, lifting, turning, and climbing).
Package includes Tool Box, Catalogue, Gloves, Maintenance Manuals, and Spare Parts. 10-ton units are secured in 1*40'HQ containers using triangle iron wedges and flexible packing tape.
