High Quality Crane Cabin with Air Conditioner for Overhead Crane and Gantry Crane
High Quality Crane Cabin with Air Conditioner for Overhead Crane and Gantry Crane
High Quality Crane Cabin with Air Conditioner for Overhead Crane and Gantry Crane
High Quality Crane Cabin with Air Conditioner for Overhead Crane and Gantry Crane
High Quality Crane Cabin with Air Conditioner for Overhead Crane and Gantry Crane
1 / 5
High Quality Crane Cabin with Air Conditioner for Overhead Crane and Gantry Crane
High Quality Crane Cabin with Air Conditioner for Overhead Crane and Gantry Crane
High Quality Crane Cabin with Air Conditioner for Overhead Crane and Gantry Crane
High Quality Crane Cabin with Air Conditioner for Overhead Crane and Gantry Crane
High Quality Crane Cabin with Air Conditioner for Overhead Crane and Gantry Crane

High Quality Crane Cabin with Air Conditioner for Overhead Crane and Gantry Crane

Customization: Available
Working Temperature: -40 Degrees to 50 Degrees
Material: Steel,IP65 Stainless Steel,Tempering Glass
Send Inquiry

Product Description

i

Basic Information

Model NO.
NTC
Application
Overhead/Gantry/Tower Crane
Package
Bubble Wrap
Specification
1.1m, 1.4m, 1.5m, 1.8m
Origin
China
HS Code
8537109090
★

Product Description

High Quality Crane Cabin with Air Conditioner for Overhead and Gantry Cranes
A crane cabin, also known as a crane operator cabin or industrial control unit, is a critical facility designed to ensure operator safety and efficiency. From this unit, operators can perform real-time monitoring of the crane's status, lifting hooks, and cargo. The design stability of the cabin directly impacts driver safety, while an optimized view provides comfortable operating conditions.
With extensive experience in customized operator cabins for industrial purposes, we provide environments that meet all demands for ergonomics, visibility, comfort, and safety. Every product is subject to strict quality controls to ensure excellent operational condition.
Key Advantages:
  • High-quality cold-rolled steel plate with advanced anti-corrosive manufacturing technology.
  • Windows: 5mm tempered glass with >230° viewing angle and >80% transparency.
  • Safety features: Non-slip insulating rubber carpet and fire-proofing interior decoration.
  • Durability: Epoxy zinc-rich primer and polyurethane topcoat (no less than 160μm).
  • Comfort: Premium seats and sound/heat insulation for a superior operating environment.
  • Versatility: Suitable for various crane types with flexible and simple controls.
⚙

Technical Data

  • Width Options: 1.1m, 1.4m, 1.5m, 1.8m
  • Temperature Range: -40ºC to 50 ºC
  • Material: 2.0mm cold-rolled board with 5mm gypsum interior decoration
  • Glass: 5mm thickness tempered glass

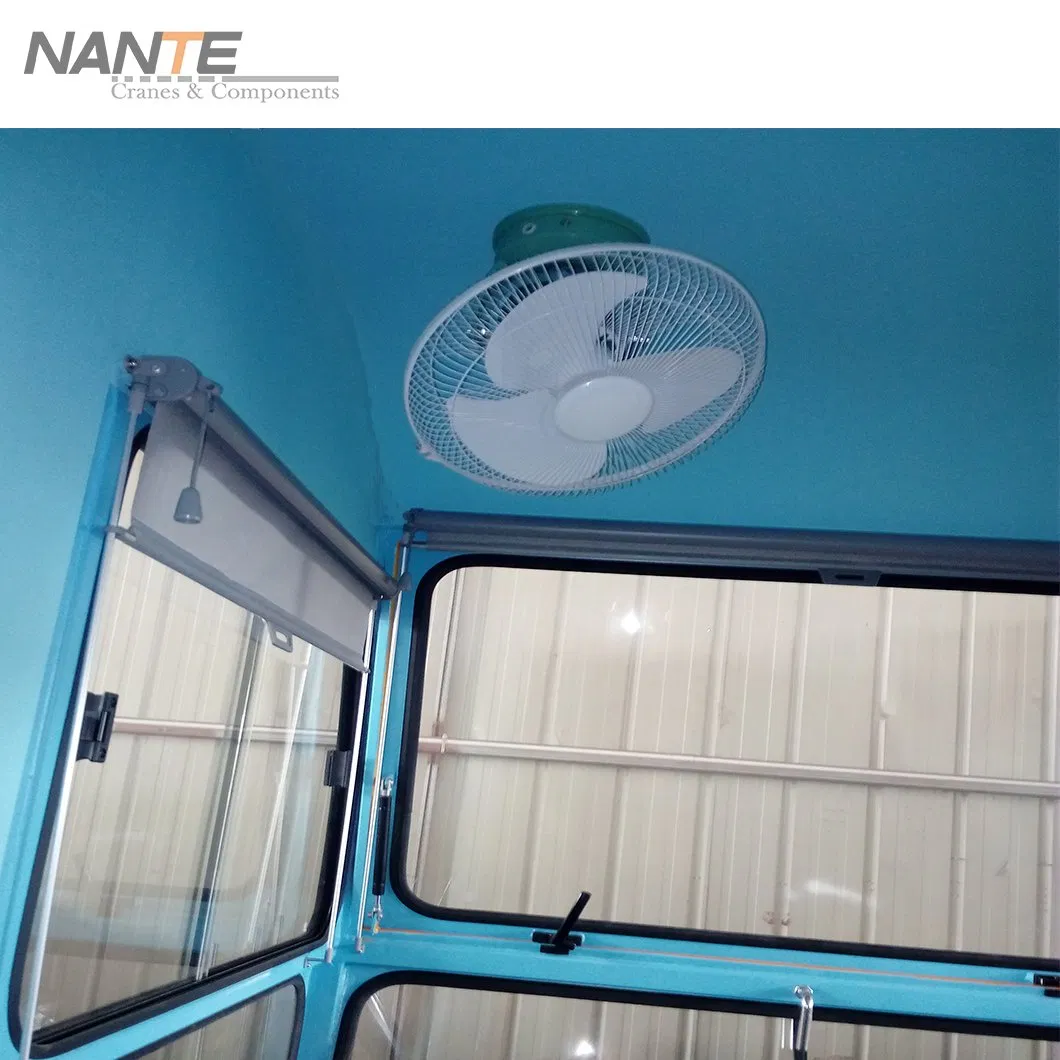

  • Standard Setup: Fire extinguisher, LED light, manual wiper, fan
  • Options: Air-conditioning, walking platform, customized seating

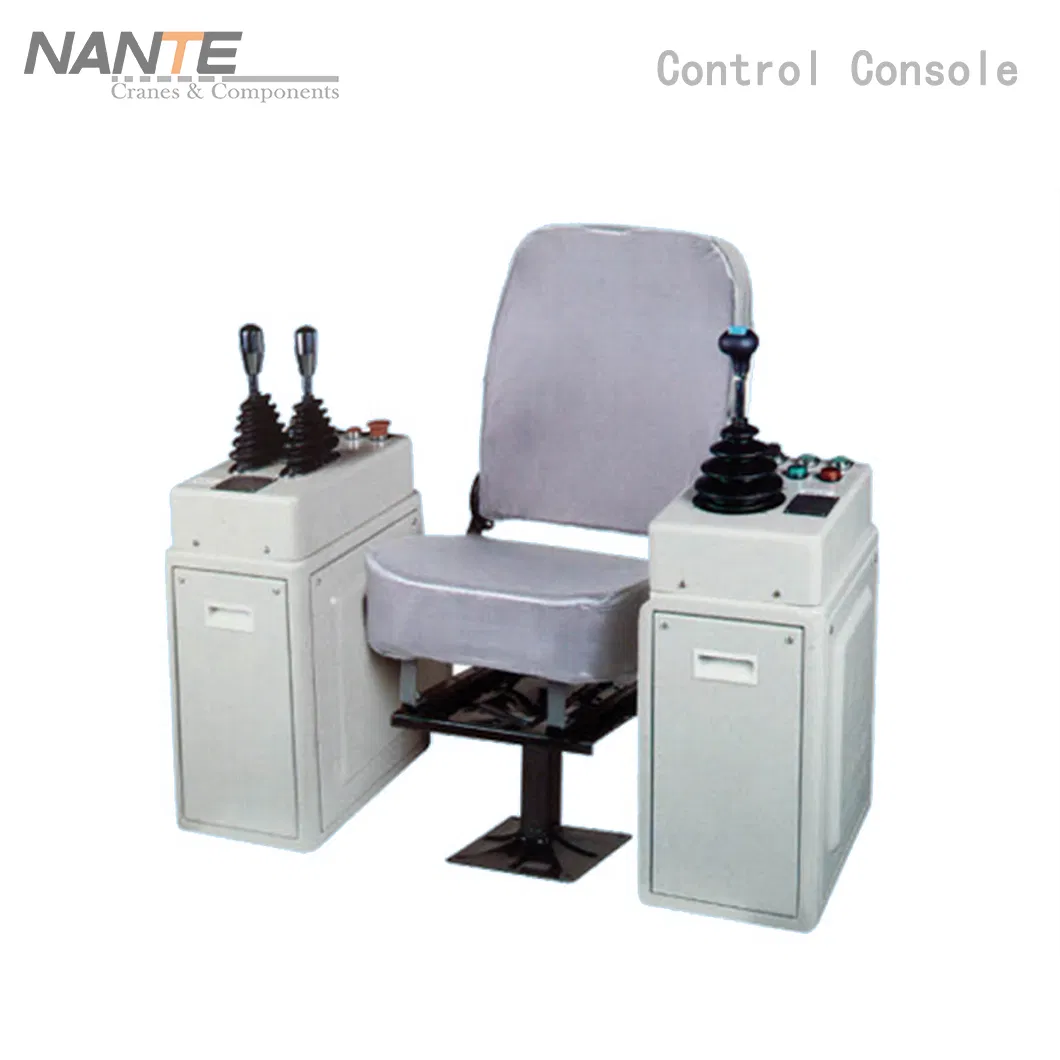

Technical Data of Control Console
Working Temp -40ºC to 50ºC Max Operating Directions 8
Stick Operating Force ≤ 20N Mechanisms Controlled 2
Mechanical Life 1.6 million times Max Shift Steps 5
Power Supply AC / DC Rated Current 10A
Electrical Durability 1 million times Frequency 1200 times/hour
📷

Product Display

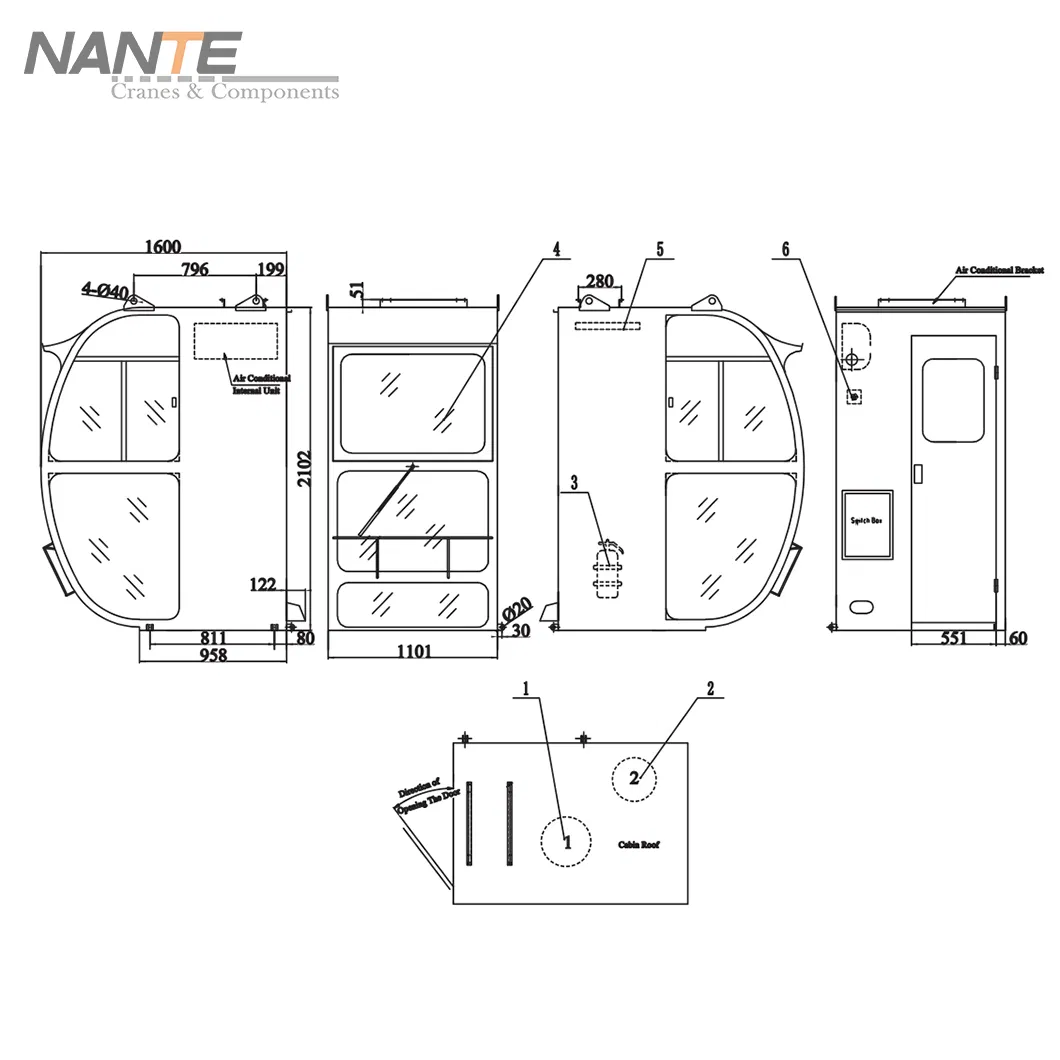

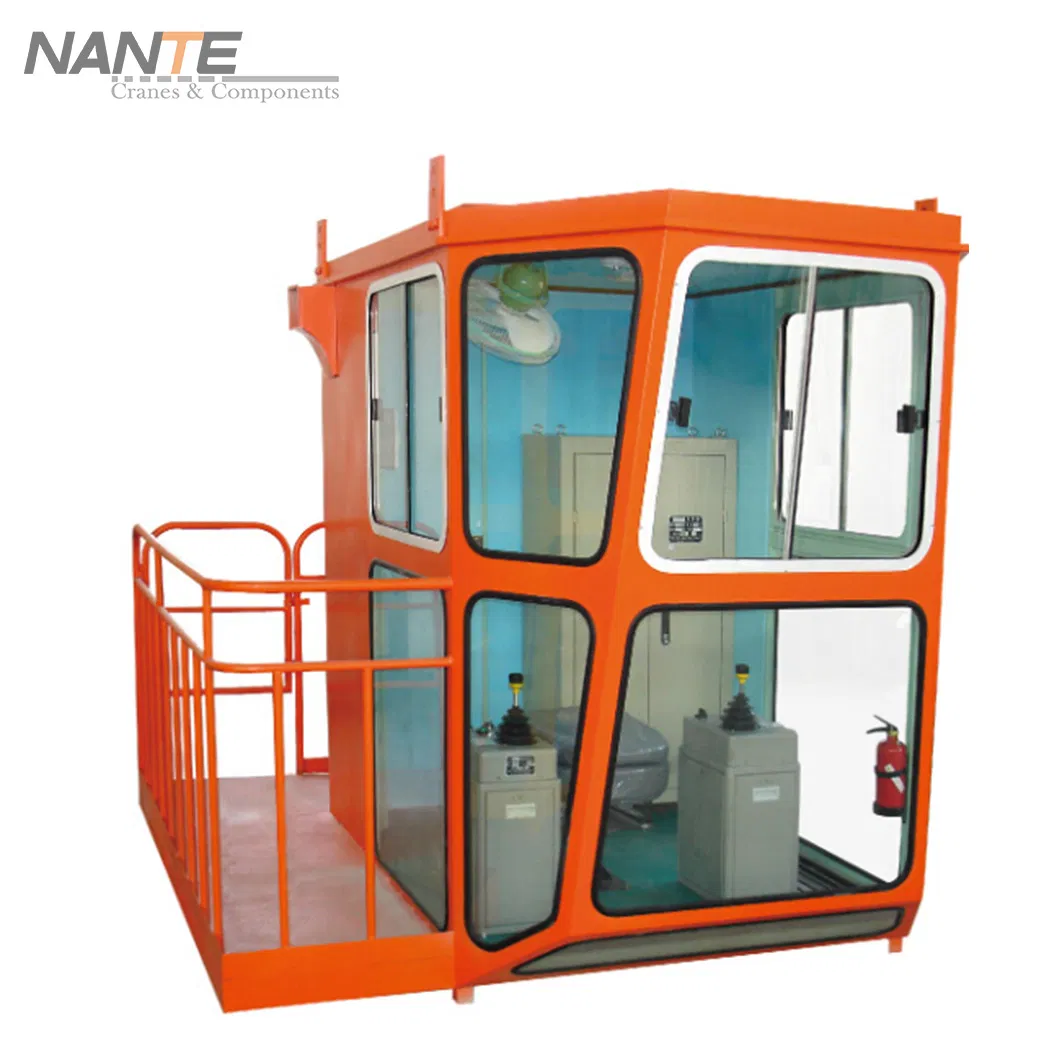

Crane Cabin View 1

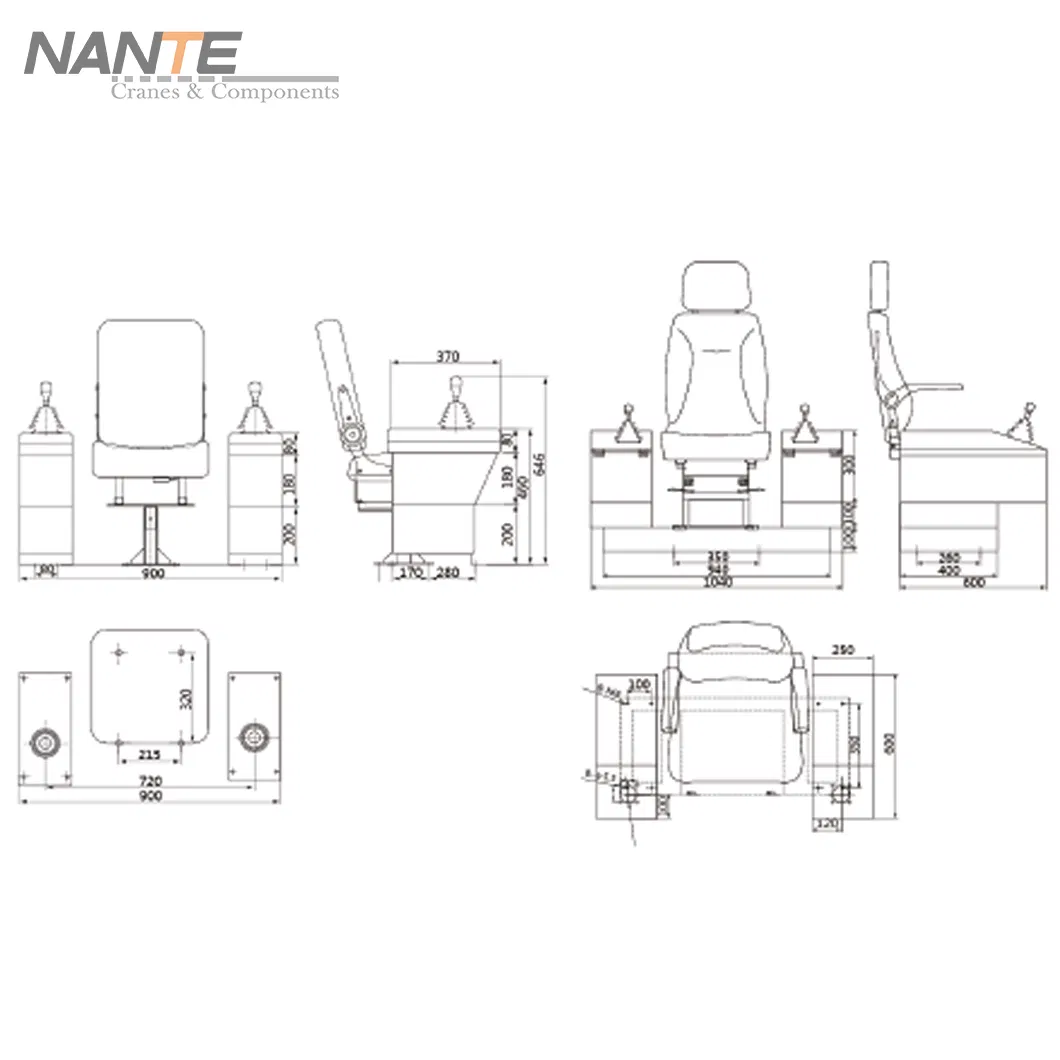

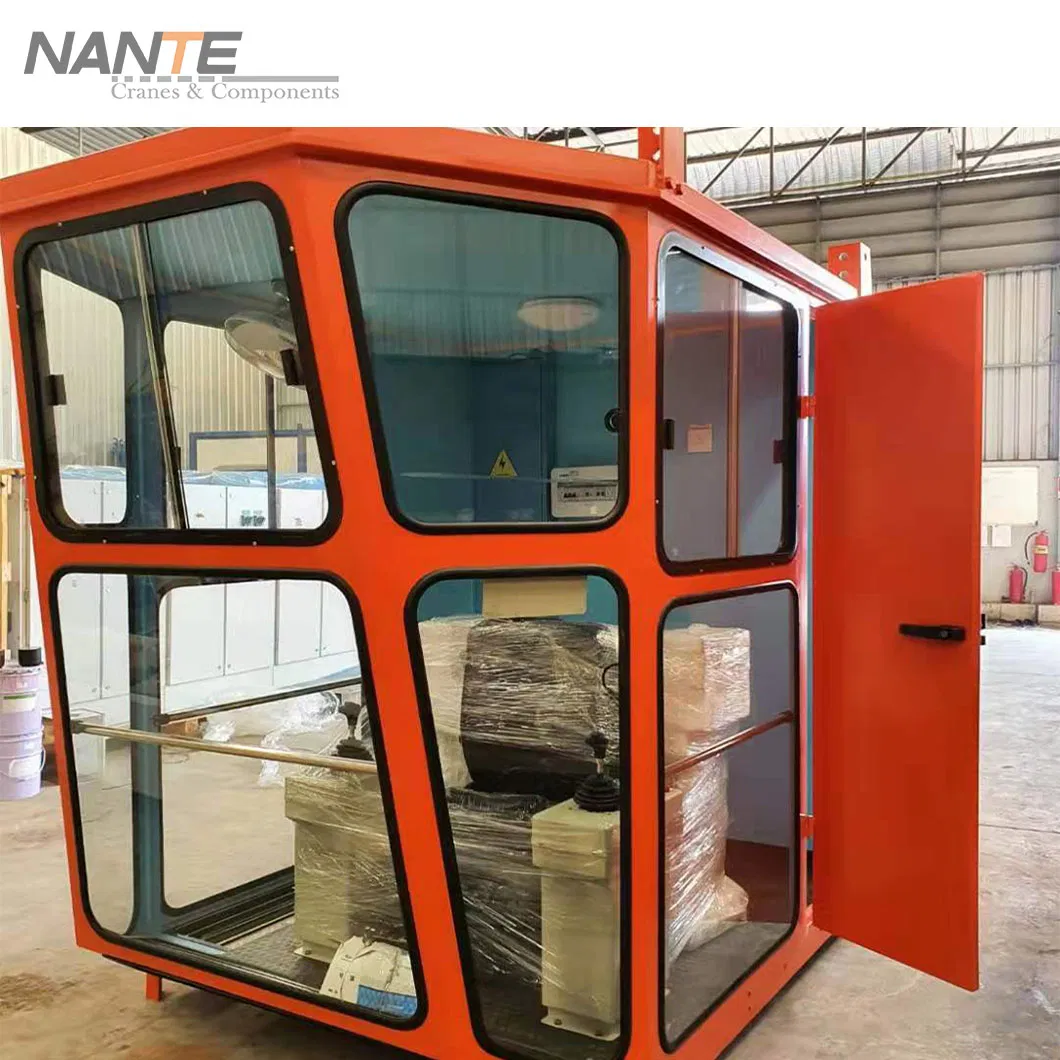

Crane Cabin View 2
🏭

Manufacturing & Application

Application 1
Application 2

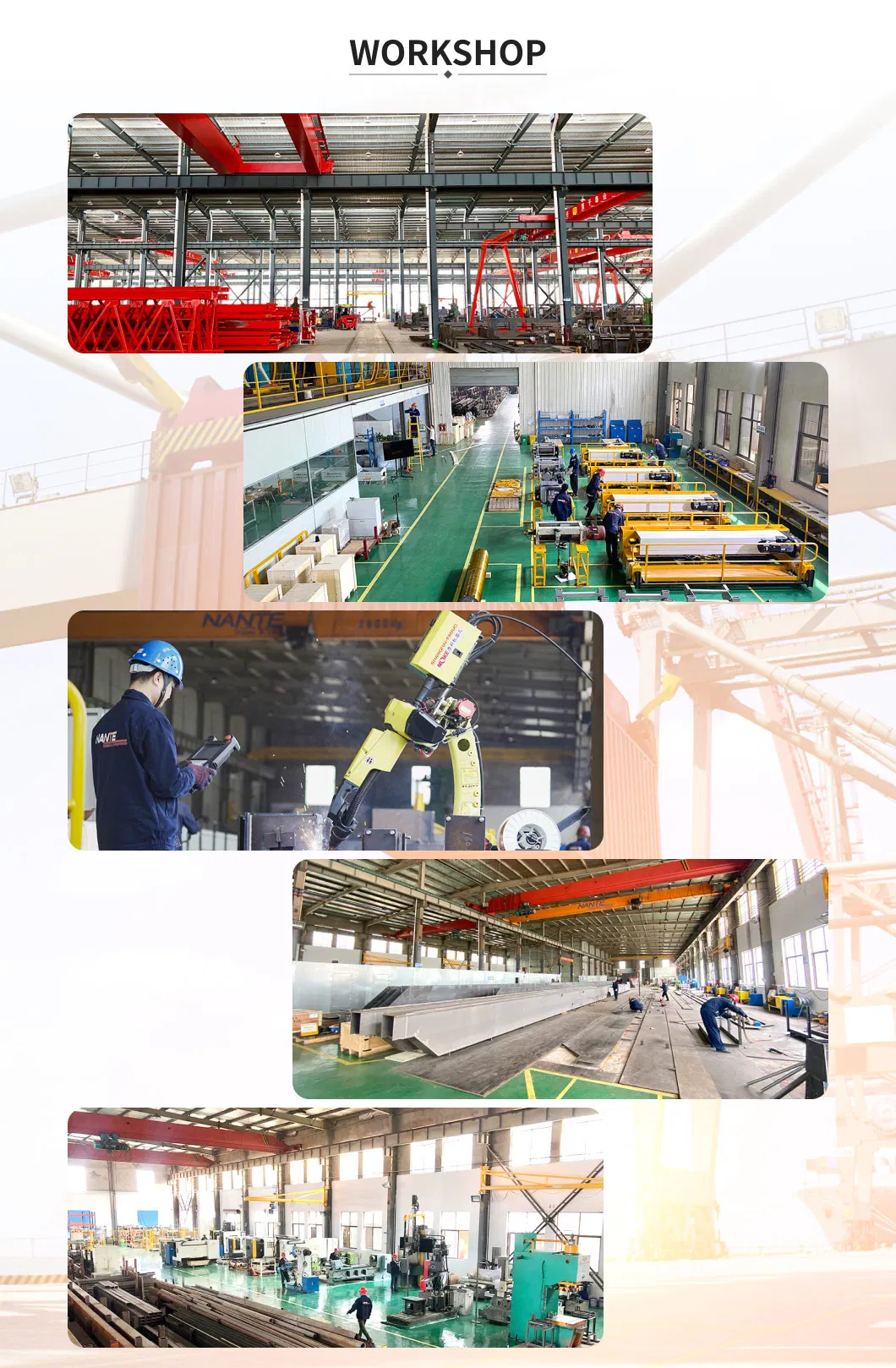

Application 3
Manufacturing 1
Manufacturing 2
Manufacturing 3
Facility 1
Facility 2
Facility 3
?

Frequently Asked Questions

Are you a manufacturer or a trading company?
We are an integrated industrial and trade enterprise with our own R&D team, factory, and marketing department.
Which international standards do your crane components apply to?
Our equipment is designed and manufactured based on FEM, CMAA, ISO, EN, and GB standards.
How do you ensure product quality?
All processes strictly adhere to ISO-9001 procedures, including material traceability, NDT for welding, and full assembly/load testing before delivery.
What payment methods do you accept?
We accept T/T bank transfers, L/C, and PayPal for your convenience.
What is the warranty period for the crane cabin?
The warranty period is 12 months after the cargo leaves the port. We provide technical support via email or video conference and can ship spare parts if needed.
Do you accept OEM business?
Yes, we provide OEM production for several famous crane brands and customers worldwide.
