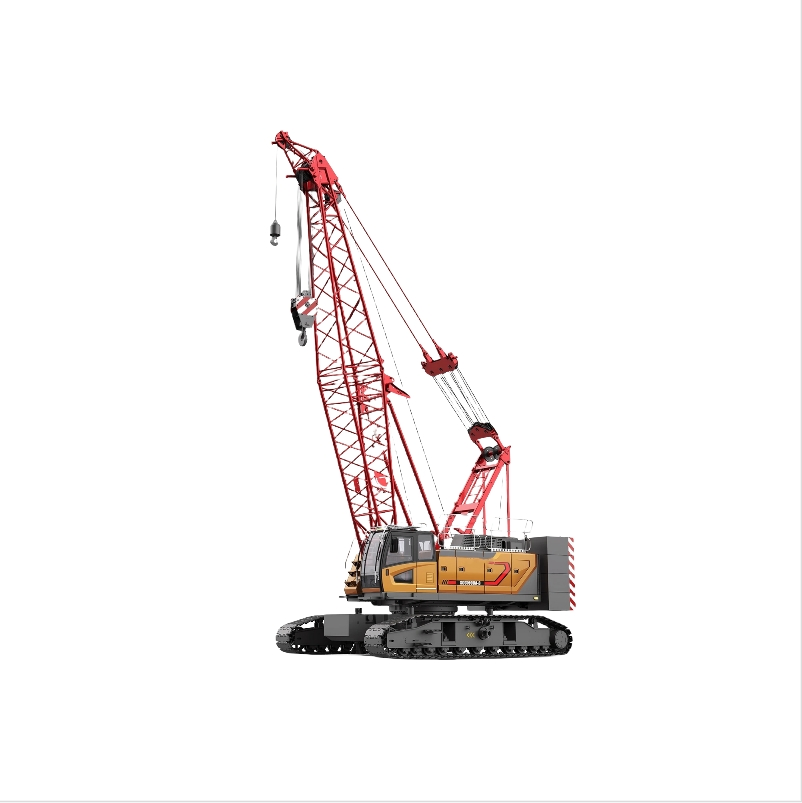

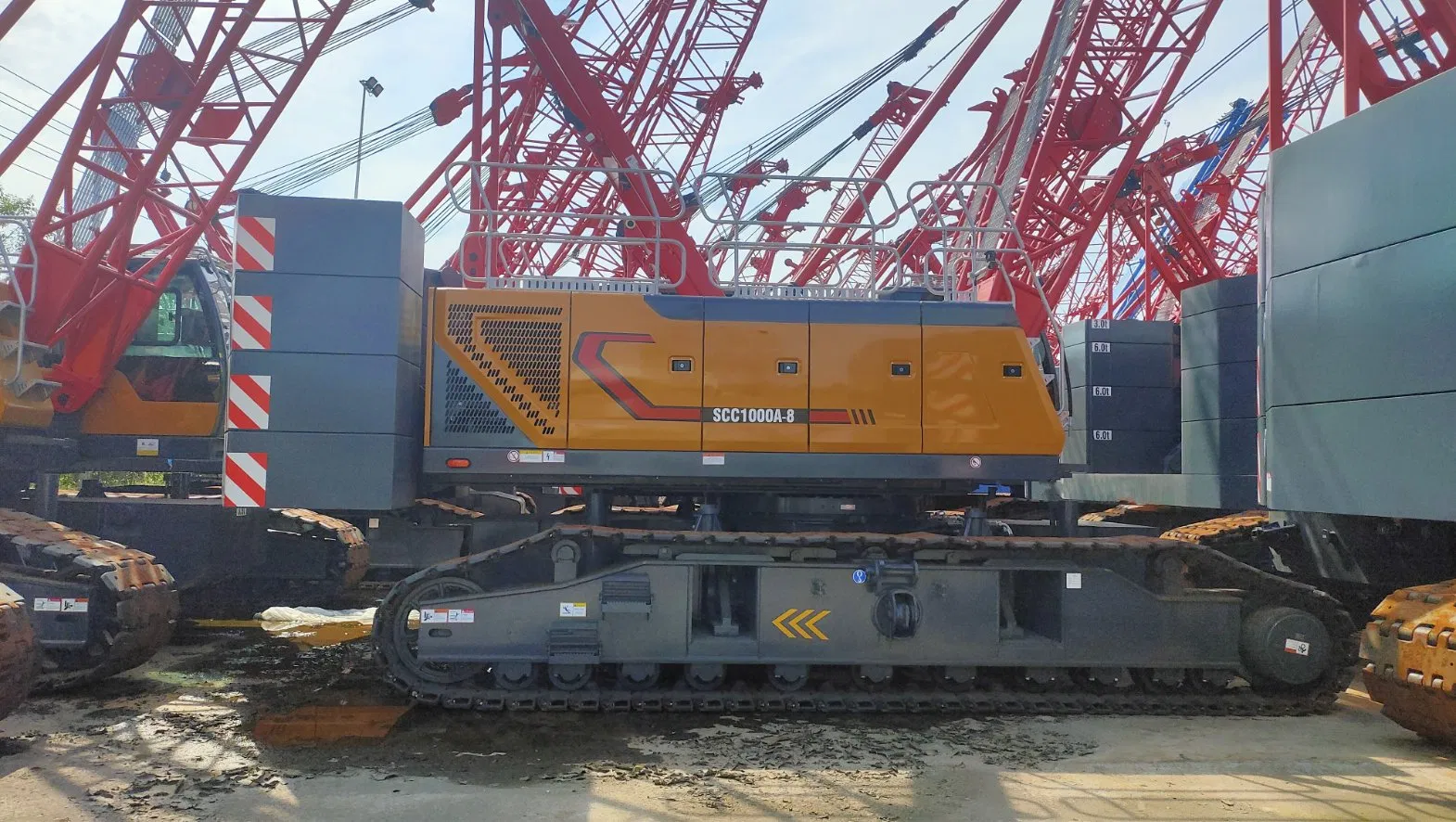

Factory Price Brand New Heavy-Duty 100ton Hydraulic Crawler Crane Scc1000A-8 with Longest Boom 57m
Factory Price Brand New Heavy-Duty 100ton Hydraulic Crawler Crane Scc1000A-8 with Longest Boom 57m
Factory Price Brand New Heavy-Duty 100ton Hydraulic Crawler Crane Scc1000A-8 with Longest Boom 57m
Factory Price Brand New Heavy-Duty 100ton Hydraulic Crawler Crane Scc1000A-8 with Longest Boom 57m
Factory Price Brand New Heavy-Duty 100ton Hydraulic Crawler Crane Scc1000A-8 with Longest Boom 57m
1 / 5
Factory Price Brand New Heavy-Duty 100ton Hydraulic Crawler Crane Scc1000A-8 with Longest Boom 57m
Factory Price Brand New Heavy-Duty 100ton Hydraulic Crawler Crane Scc1000A-8 with Longest Boom 57m
Factory Price Brand New Heavy-Duty 100ton Hydraulic Crawler Crane Scc1000A-8 with Longest Boom 57m
Factory Price Brand New Heavy-Duty 100ton Hydraulic Crawler Crane Scc1000A-8 with Longest Boom 57m
Factory Price Brand New Heavy-Duty 100ton Hydraulic Crawler Crane Scc1000A-8 with Longest Boom 57m

Factory Price Brand New Heavy-Duty 100ton Hydraulic Crawler Crane Scc1000A-8 with Longest Boom 57m

Customization: Available
After-sales Service: Provided
Max. Lifting Height: 66m
Send Inquiry

Product Description

⚙️ Basic Information
Model NO.
SCC1000A-8
Rated Loading Capacity
100ton
Certification
ISO9001, CE, RoHS, BV
Condition
New
Warranty
1 Year
Engine Model
Yuchai A07
Displacement
6.871L
Rated Power
191kw/2200rpm
Fuel Tank Capacity
400L
Boom Length
12-57m
Gradeability
30%
HS Code
8426491000
🏗️ Product Description
SCC1000A-8
Brand New 100Ton Hydraulic Crawler Crane SCC1000A-8
⚡
Electrical Control System

Self-developed SYIC-II integrated control system is adopted with higher integration, precise operation and reliable quality. The system consists of power system, engine system, main control system, LMI system, and safety monitoring system using CAN BUS data communication.

💧
Hydraulic System

Features three open variable displacement piston pumps for main actuators. The main pump adopts electrically-controlled positive flow control; winch motor adopts limitless adjustable piston motor. Operating components include three parallel hydraulic handles and dual travel handles.

✨ Product Characteristics
Cab Design
Advanced Operator's Cab
Novel profile with large window glass, integrated 10.4-inch touch screen, and ergonomic seat layout. Includes A/C, heater, and radio for maximum comfort.
Boom Details
High-Strength Structure

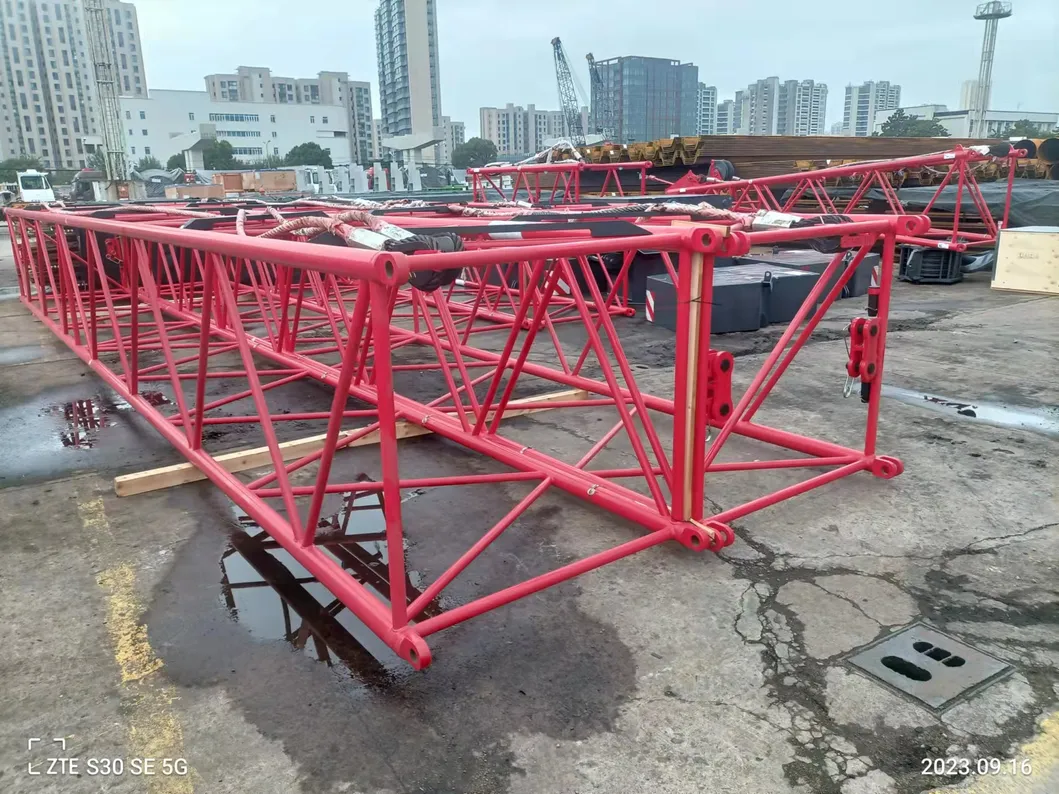

All chords are high-strength steel tubes. Boom/jib top sheaves use anti-wearing Nylon material to protect wire ropes.
📊 Technical Parameters
Item Specification (SCC1000A-8)
Engine Output199/2300 kW/ rpm
Fixed Jib Length9~18 m
Longest Main Boom + Fixed Jib52+18 m
Max Boom Length64 m
Max Lifting Capacity100t
Max Lifting Moment396 t·m
Rear Counterweight33t
Carbody Counterweight5.5×2t
Gradeability30%
📸 Detailed Photos

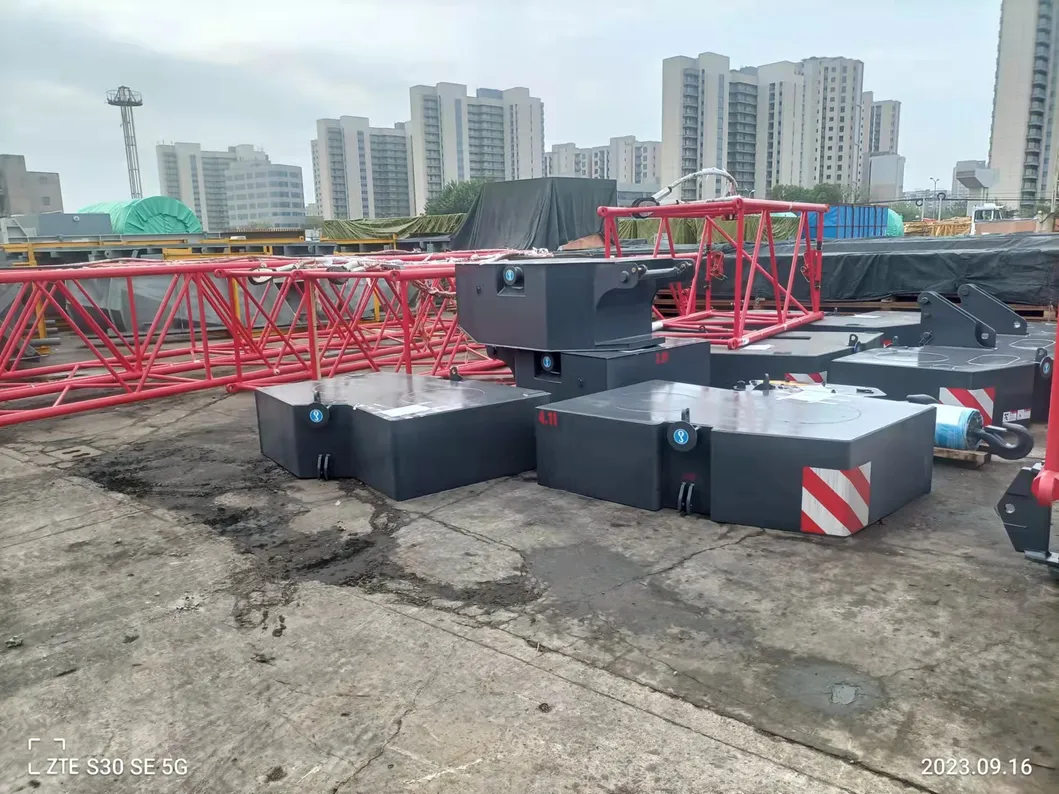

The main engine features efficient disassembly and assembly, low transfer cost, and universal design for boom and counterweights.

Detail 1
Detail 2
Detail 3
Detail 4
Detail 5

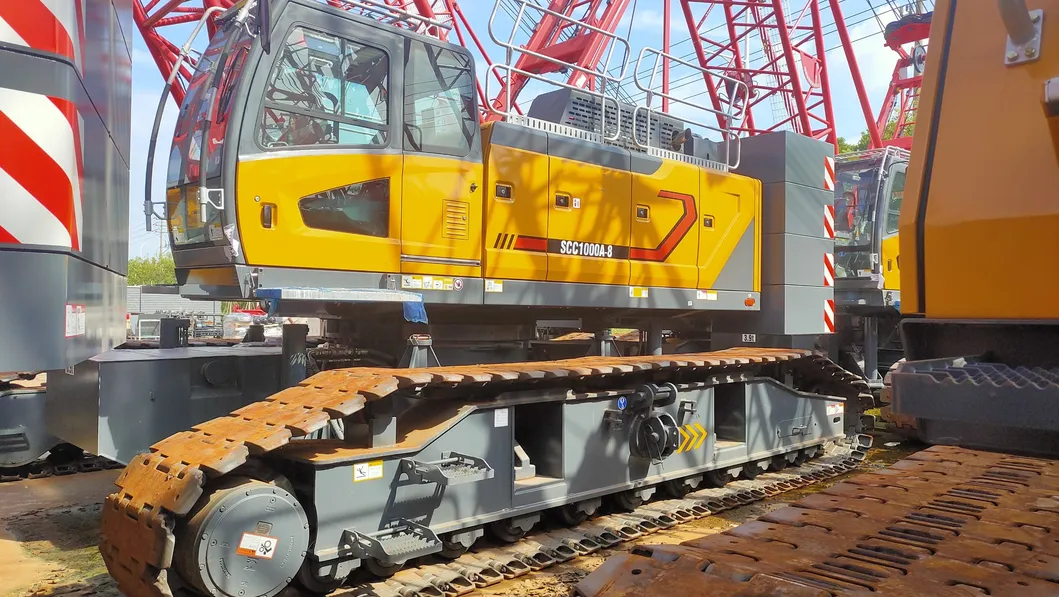

Detail 6
🏭 Manufacturing Display
Production 1
Production 2
Production 3
Production 4
Production 5
Production 6
Frequently Asked Questions
❓ What is the maximum lifting capacity of the SCC1000A-8?
The maximum rated lifting capacity for this hydraulic crawler crane is 100 tons.
❓ What are the available boom lengths?
The main boom length ranges from 12 meters to 57 meters, with a maximum main boom and fixed jib combination of 52+18 meters.
❓ Which engine powers this crane?
It is equipped with a high-performance Yuchai A07 engine, providing a rated power of 191kw at 2200rpm.
❓ What kind of control system is used?
The crane utilizes the self-developed SYIC-II integrated control system, which offers high integration, precision, and reliability through CAN BUS communication.

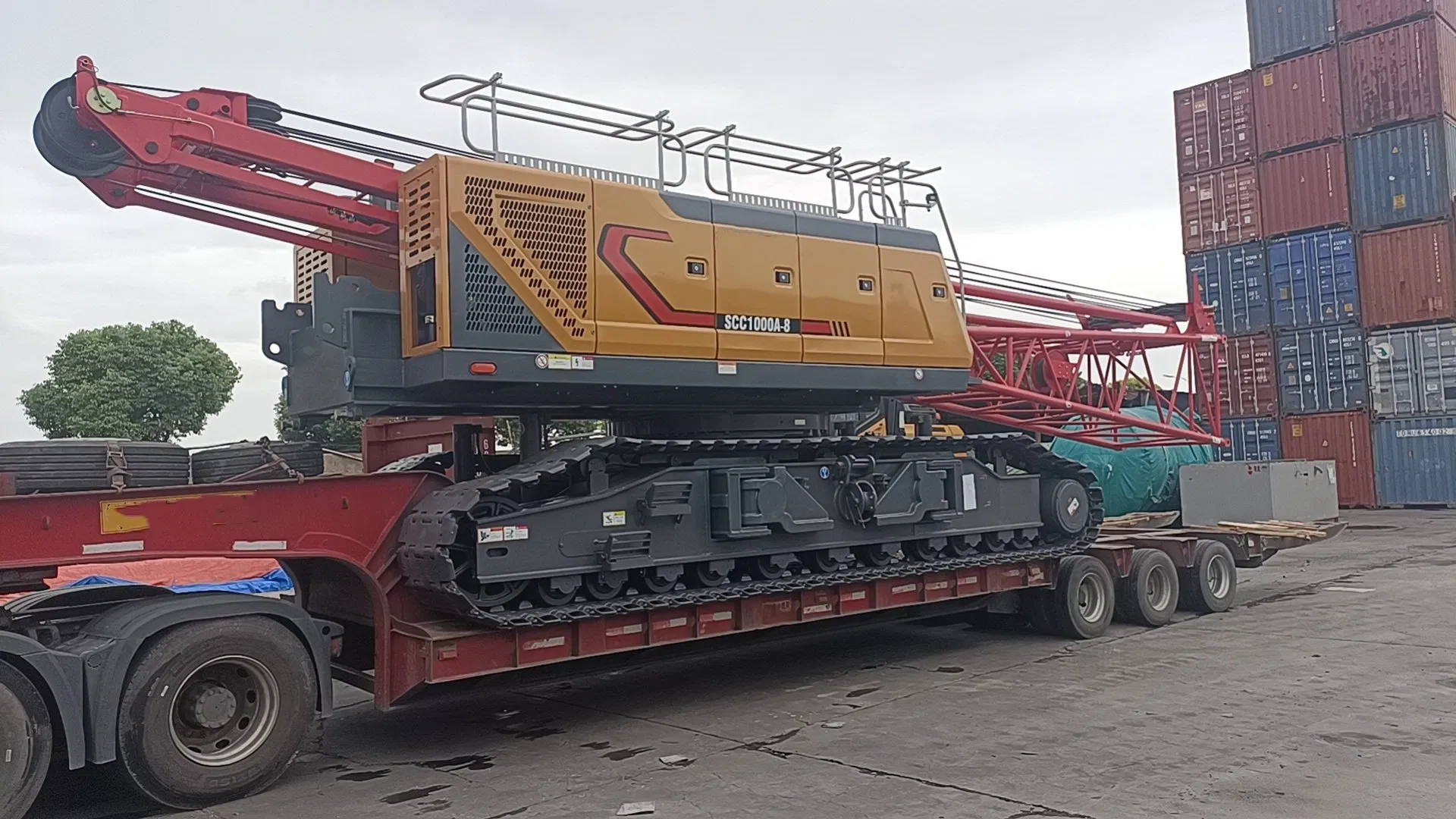

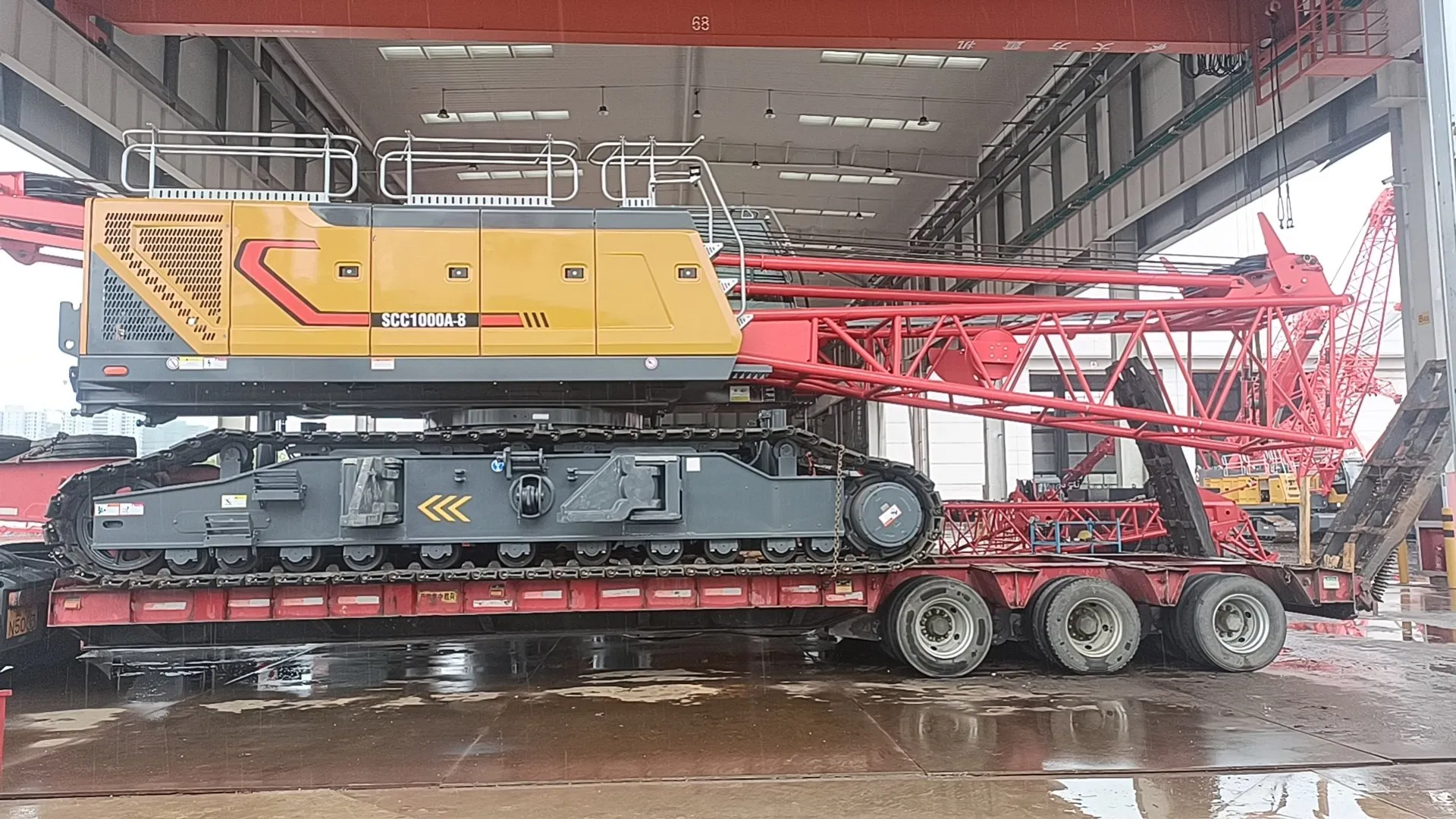

❓ Is the crane easy to transport and assemble?

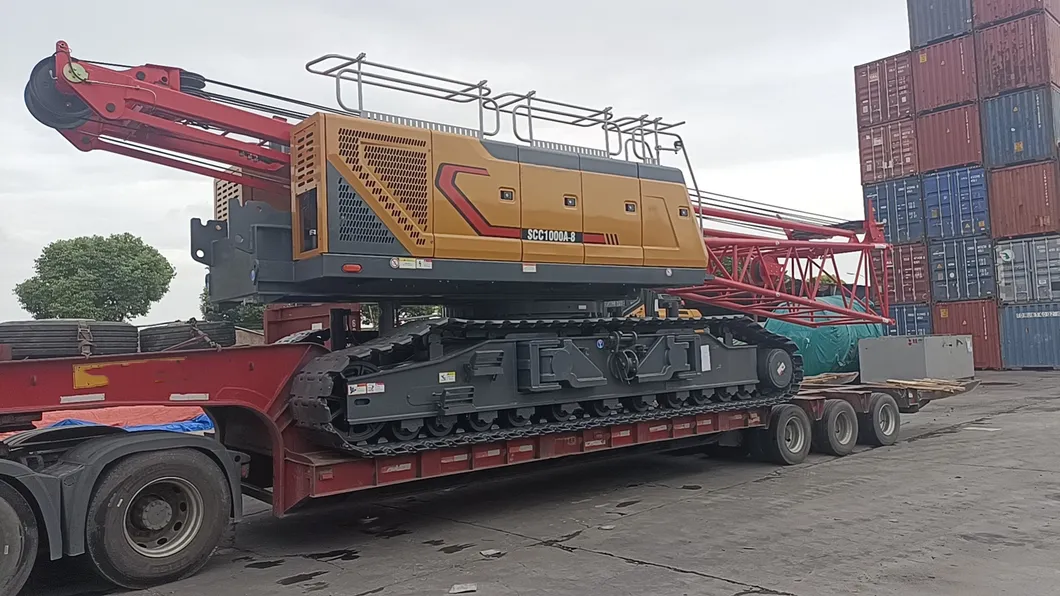

Yes, the main engine is designed for 3M transportation. It features universal component designs for booms and counterweights to ensure efficient disassembly and low transfer costs.
❓ What is the warranty period for this equipment?
The SCC1000A-8 crawler crane comes with a standard 1-year warranty.
