| Model NO. | GK25 |
| Type | Self-propelled |
| Certification | ISO9000, RoHS, CE |
| Emission Standard | Euro 4 |
| Horsepower | 150-250hp |
| Payload | 20T |
| Fuel | Diesel |
| Transmission Type | Automatic |
| Drive Wheel | 4x2 |
| Condition | New |
| Maximum Working Height | 25m |
| Platform Rated Load | 200kg-230kg |
| Boom | Seven Big Arms |

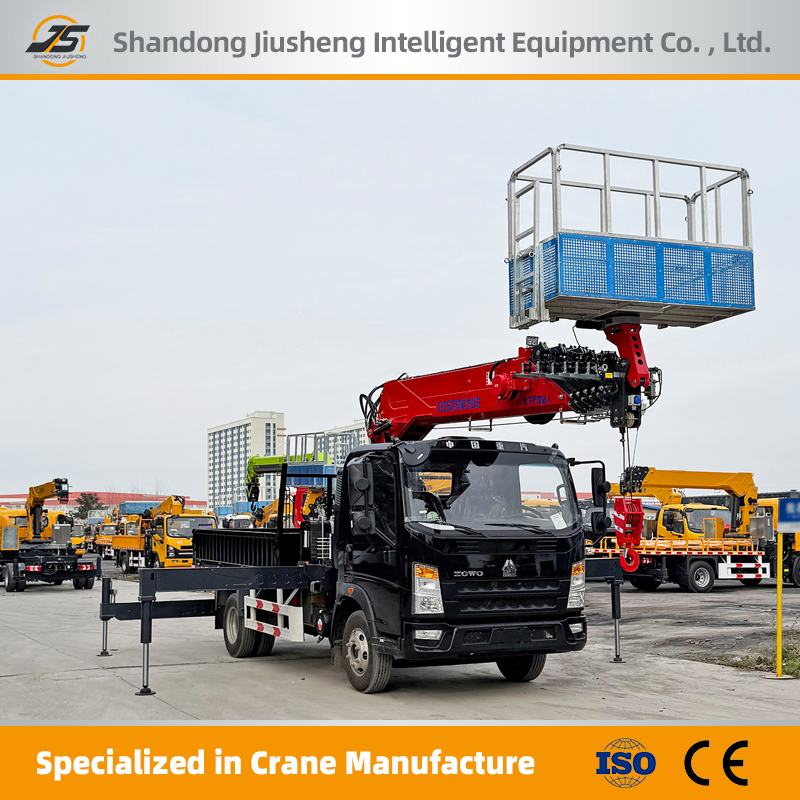

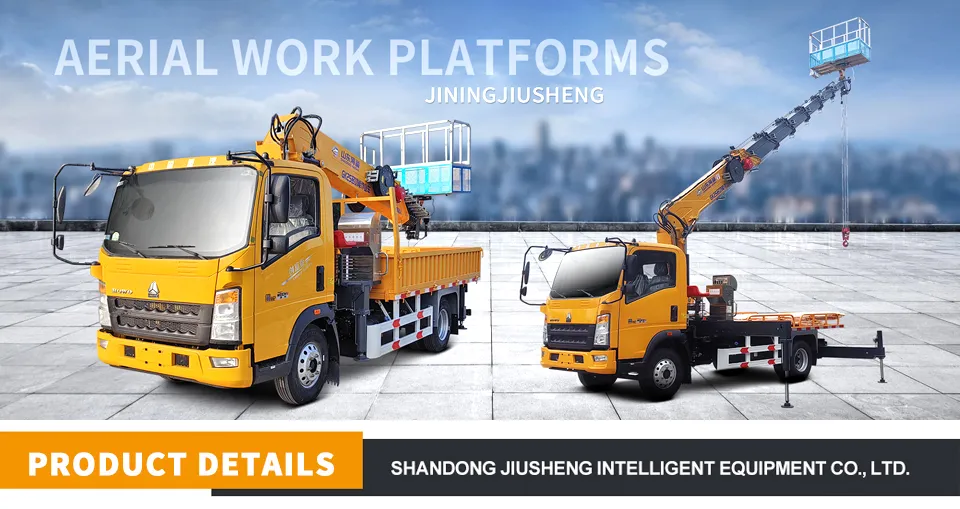

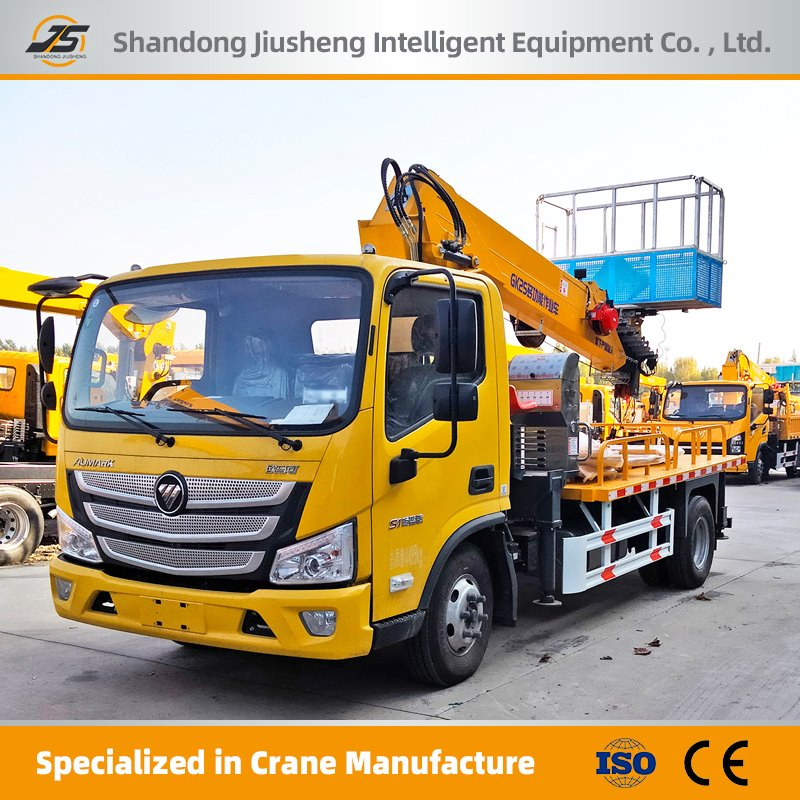

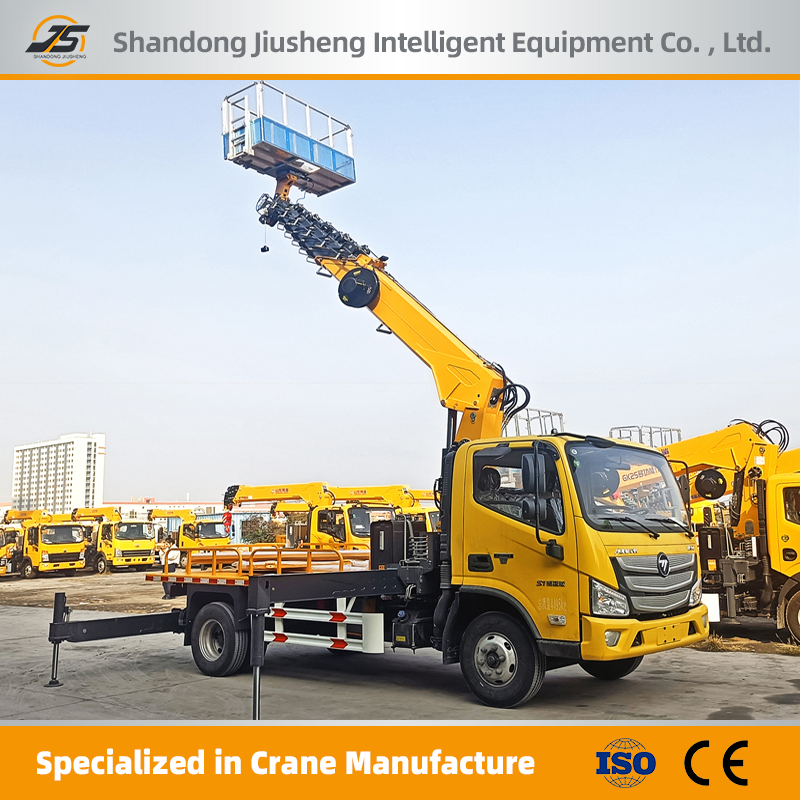

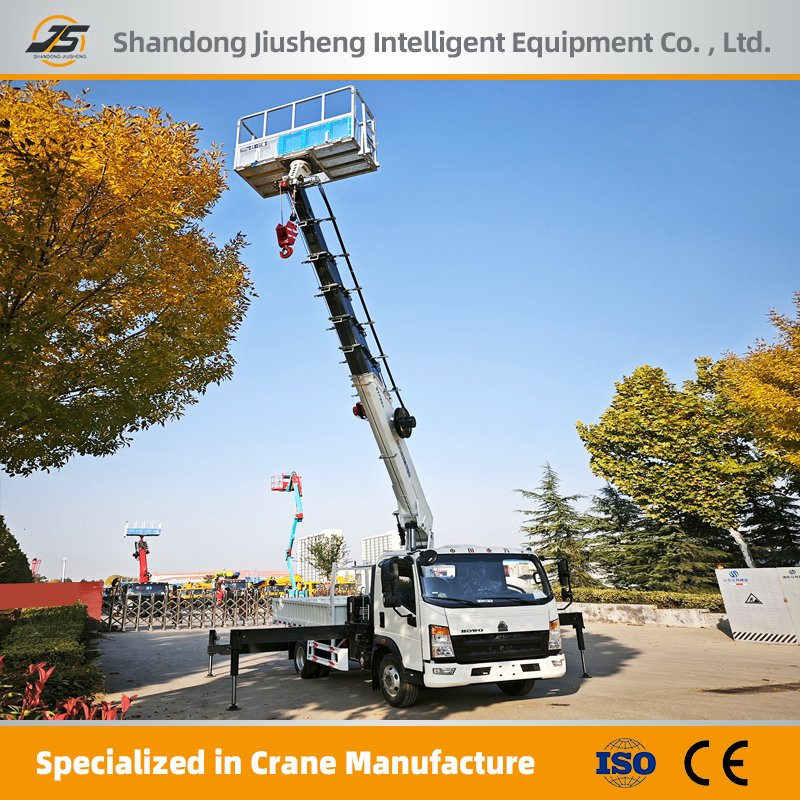

The aerial work platform truck is a professional vehicle designed to safely and efficiently transport personnel and equipment to high-altitude locations. Widely used in construction, maintenance, cleaning, and rescue, it features a non-slip floor, safety fences, and an intuitive control panel for 1-2 workers.
Engine: High-torque, low-emission diesel engine for reliable performance.
Hydraulic System: Precision-controlled pumps and valves ensuring smooth, stable operation.
Cab: Ergonomic ROPS/FOPS-certified cabin equipped with air conditioning.
Control System: Intelligent monitoring panel with advanced fault diagnostics.

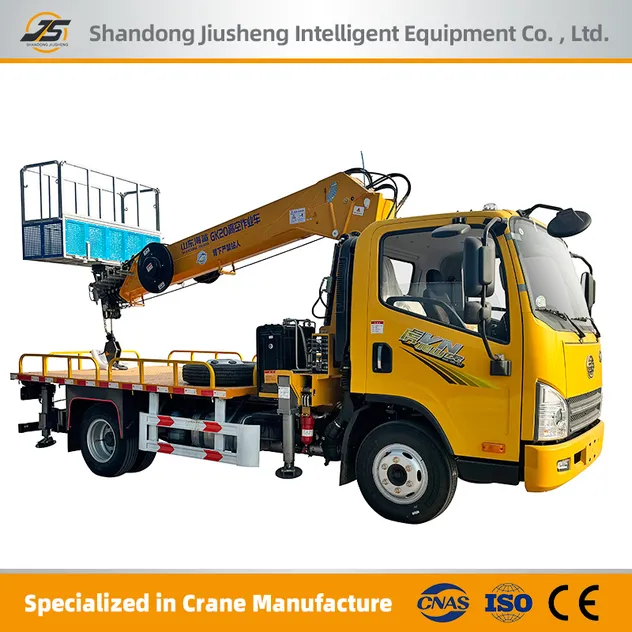

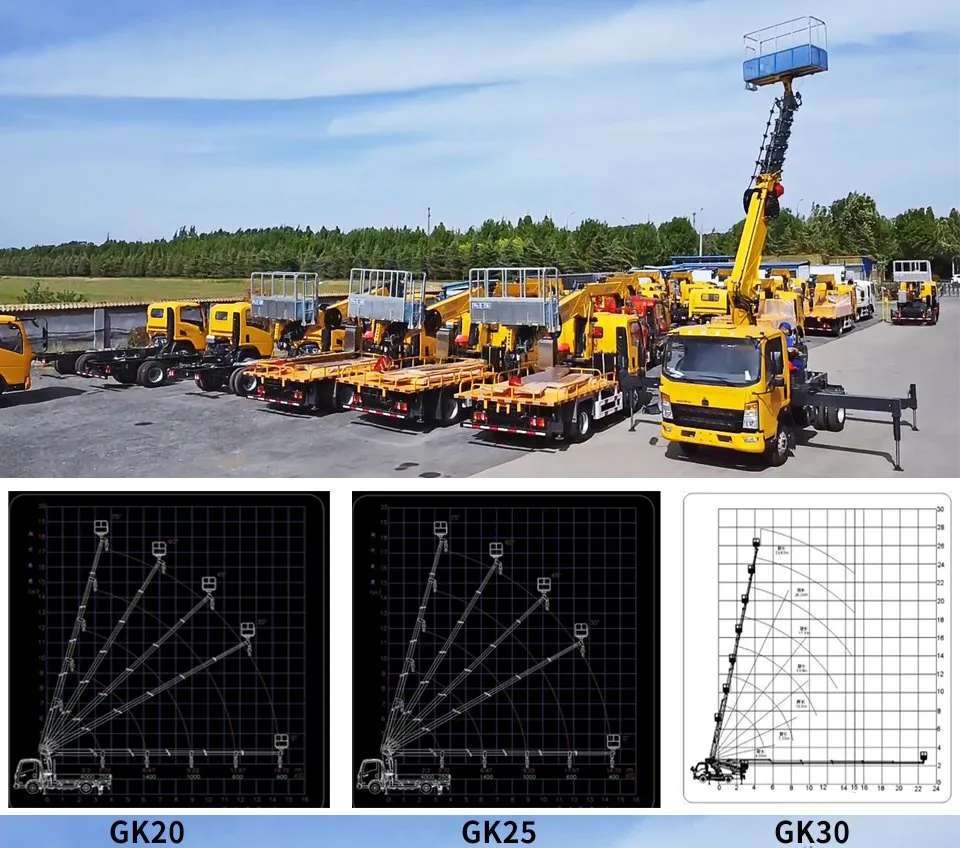

GK20

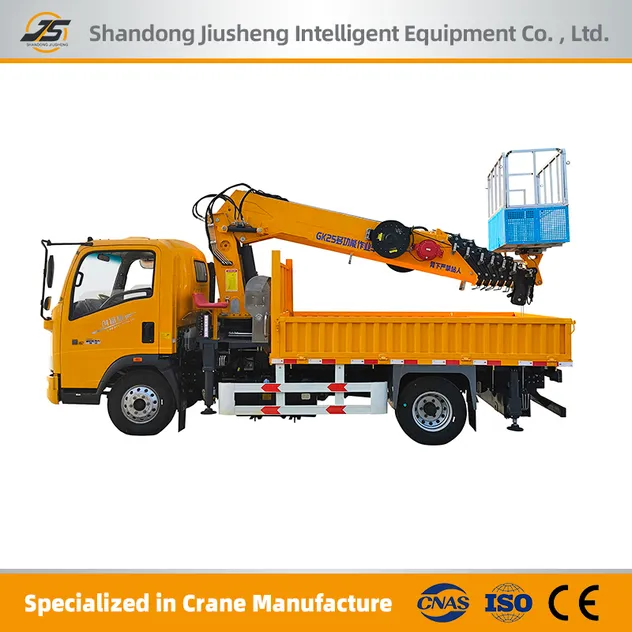

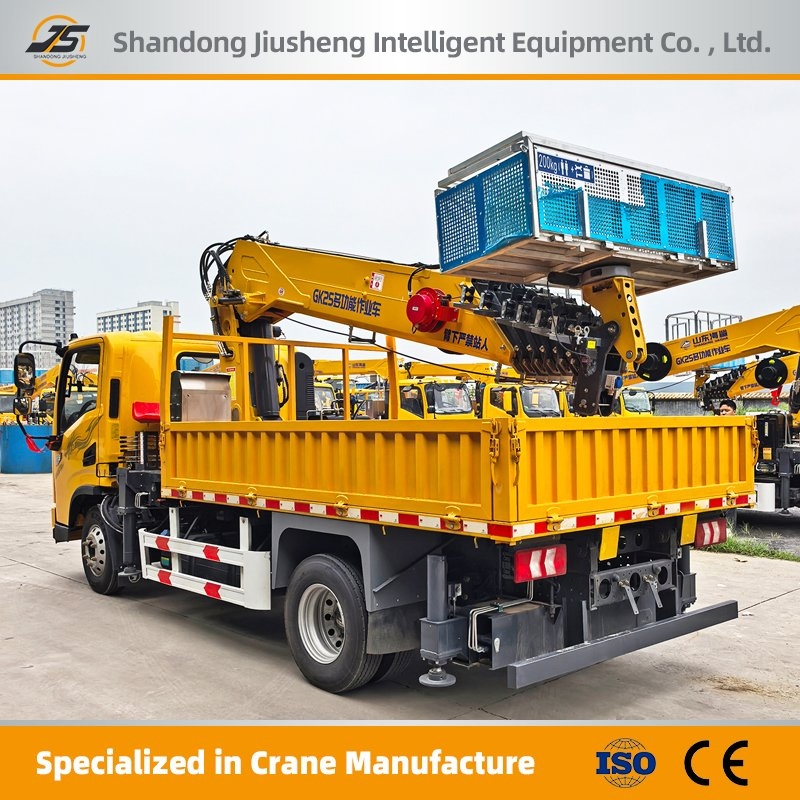

GK25

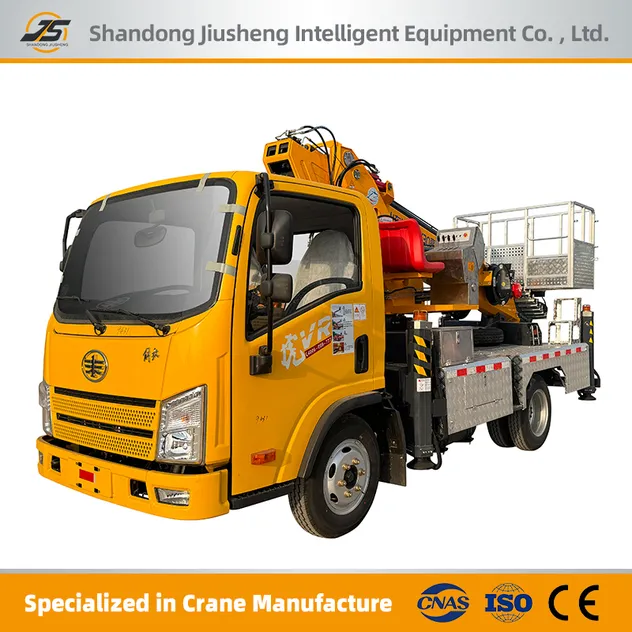

GK30
| Model | GK20 | GK25 | GK30 |
|---|---|---|---|
| Engine Mode | WP2.3Q140E62 | WP2.3Q140E62 | QuanchaiQ23-132E60 |
| Lifting Weight | 4T | 5T | 5T |
| Max Working Height | 19m | 25m | 28.3m |
| Boom Type | Six Big Arms | Seven Big Arms | Seven Big Arms |
| Platform Rated Load | 200KG | 230KG | 200KG |
| Boom Rotation | 360° | 360° | 360° |
| Platform Size | 1500x700x1100mm | 1600x700x1000mm | 1600x700x1100mm |
| Hydraulic Outriggers | 4 telescopic | 4 telescopic | 4 double-section |
