| Model NO. | STQ5257JSQD6 | Maximum Lifting Height | 20-25m |
| Maximum Lifting Weight | 5-7t | Shaft Number | 3 |
| Drive Type | 6X2 | Crane Type | Straight Arm |
| Total Weight (Kg) | 25000 | Curb Weight (Kg) | 15500 |
| Dimensions (mm) | 10600*2550*3950 | Max Speed | 88 Km/H |

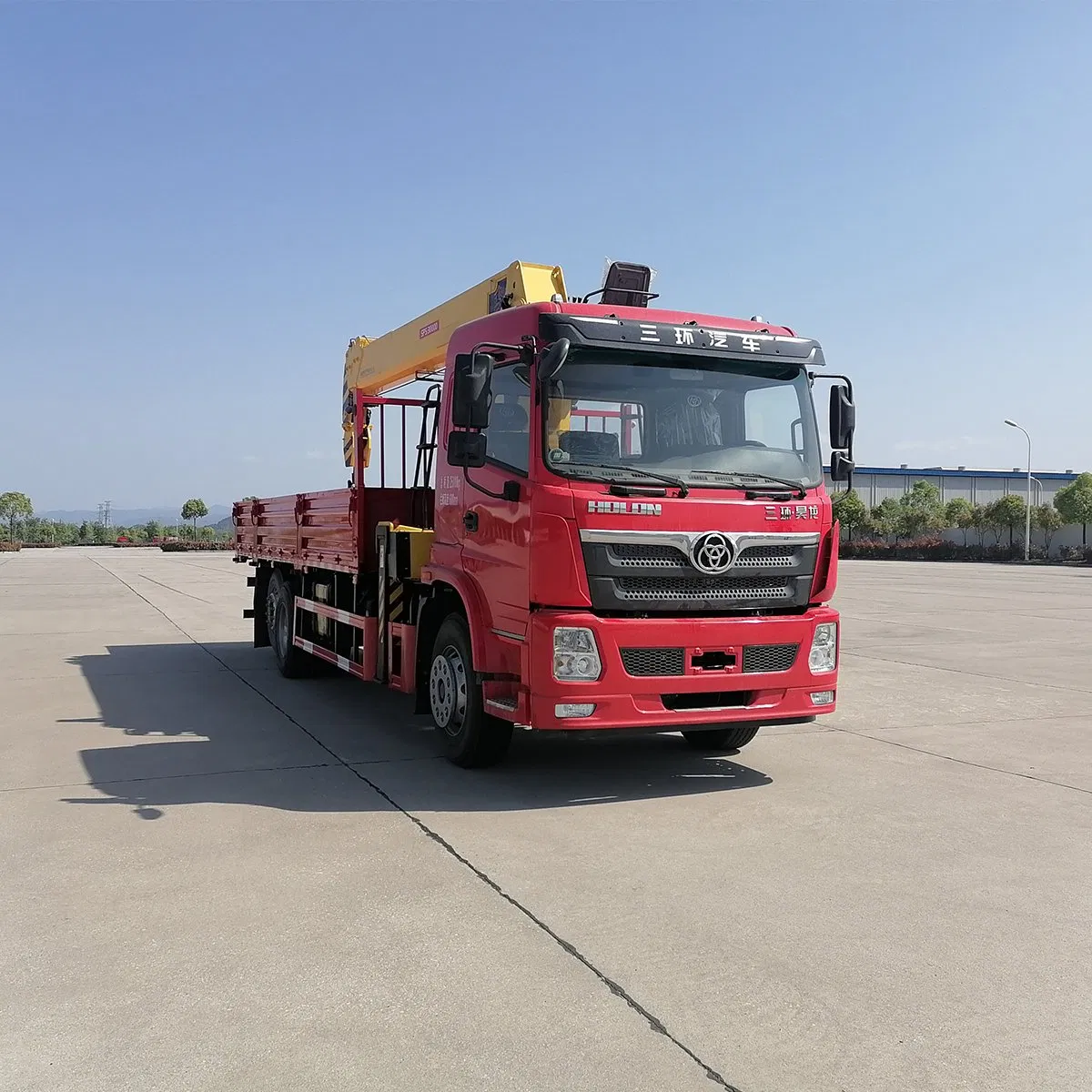

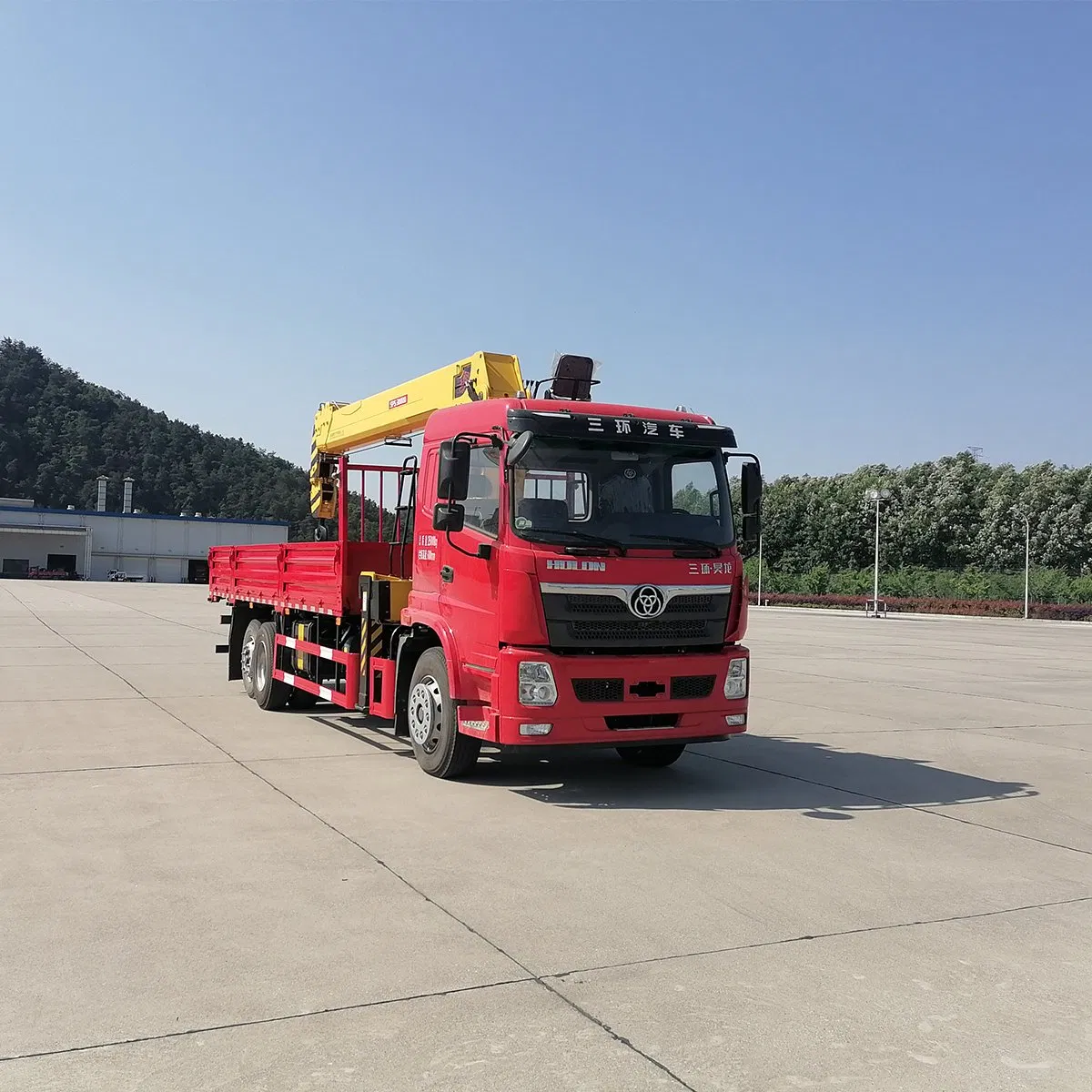

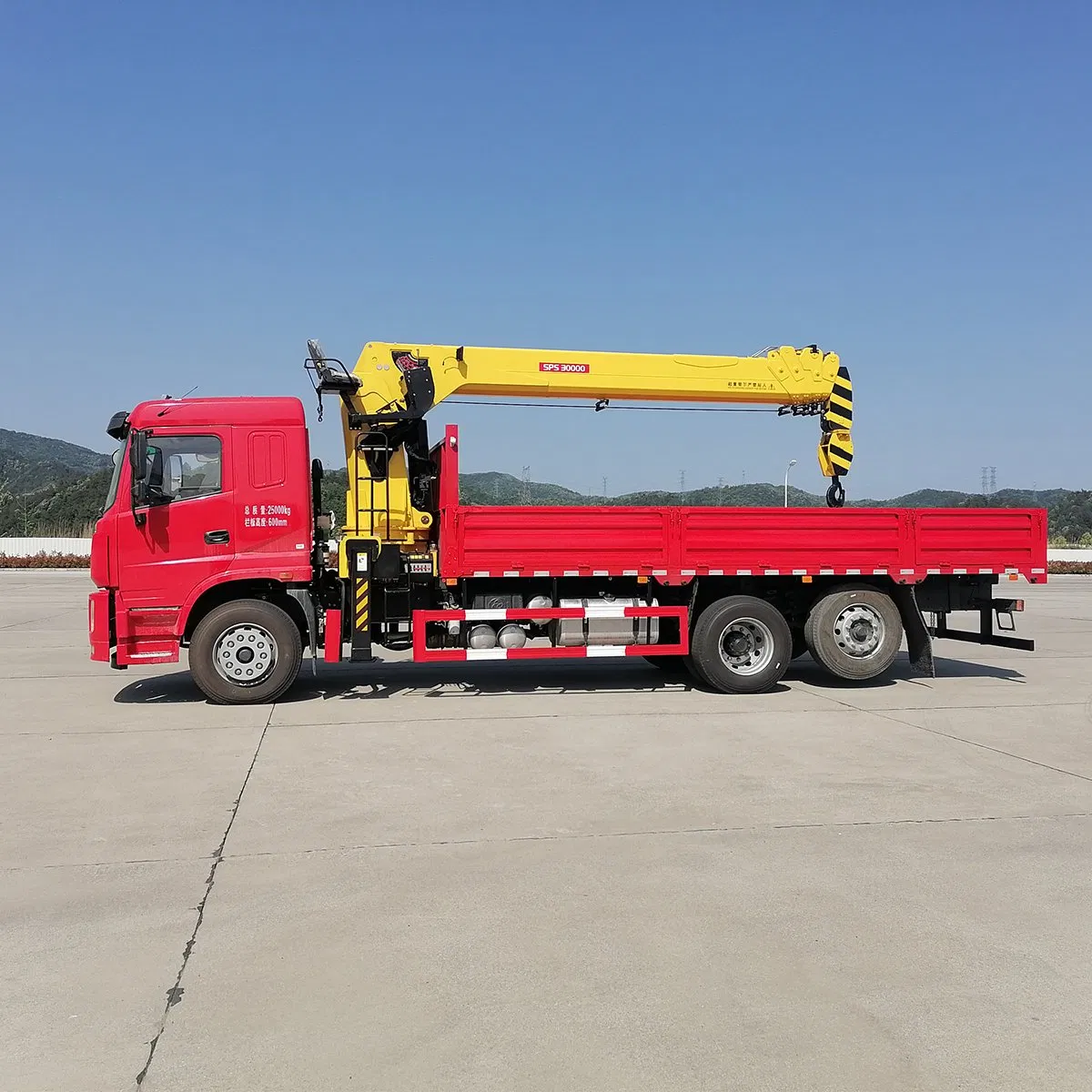

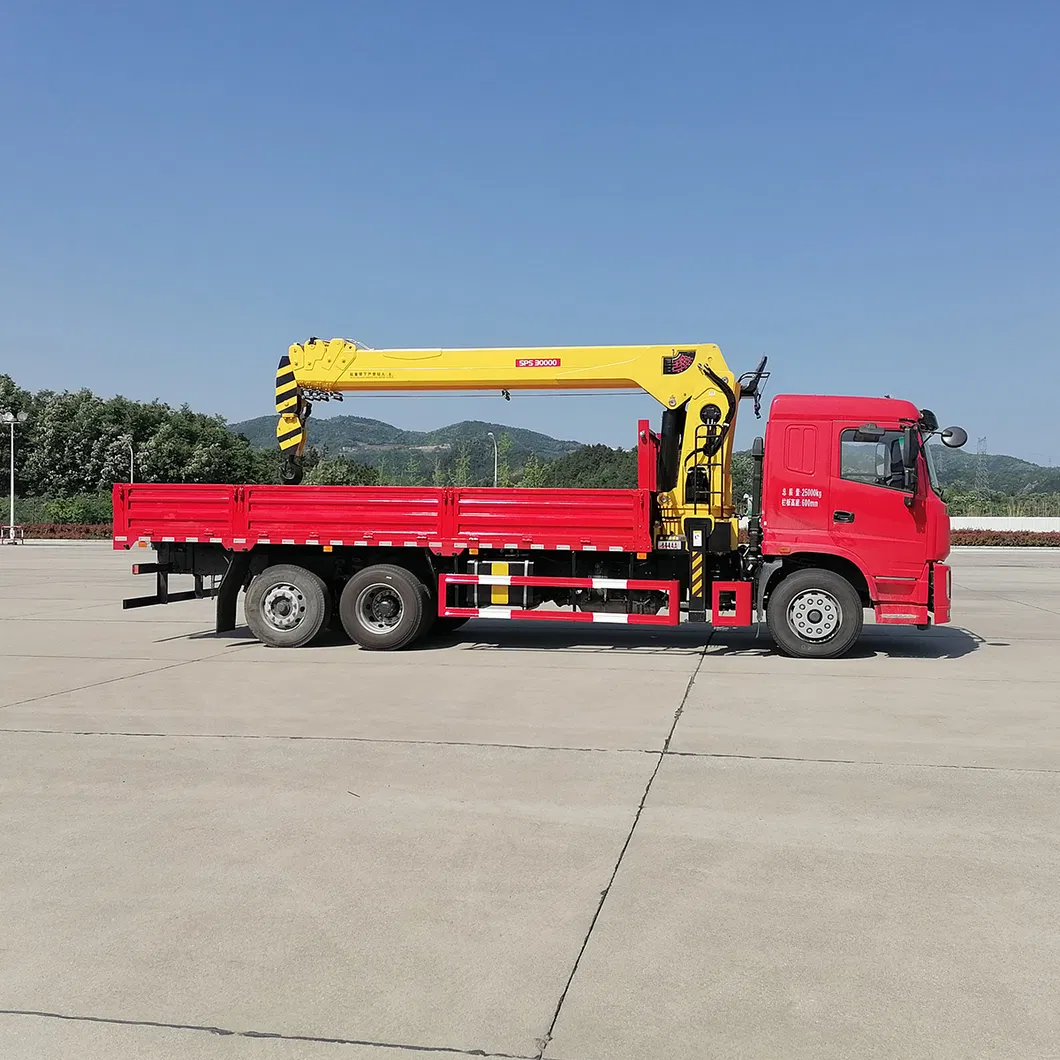

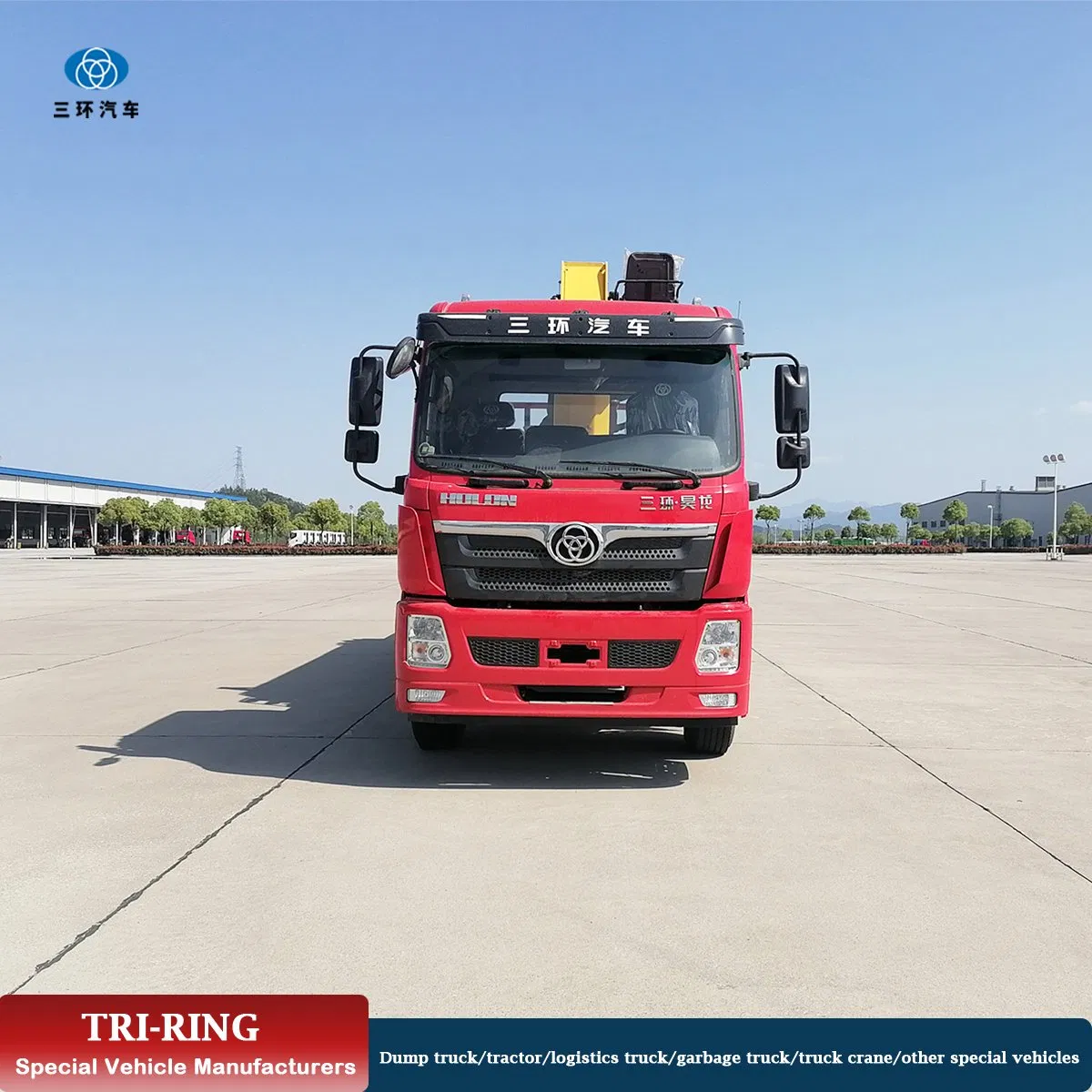

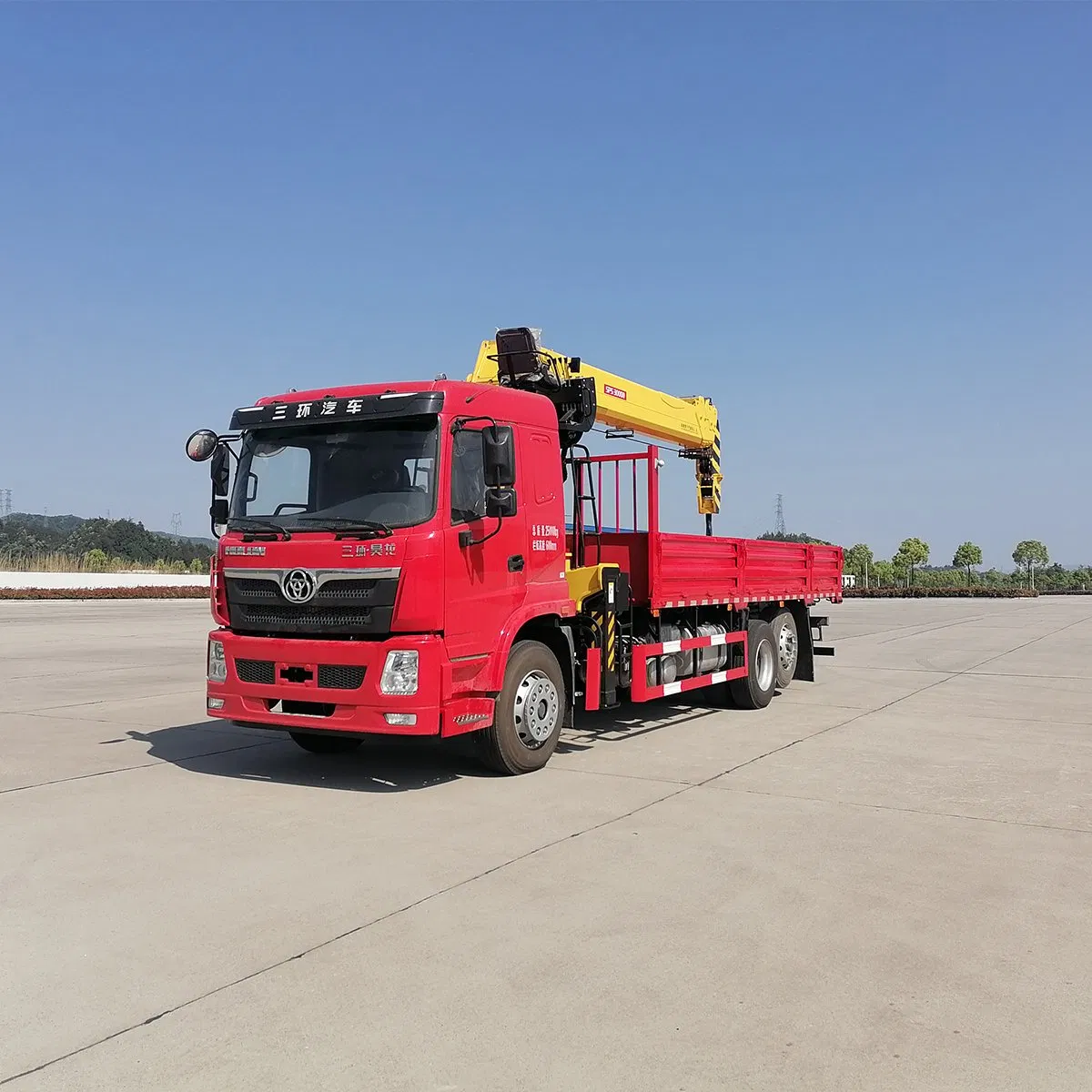

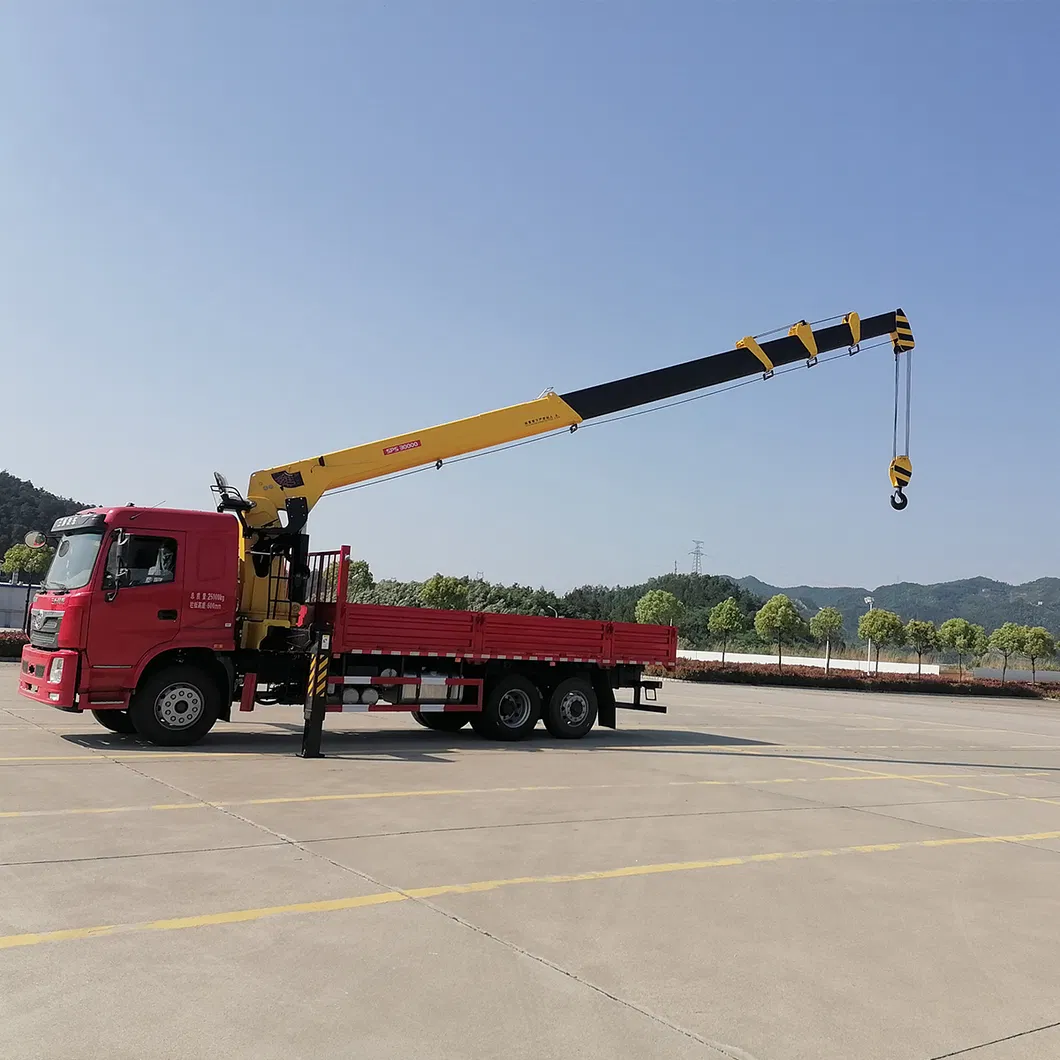

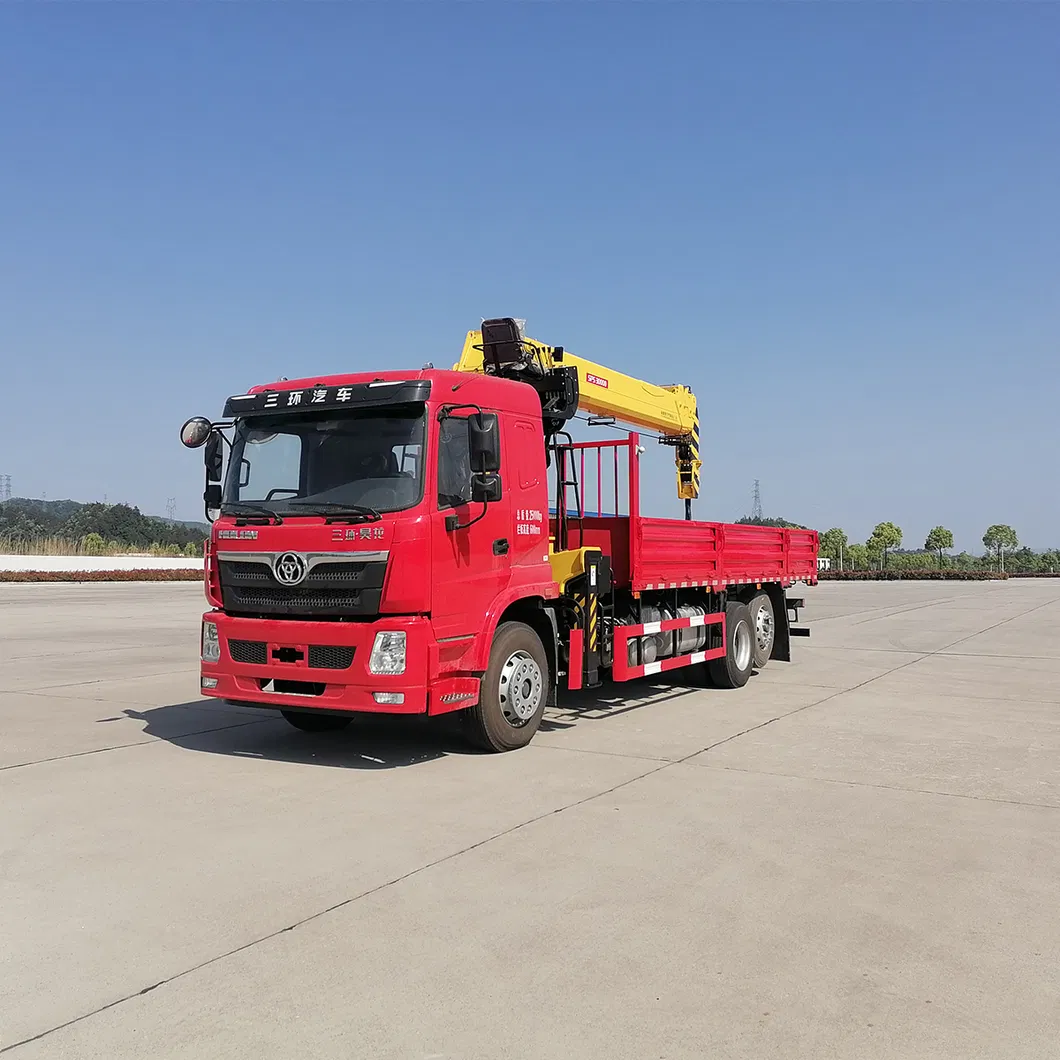

Truck Mounted Crane Transport Vehicle: A versatile solution equipped with a powerful crane mounted on a robust truck chassis. Designed for lifting and transporting heavy loads across construction, infrastructure, and logistics industries.
Efficiency & Mobility: Eliminates the need for additional loading equipment. Accesses remote sites where traditional cranes cannot operate, saving time and operational resources.
| Chassis Configuration | Upper Body Specifications | ||
|---|---|---|---|
| Engine Displacement | 4.7-6.2L | Max Lifting Mass | 7000 kg |
| Rated Power | 173-180 Kw | Rotation Angle | 360° |
| Gearbox | Manual, 10 Gears | Max Working Pressure | 26 MPa |
| Tire Type | 11.00R20-18 Steel | Cargo Box Size | 7000×2450×600 mm |
| Brake System | ABS Air Brake | Material | Q235 High-Strength Steel |

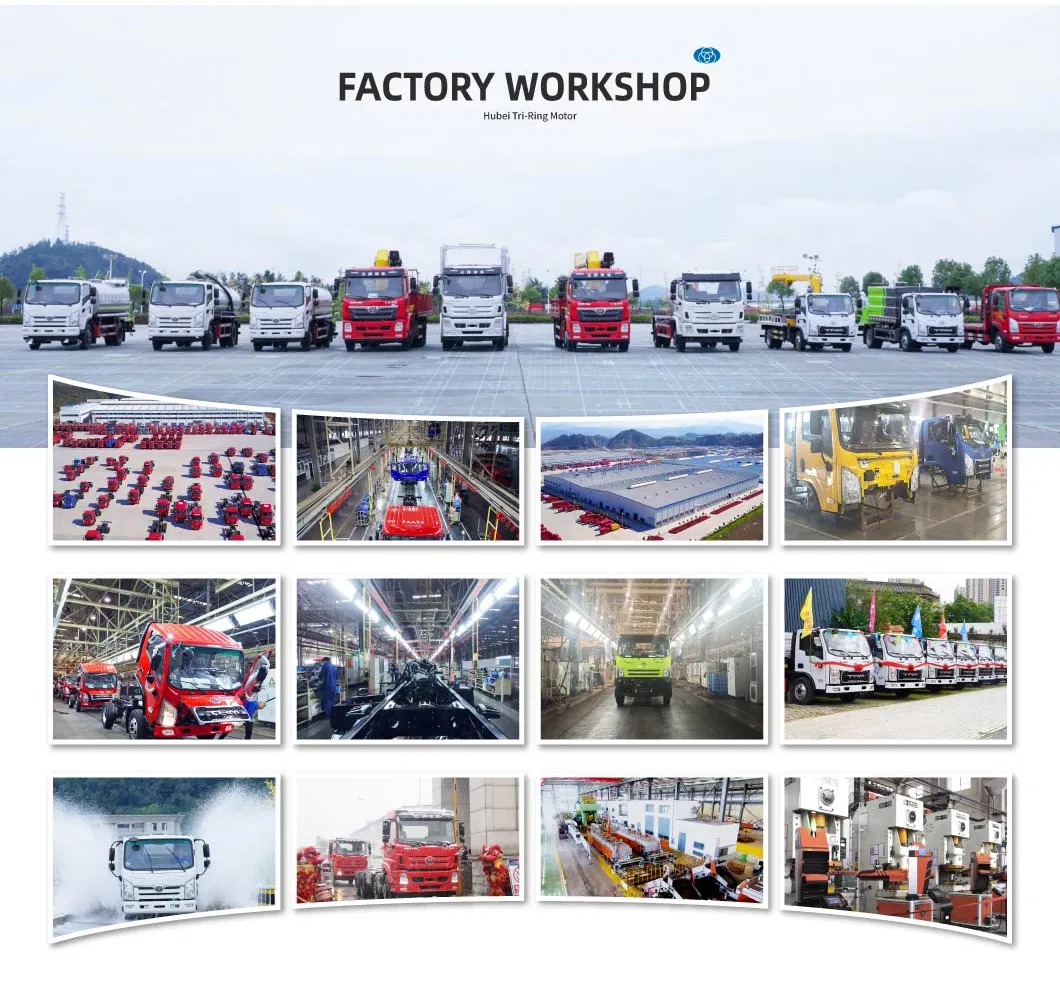

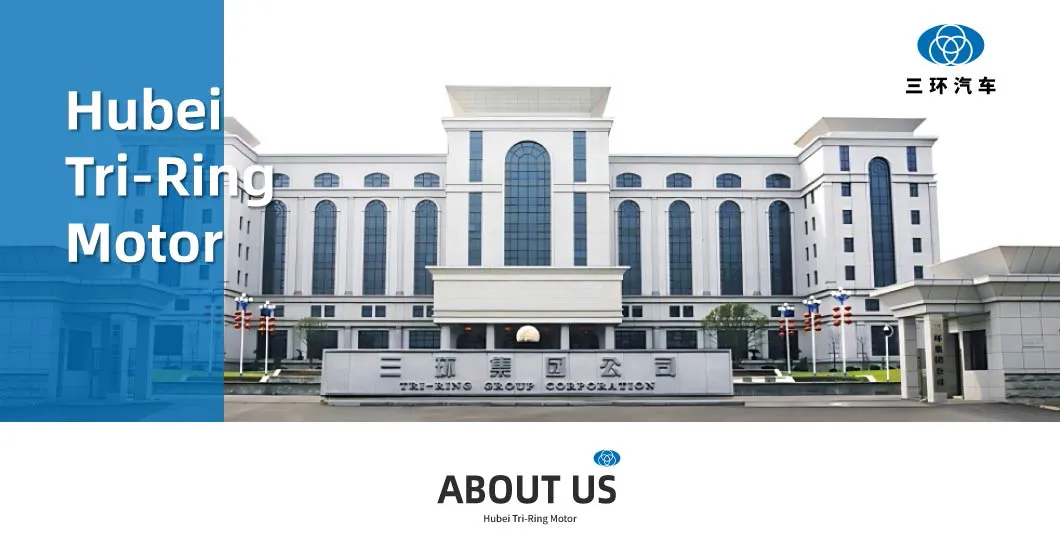

The company possesses over 40 years of experience in the R&D of special purpose vehicles. Our industrial park covers a floor area of over 700,000m² with advanced production lines for heavy, medium, and light-duty chassis.
